ZRT265-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )ZRT26#

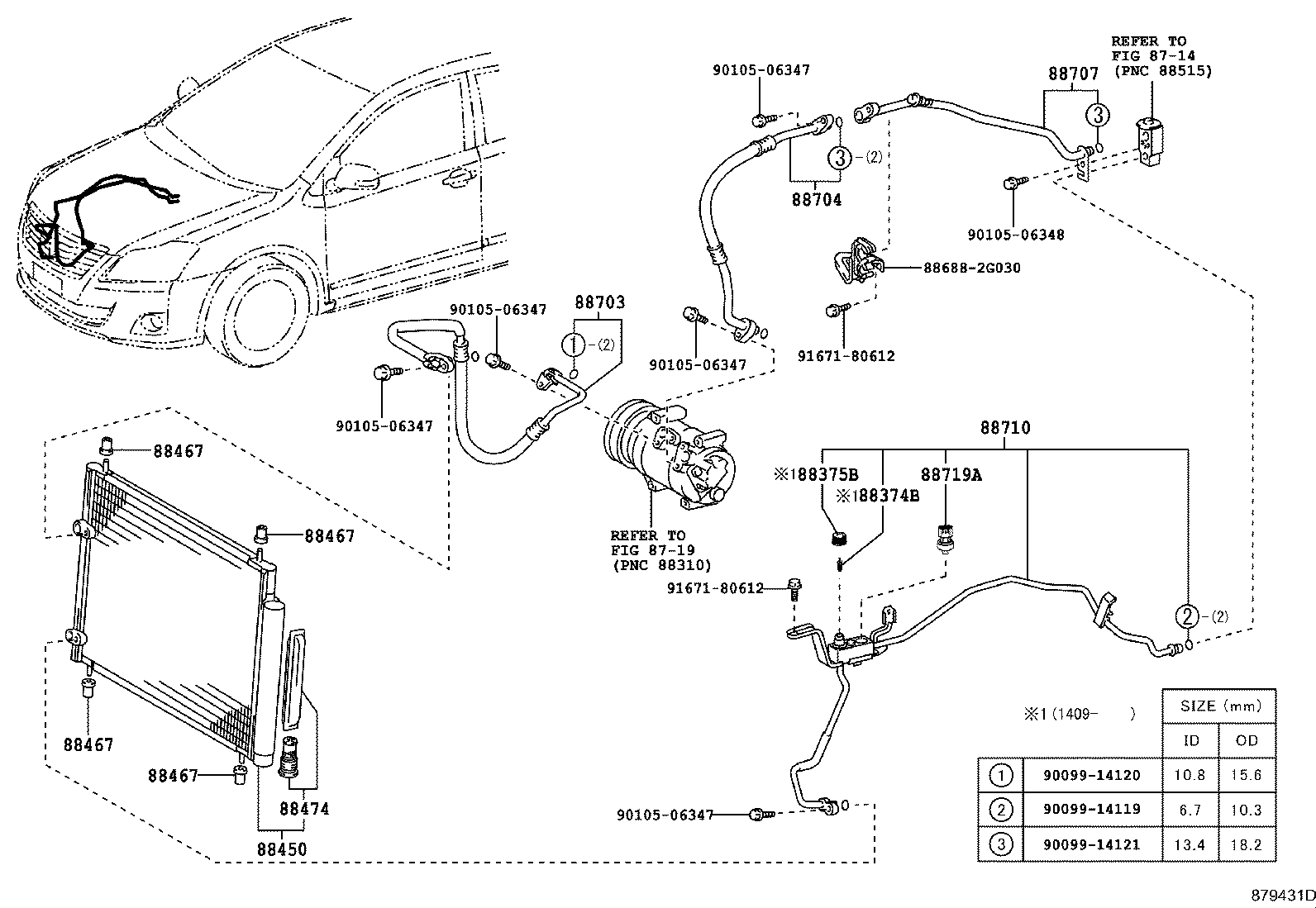

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12280 |
NZT260,ZRT26#..CBU |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NZT260,ZRT26#..CBU |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NZT260,ZRT26#..CBU |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NZT260,ZRT26#..CBU |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NZT260,ZRT26#..CBU |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
NZT260,ZRT26#..CBU |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-20330 |
ZRT26#..CBU |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-20590 |
ZRT26#..CBU |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20850 |
NZT260,ZRT26#..CBU |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 88688-2G030 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
