ZRT265-AEXEK (2007)
Toyota Premio/Allion

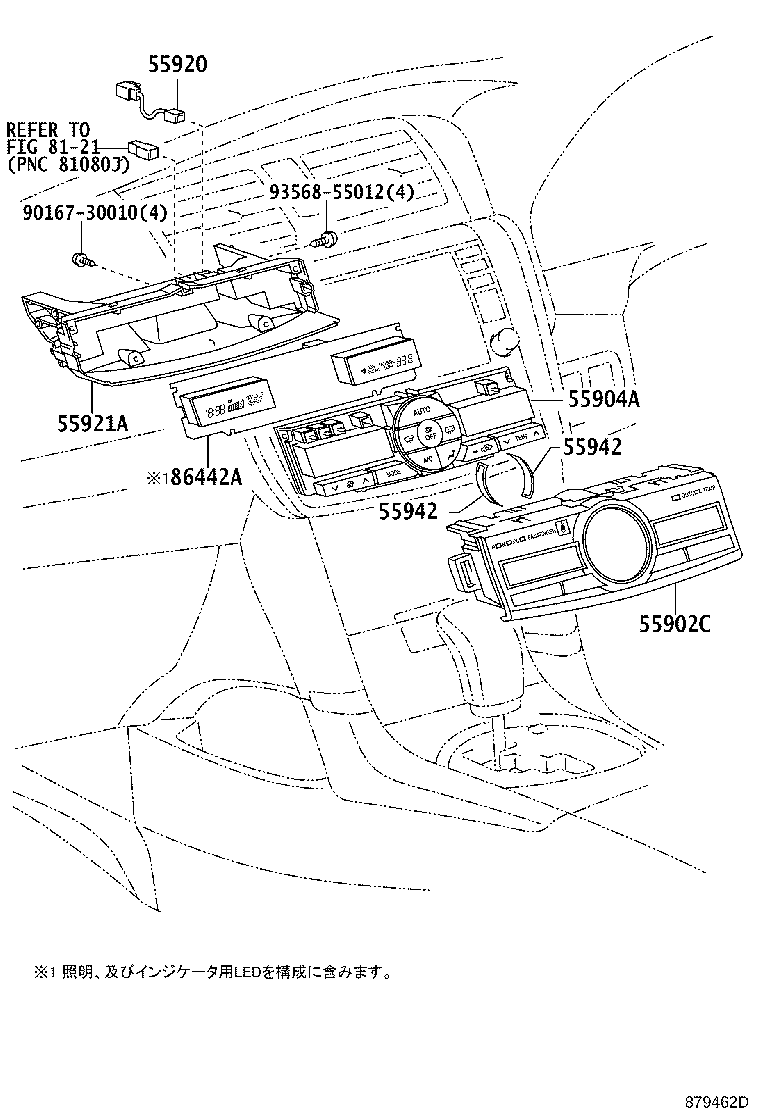

ILLUST NO. 1 OF 3(0705-1606)
ｺﾝﾄﾛｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-20200 |
NZT260,ZRT26#..CBU |
1 | ||
| 55902-20210 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55904A - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-20070 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55904-20060 |
NZT260,ZRT26#..CBU |
1 | ||
| 55920 - HARNESS ASSY, HEATER CONTROL SUB WIRE | ||||
| 55920-20020 |
NZT260,ZRT26#..CBU |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-20120 |
NZT260,ZRT26#..CBU |
1 | ||
| 55942 - GUARD, HEATER CONTROL | ||||
| 55942-20040 |
NZT260,ZRT26#..CBU |
2 | ||
| 55942 - GUARD, HEATER CONTROL | ||||
| 55942-20040 |
NZT260,ZRT26#..CBU |
2 | ||
| 86442A - BOARD, HEATER CONTROL SWITCH | ||||
| 86442-20070 |
NZT260,ZRT26#..CBU 有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ |
1 | ||
| 86442-20080 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ |
1 | ||
| 86442-20070 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置) |
1 | ||
| 86442-20070 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ&有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置) |
1 | ||
| 86442-20060 |
NZT260,ZRT26#..CBU |
1 | ||
| 86442-20070 |
NZT260,ZRT26#..CBU 有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置) |
1 | ||
| 86442-20070 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ |
1 | ||
| 86442-20070 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ&有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ |
1 | ||
| 86442-20090 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 86442-20070 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8121 | ||||

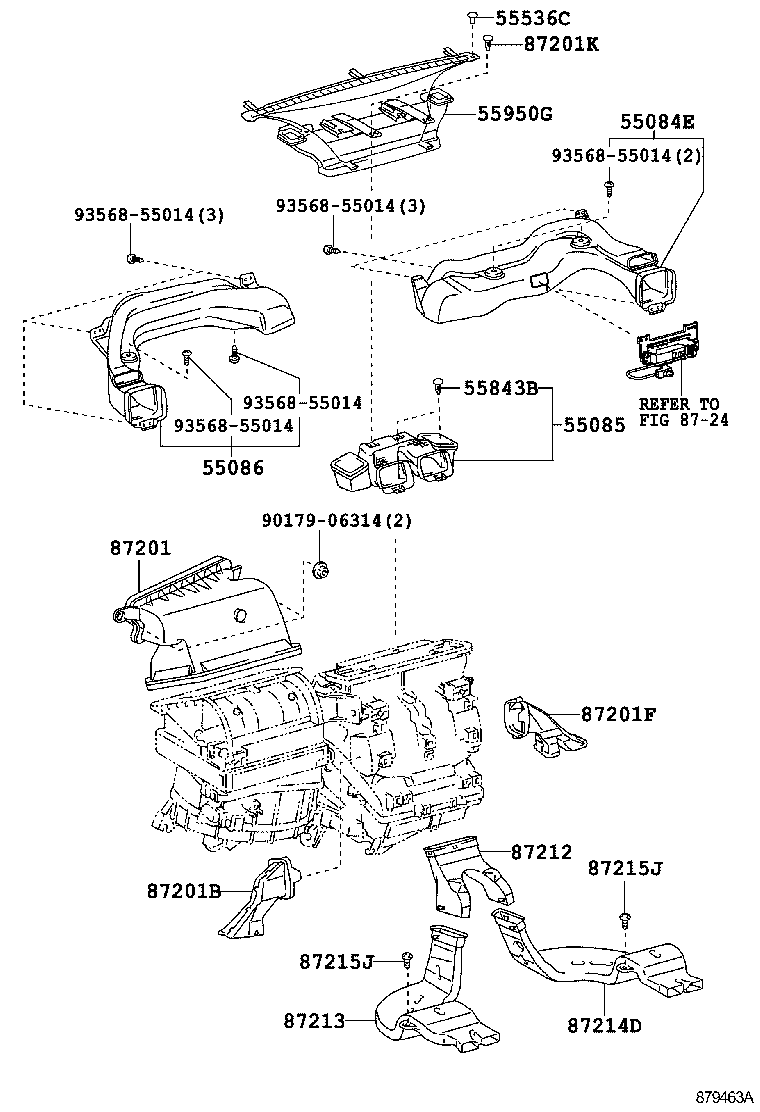

ILLUST NO. 2 OF 3(0705-1212)
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-20180 |
NZT260,ZRT26#..CBU |
1 | ||
| 55084-20190 |
NZT260,ZRT26#..CBU 有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置) |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-20090 |
NZT260,ZRT26#..CBU |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 55536C - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-60020C0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),BLACK |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C0 |
NZT260,ZRT26#..CBU BLACK |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20210 |
NZT260,ZRT26#..CBU |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-20170 |
NZT260,ZRT26#..CBU |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-12330 |
NZT260,ZRT26#..CBU |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-68020 |
NZT260,ZRT26#..CBU |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05161C0 |
NZT260,ZRT26#..CBU BLACK |
2 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-20120 |
NZT260,ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87212-20160 |
ZRT265..CBU 寒冷地仕様 |
1 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-08186C0 |
NZT260,ZRT26#..CBU 寒冷地仕様,BLACK |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-08186C0 |
NZT260,ZRT26#..CBU 寒冷地仕様,BLACK |
2 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||

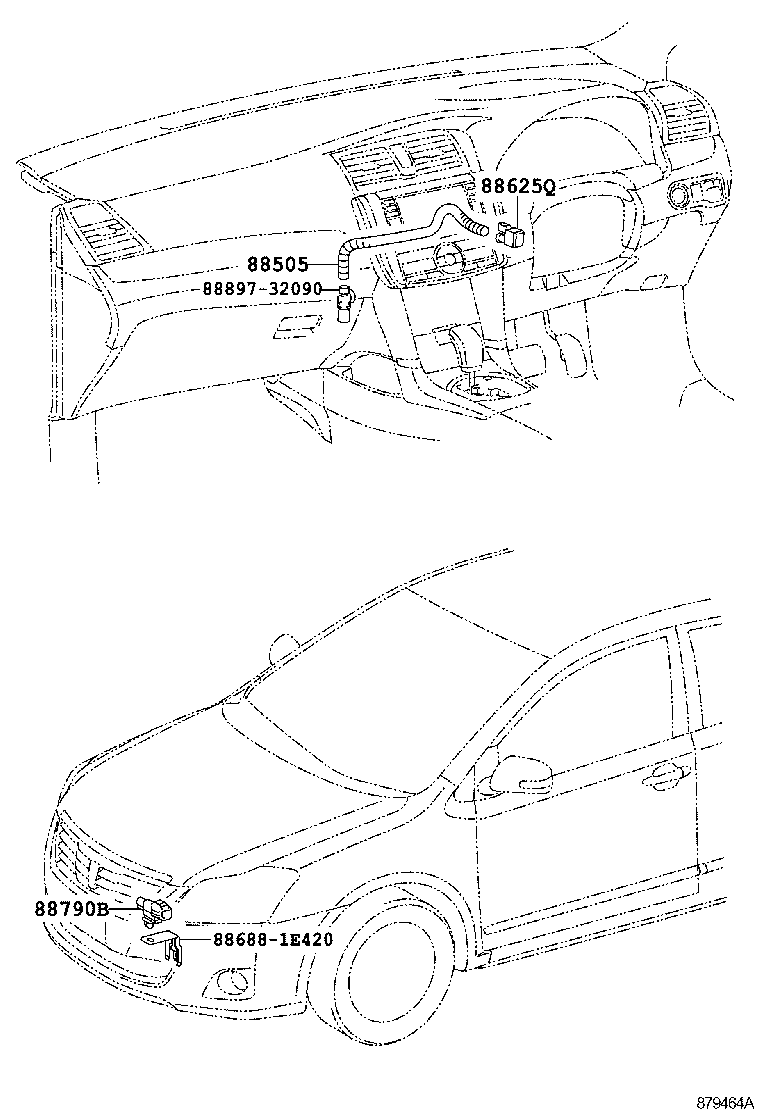

ILLUST NO. 3 OF 3(0705- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-20010 |
NZT260,ZRT26#..CBU |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NZT260,ZRT26#..CBU |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 88688-1E420 | ||||
| 88897-32090 | ||||
