ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

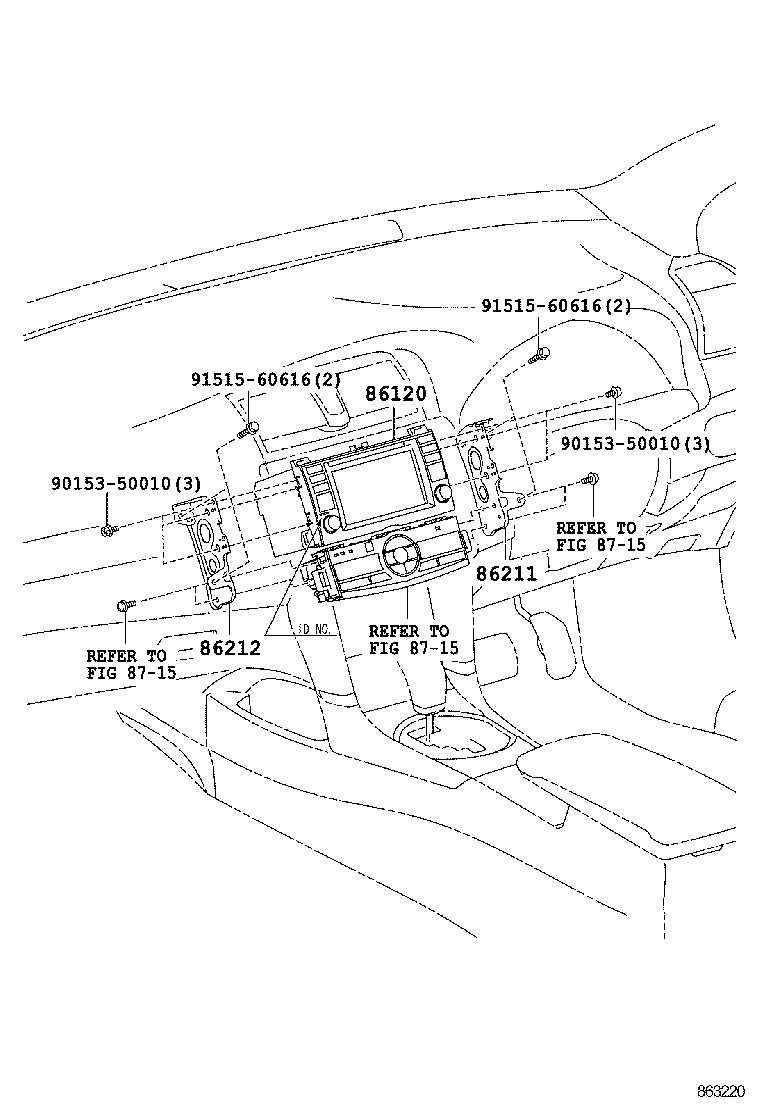

ILLUST NO. 1 OF 2(0705-1606)

Click highlighted areas on diagram

diagram 86120 86211 86212 8715 8715 8715 9015350010 9015350010 9151560616 9151560616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-20A60

ZRT26#..CBU

FUJITSU TEN,ID=26030,ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,Cc,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き)

 1
86120-20A60

ZRT260,265..CBU

FUJITSU TEN,ID=26030,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ&ﾊﾞｯNﾓﾆﾀ−無し

 1
86120-20A60

NZT260,ZRT26#..CBU

FUJITSU TEN,ID=26030,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ

 1
86120-20A60

ZRT26#..CBU

FUJITSU TEN,ID=26030,ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,Cc,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱVｽﾄ付き)

 1
86120-20A60

ZRT26#..CBU

FUJITSU TEN,ID=26030,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ&ﾊﾞｯNﾓﾆﾀ−無し

 1
86120-20A60

NZT260,ZRT26#..CBU

FUJITSU TEN,ID=26030

 1
86120-20A60

NZT260,ZRT26#..CBU

FUJITSU TEN,ID=26030,ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,Cc,MD,6ｽﾋﾟｰｶ

 1
86211 - BRACKET, RADIO, NO.1
86211-20510

NZT260,ZRT26#..CBU

 1
86212 - BRACKET, RADIO, NO.2
86212-20520

NZT260,ZRT26#..CBU

 1
Common parts
90153-50010
91515-60616
Linked diagrams
8715

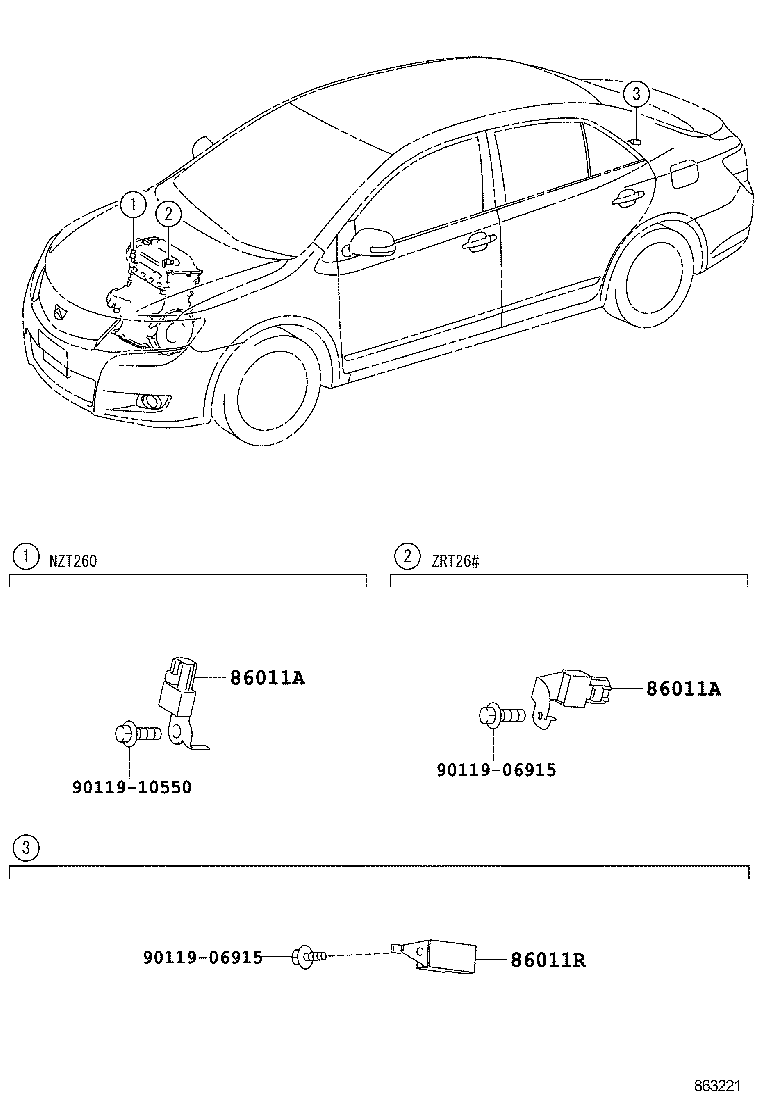

ILLUST NO. 2 OF 2(0705-1606)

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011A 86011R 9011906915 9011906915 9011910550
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04194

ZRT26#..CBU

 1
86011A - CONDENSER, RADIO SETTING
90980-04194

ZRT26#..CBU

 1
86011R - CONDENSER, RADIO SETTING
90980-04193

NZT260,ZRT26#..CBU

 1
Common parts
90119-06915
90119-10550
