ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

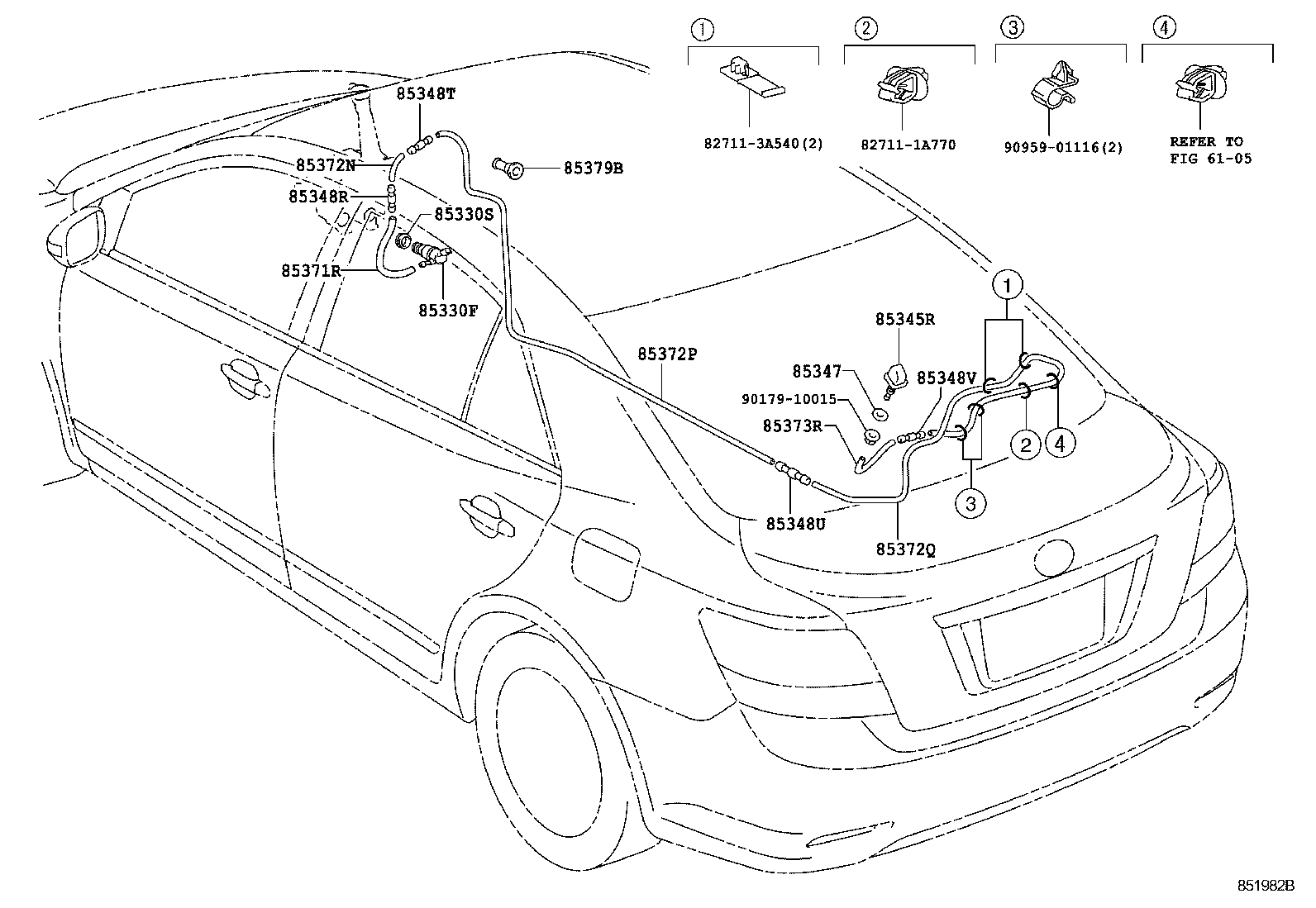

Click highlighted areas on diagram

diagram 6105 827111A770 827113A540 85330F 85330S 85345R 85347 85348R 85348T 85348U 85348V 85371R 85372N 85372P 85372Q 85373R 85379B 9017910015 9095901116
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60160

NZT260,ZRT26#..CBU

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

NZT260,ZRT26#..CBU

 1
85345R - NOZZLE, REAR WASHER
85391-22060

NZT260,ZRT26#..CBU

 1
85347 - PACKING, REAR WASHER
85347-12010

NZT260,ZRT26#..CBU

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

NZT260,ZRT26#..CBU

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

NZT260,ZRT26#..CBU

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-12520

NZT260,ZRT26#..CBU

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

NZT260,ZRT26#..CBU

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

NZT260,ZRT26#..CBU

*H,L=290

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NZT260,ZRT26#..CBU

*H,L=50

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

NZT260,ZRT26#..CBU

*H,L=2610

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33589

NZT260,ZRT26#..CBU

*H,L=2350

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

NZT260,ZRT26#..CBU

*H,L=120

 1
85379B - GROMMET, WASHER, A
85379-16180

NZT260,ZRT26#..CBU

 1
Common parts
82711-1A770
82711-3A540
90179-10015
90959-01116
Linked diagrams
6105
