ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

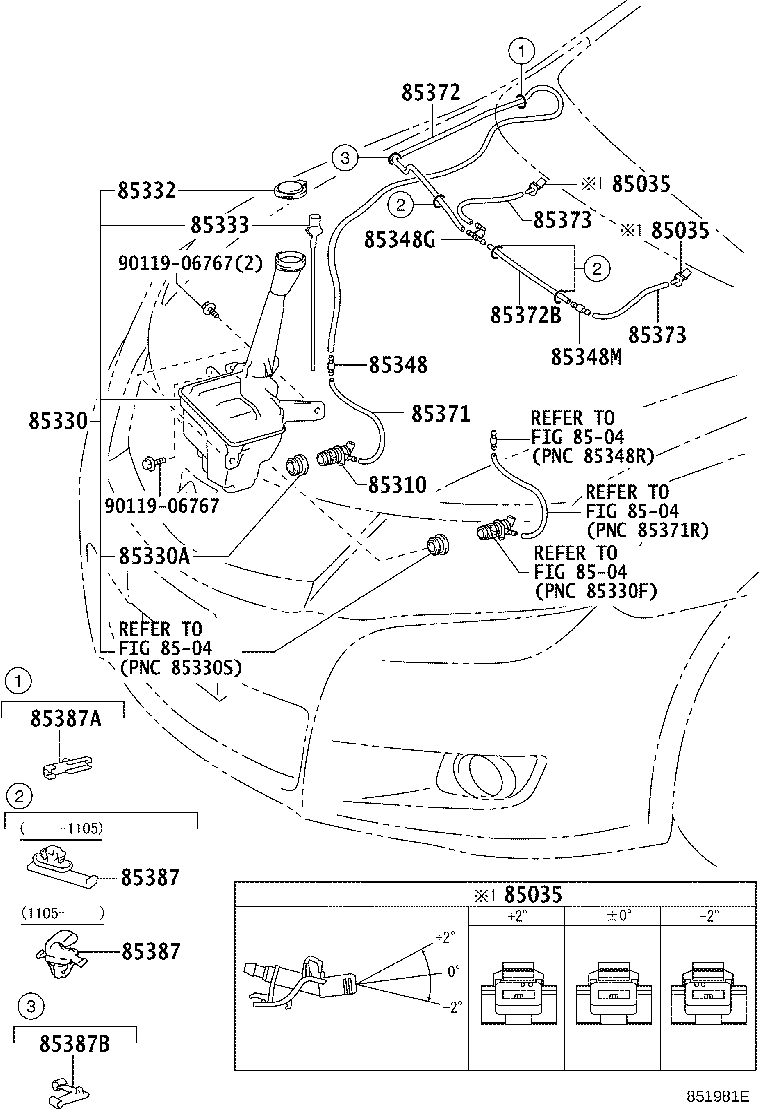

Click highlighted areas on diagram

ｱﾘ(ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ)

diagram 85035 85035 85035 8504 8504 8504 8504 85310 85330 85330A 85332 85333 85348 85348G 85348M 85371 85372 85372B 85373 85373 85387 85387 85387A 85387B 9011906767 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12300

NZT260,ZRT26#..CBU

角度 0

 2
85381-12310

NZT260,ZRT26#..CBU

角度 −2

 2
85381-12320

NZT260,ZRT26#..CBU

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12300

NZT260,ZRT26#..CBU

角度 0

 2
85381-12310

NZT260,ZRT26#..CBU

角度 −2

 2
85381-12320

NZT260,ZRT26#..CBU

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12300

NZT260,ZRT26#..CBU

角度 0

 2
85381-12310

NZT260,ZRT26#..CBU

角度 −2

 2
85381-12320

NZT260,ZRT26#..CBU

角度 +2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

NZT260,ZRT26#..CBU

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20680

NZT260,ZRT26#..CBU

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

NZT260,ZRT26#..CBU

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12740

NZT260,ZRT26#..CBU

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-30080

NZT260,ZRT26#..CBU

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

NZT260,ZRT26#..CBU

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85321-28020

NZT260,ZRT26#..CBU

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

NZT260,ZRT26#..CBU

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

NZT260,ZRT26#..CBU

*H,L=200

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

NZT260,ZRT26#..CBU

*H,L=1780

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

NZT260,ZRT26#..CBU

*H,L=480

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

NZT260,ZRT26#..CBU

*H,L=165

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

NZT260,ZRT26#..CBU

*H,L=165

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

NZT260,ZRT26#..CBU

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

NZT260,ZRT26#..CBU

 2
85387A - CLAMP, WASHER, NO.2
85387-12840

NZT260,ZRT26#..CBU

 1
85387B - CLAMP, WASHER, NO.3
85387-22410

NZT260,ZRT26#..CBU

 1
Common parts
90119-06767
Linked diagrams
8504
