ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

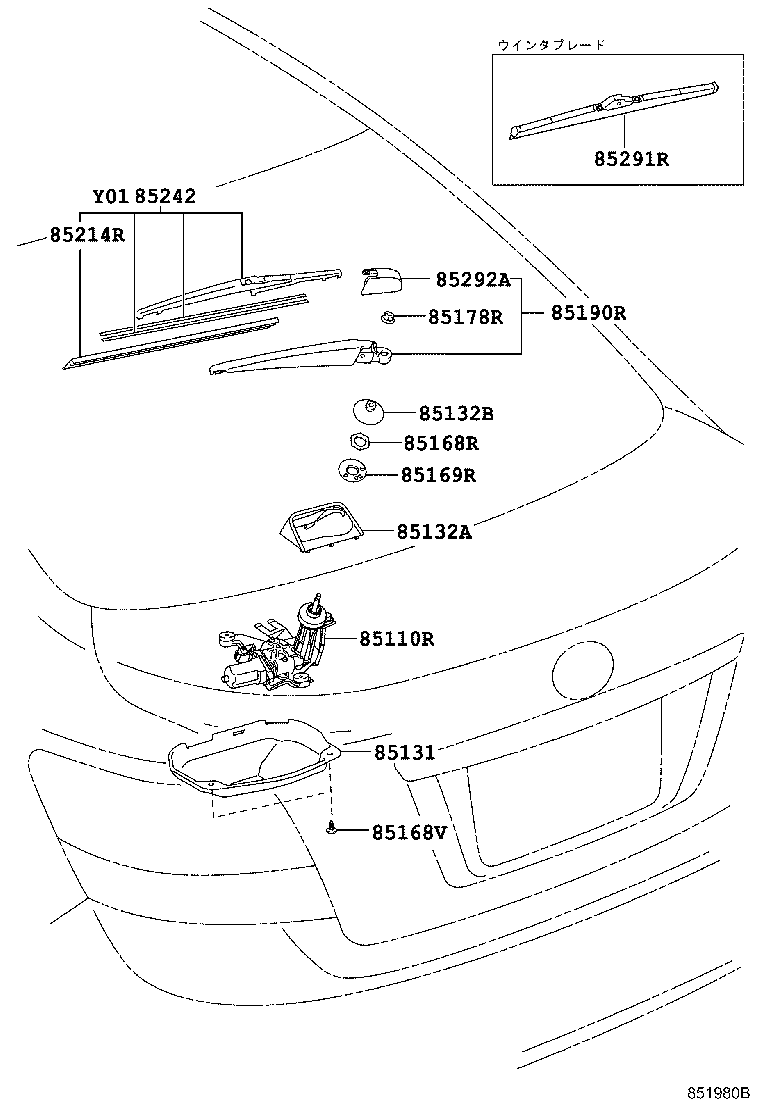

Click highlighted areas on diagram

diagram 85110R 85131 85132A 85132B 85168R 85168V 85169R 85178R 85190R 85214R 85242 85291R 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-20800

NZT260,ZRT26#..CBU

 1
85130-20801

NZT260,ZRT26#..CBU

 1
85131 - COVER, REAR WIPER MOTOR
85131-20750

NZT260,ZRT26#..CBU

 1
85132A - COVER, REAR WIPER SHAFT
85132-20770B0

NZT260,ZRT26#..CBU

DK.GRAY,TRIM1#

 1
85132-20770E0

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 1
85132B - CAP, REAR WIPER SHAFT
85132-20761

NZT260,ZRT26#..CBU

 1
85132-20760

NZT260,ZRT26#..CBU

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

NZT260,ZRT26#..CBU

 1
85168V - CLIP, WIPER LINK COVER
44753-50130

NZT260,ZRT26#..CBU

 2
90467-08186C0

NZT260,ZRT26#..CBU

BLACK

 2
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-20720

NZT260,ZRT26#..CBU

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

NZT260,ZRT26#..CBU

 1
85190R - ARM ASSY, REAR WIPER
85241-48040

NZT260,ZRT26#..CBU

 1
85214R - RUBBER, REAR WIPER
85214-30280

NZT260,ZRT26#..CBU

 1
85242 - BLADE, RR WIPER
85242-13060

NZT260,ZRT26#..CBU

 1
85291R - BLADE,REAR WIPER, WINTER
85291-53040

NZT260,ZRT26#..CBU

ｳｲﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-28030

NZT260,ZRT26#..CBU

 1
