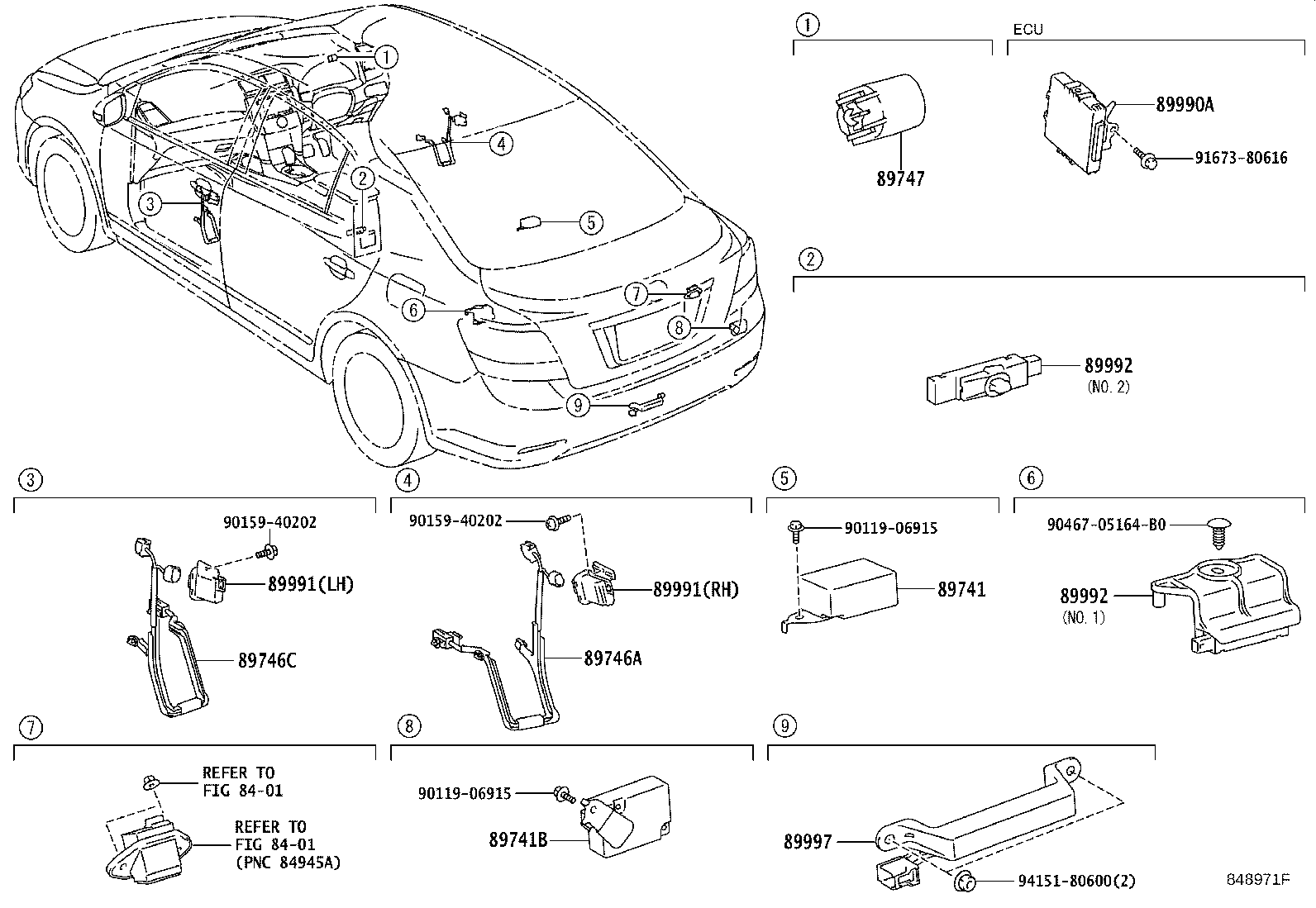

Toyota Premio/allion ZRT265 WIRELESS DOOR LOCK

Part #	Description	Period	Qty

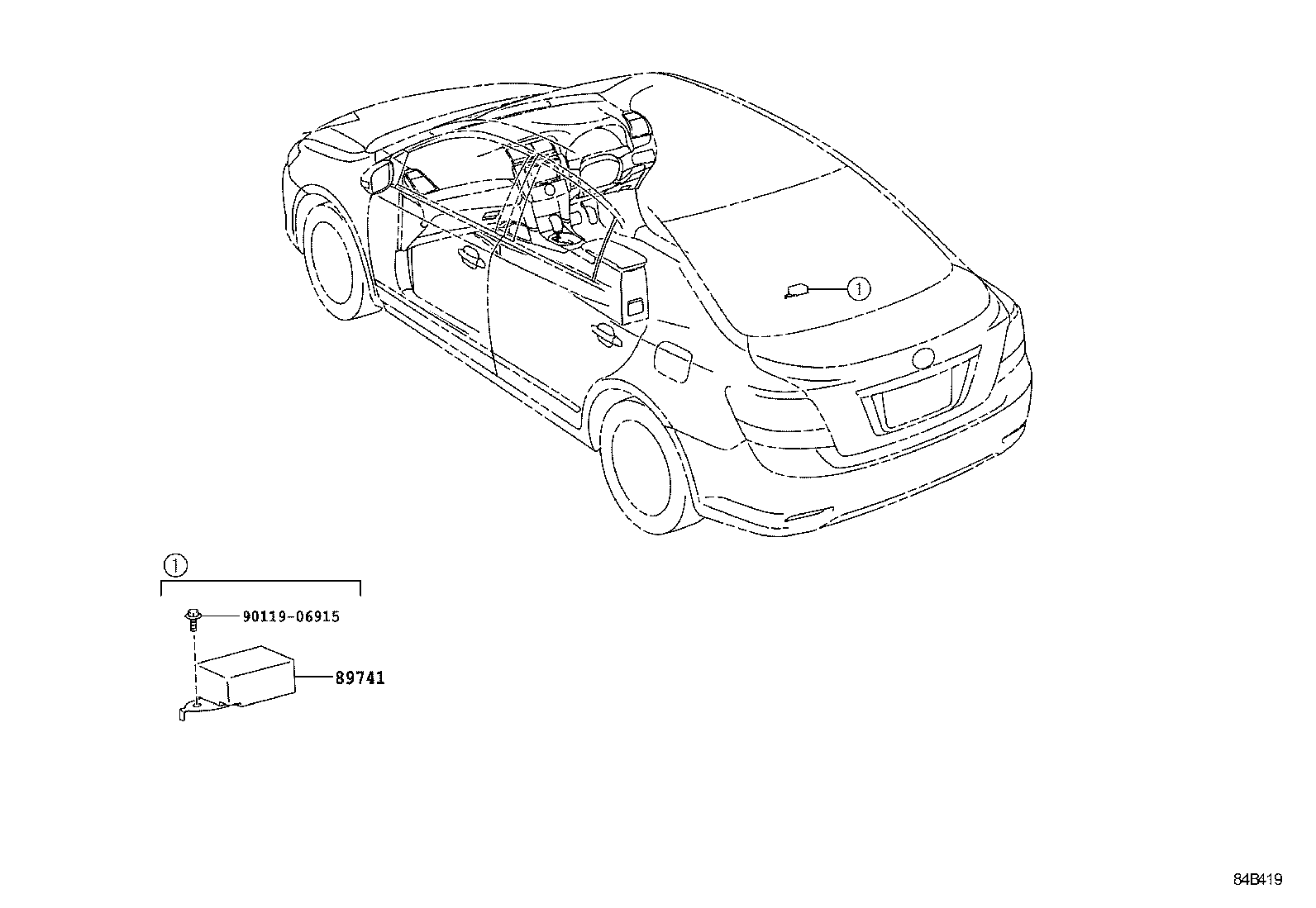

89741 - RECEIVER, DOOR CONTROL
89740-20040	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
89741-20220	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	12/2007 - 04/2010	1
89741B - RECEIVER, DOOR CONTROL, NO.2
89740-20030	NZT260,ZRT26#..CBU	05/2007 - 12/2009	1
89740-20030	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	05/2007 - 12/2009	1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-20010	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-20020	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
89747-52010	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	05/2007 - 04/2010	1
89990A - COMPUTER ASSY, SMART KEY
89990-20020	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	05/2007 - 04/2010	1
89990-20020	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30040	NZT260,ZRT26#..CBU 右側	05/2007 - 04/2010	1
89991-30050	NZT260,ZRT26#..CBU 左側	05/2007 - 04/2010	1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30040	NZT260,ZRT26#..CBU 右側	05/2007 - 04/2010	1
89991-30050	NZT260,ZRT26#..CBU 左側	05/2007 - 04/2010	1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-30090	NZT260,ZRT26#..CBU NO.2	05/2007 - 04/2010	1
89992-20010	NZT260,ZRT26#..CBU NO.1	05/2007 - 04/2010	1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-30090	NZT260,ZRT26#..CBU NO.2	05/2007 - 04/2010	1
89992-20010	NZT260,ZRT26#..CBU NO.1	05/2007 - 04/2010	1
89997 - ANTENNA, ELECTRICAL KEY
89997-52010	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
Common parts
90119-06915
90159-40202
90467-05164B0
91673-80616
94151-80600
Linked diagrams
8401

ZRT265-AEXEK (2007)

(0705- )

(0712- )
