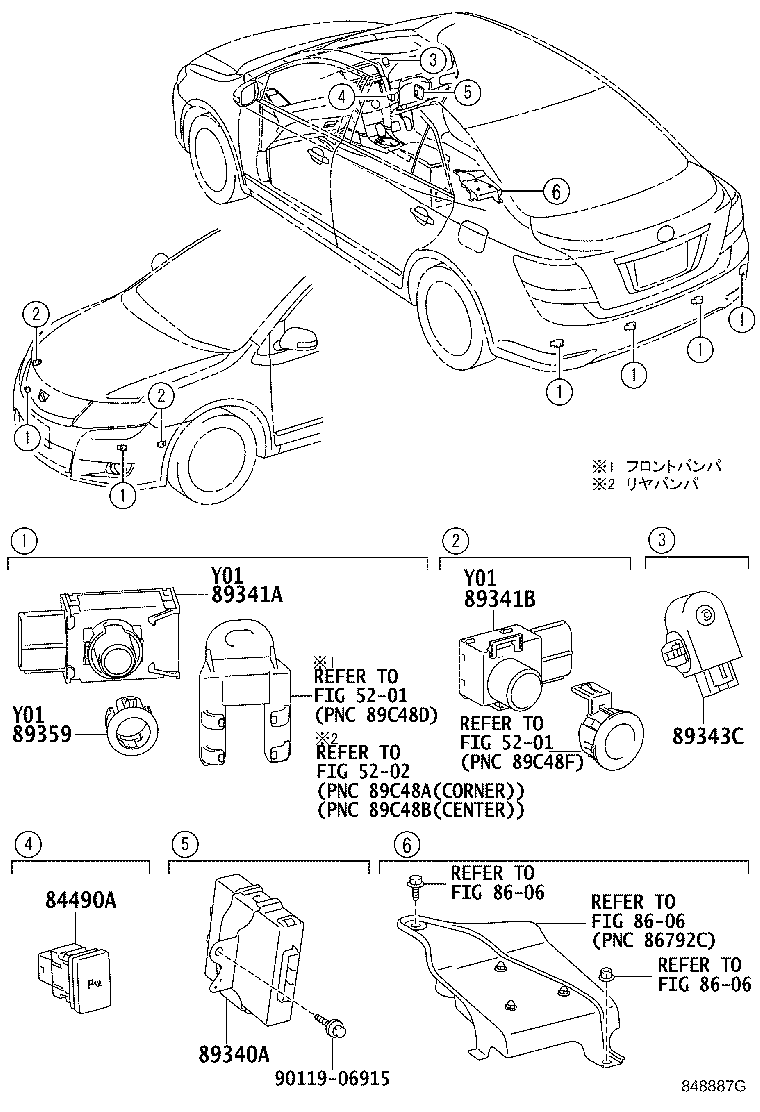

ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705-1606)ZRT261 ; (0705-1606)ZRT260,265..HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR | ||||
| 84490-20070 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-20080 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-33110A2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
6 | ||
| 89341-33110D3 |
ZRT26#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
6 | ||
| 89341-33110A3 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
6 | ||
| 89341-33110H1 |
ZRT26#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),TURQUOISE M.M.,776 |
6 | ||
| 89341-33110C2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
6 | ||
| 89341-33110B3 |
ZRT260,265..PRM..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
6 | ||
| 89341-33110J2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
6 | ||
| 89341-33110D2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISHRED MC.,3R0 |
6 | ||
| 89341-33110B2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
6 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-12090D0 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
2 | ||
| 89341-12090J1 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
2 | ||
| 89341-12090B0 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
2 | ||
| 89341-12090C0 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
2 | ||
| 89341-12090A0 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
2 | ||
| 89341-12090A1 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
2 | ||
| 89341-12090D1 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISH RED MC.,3R0 |
2 | ||
| 89341-12090B2 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-72010 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 89359 - BEZEL, ULTRASONIC SENSOR | ||||
| 89348-33010D3 |
ZRT26#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
6 | ||
| 89348-33010H1 |
ZRT26#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),TURQUOISE M.M.,776 |
6 | ||
| 89348-33010B2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
6 | ||
| 89348-33010A2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
6 | ||
| 89348-33010A3 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
6 | ||
| 89348-33010D2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISHRED MC.,3R0 |
6 | ||
| 89348-33010C2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
6 | ||
| 89348-33010B3 |
ZRT260,265..PRM..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
6 | ||
| 89348-33010J2 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
6 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
| 8606 | ||||
