ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1606)ZRT265

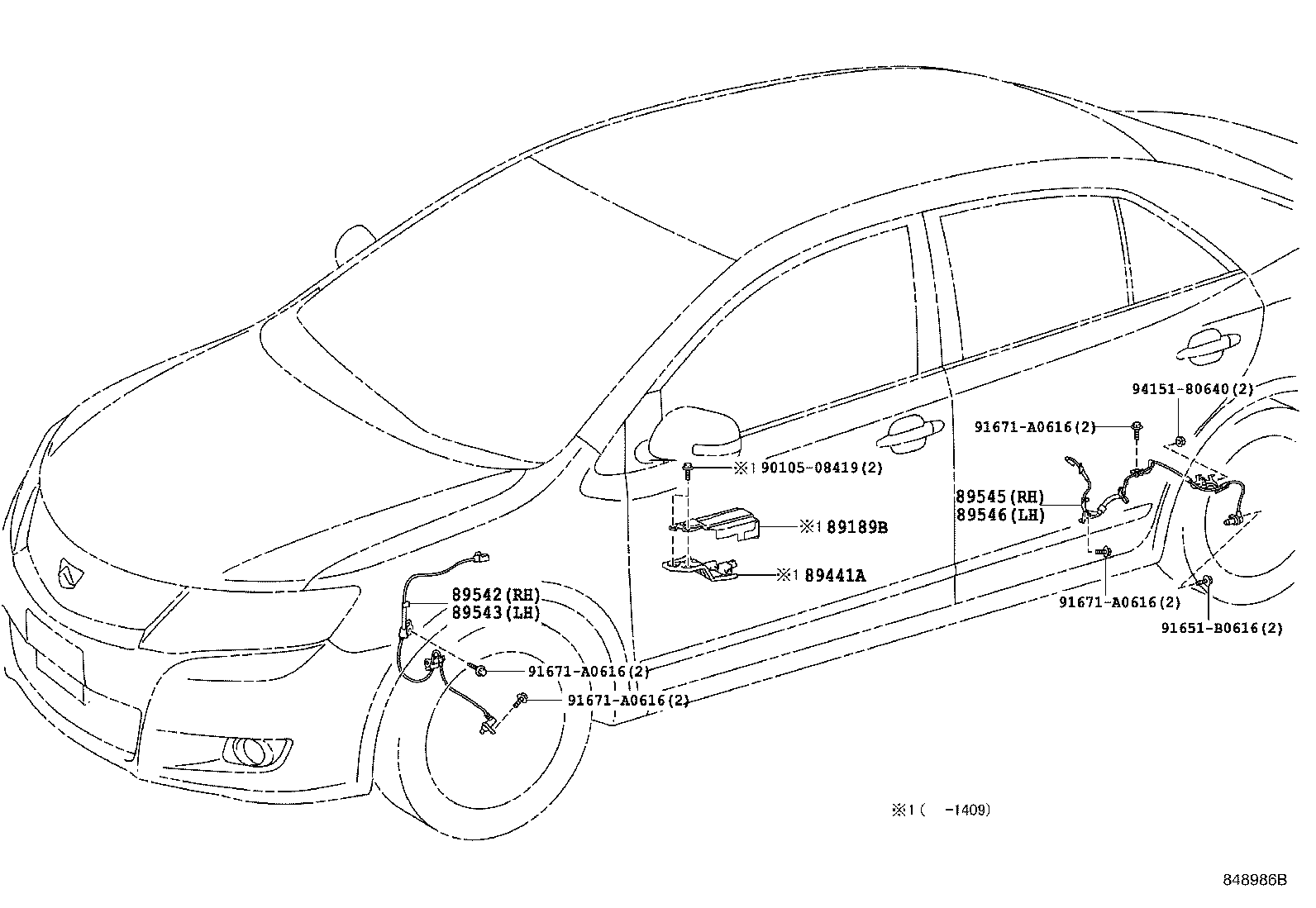

Click highlighted areas on diagram

diagram 89189B 89441A 89542 89543 89545 89546 9010508419 91651B0616 91671A0616 91671A0616 91671A0616 91671A0616 9415180640
Part # Description Qty Price
89189B - BRACKET, YAWRATE SENSOR
89189-20080

NZT260,ZRT26#..CBU

 1
89441A - SENSOR, DECELERATION
89440-20070

NZT260,ZRT26#..CBU

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20180

NZT260,ZRT26#..CBU

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20180

NZT260,ZRT26#..CBU

 1
89545 - SENSOR, SPEED, REAR RH
89545-20170

ZRT265..CBU

 1
89546 - SENSOR, SPEED, REAR LH
89546-20180

ZRT265..CBU

 1
Common parts
90105-08419
91651-B0616
91671-A0616
94151-80640
