ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1212)NZT260 ; (0705- )ZRT260,265

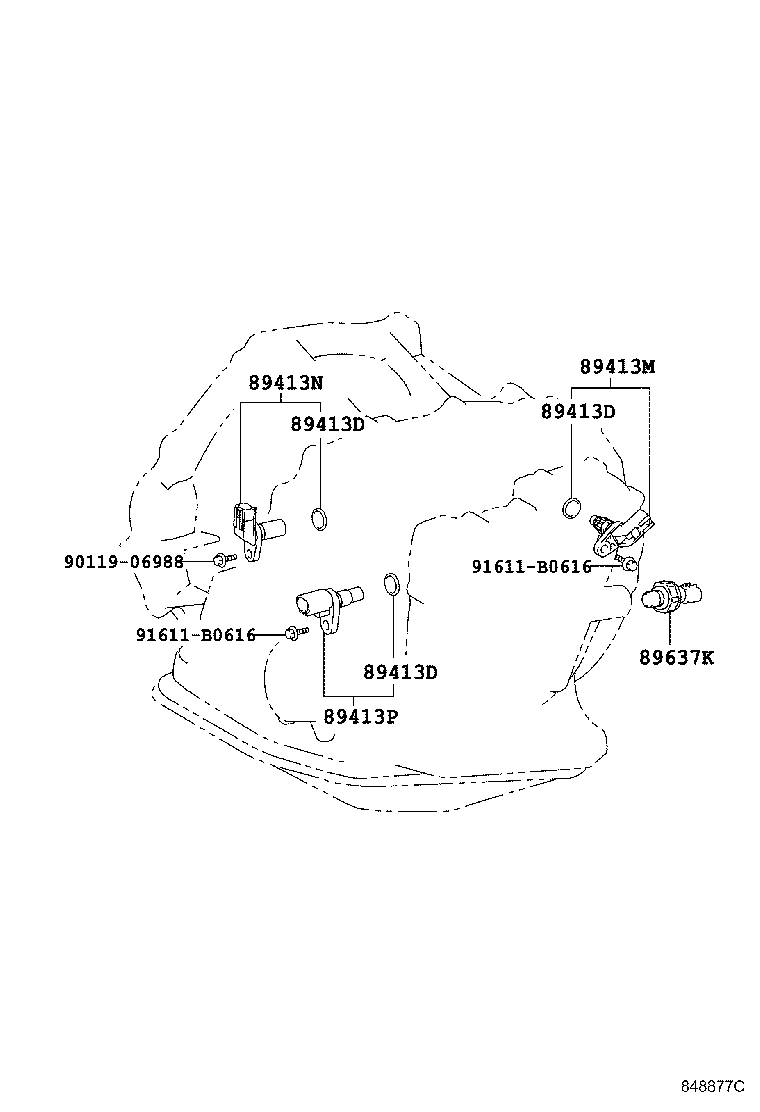

Click highlighted areas on diagram

K310,K311,K311F

diagram 89413D 89413D 89413D 89413M 89413N 89413P 89637K 9011906988 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZT260,ZRT26#..CBU

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZT260,ZRT26#..CBU

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZT260,ZRT26#..CBU

 3
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

NZT260,ZRT260,265..CBU

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-12020

NZT260,ZRT260,265..CBU

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

NZT260,ZRT26#..CBU

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

NZT260,ZRT26#..CBU

 1
Common parts
90119-06988
91611-B0616
