ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

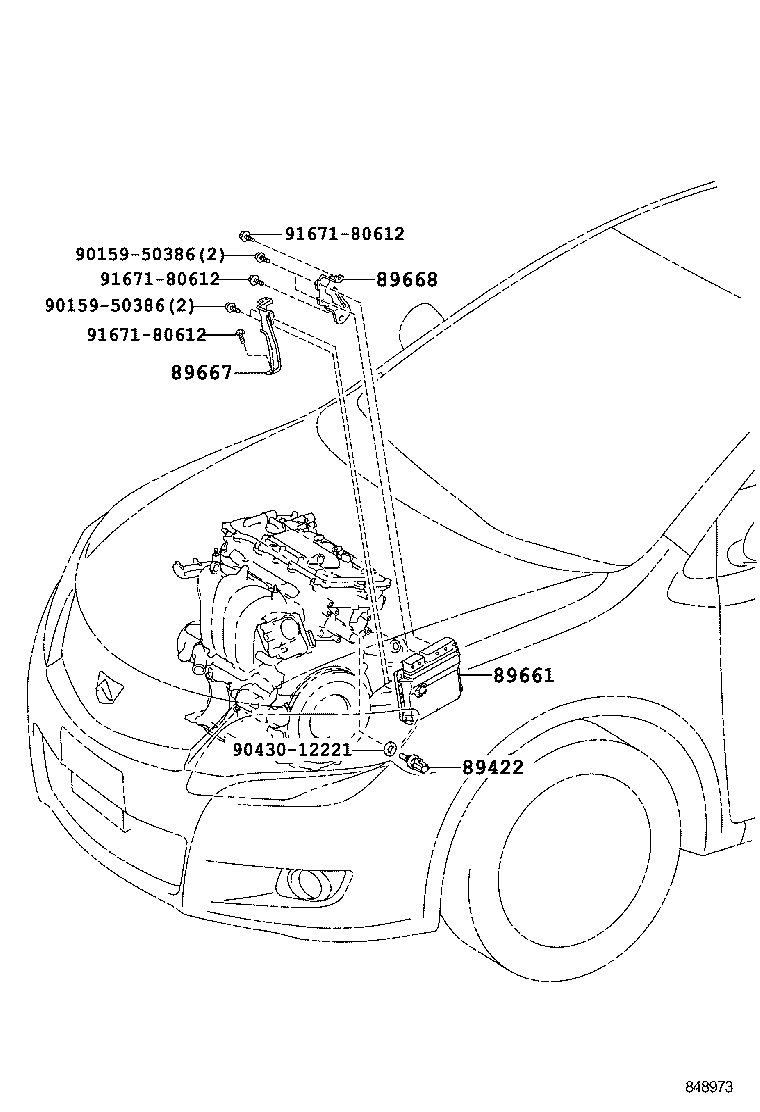

(0705-1004)ZRT260,265

Click highlighted areas on diagram

diagram 89422 89661 89667 89668 9015950386 9015950386 9043012221 9167180612 9167180612 9167180612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NZT260,ZRT26#..CBU

 1
89661 - COMPUTER, ENGINE CONTROL
89661-20B51

ZRT265..CBU

FUJITSU TEN

 1
89661-20B52

ZRT265..CBU

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12250

NZT260,ZRT26#..CBU

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12170

NZT260,ZRT26#..CBU

 1
Common parts
90159-50386
90430-12221
91671-80612

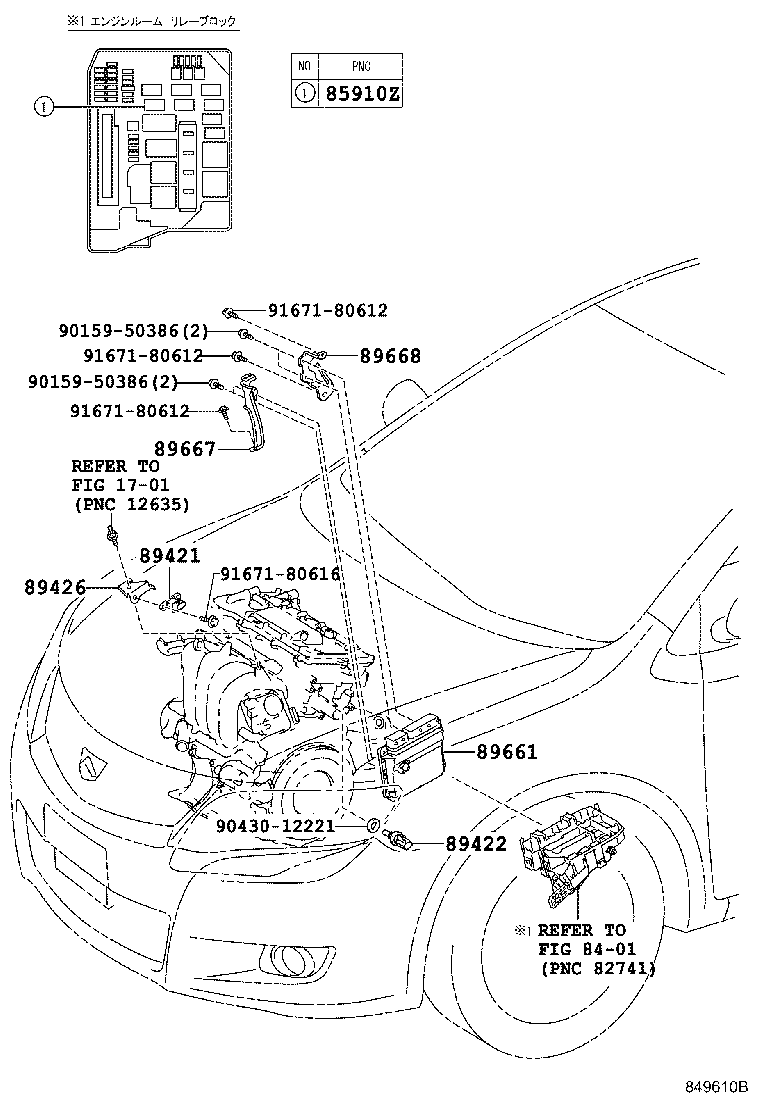

(0712-1004)ZRT261 ; (1004-1212)ZRT26#

Click highlighted areas on diagram

diagram 1701 8401 85910Z 89421 89422 89426 89661 89667 89668 9015950386 9015950386 9043012221 9167180612 9167180612 9167180612 9167180616
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NZT260,ZRT26#..CBU

 1
89661 - COMPUTER, ENGINE CONTROL
89661-20B51

ZRT265..CBU

FUJITSU TEN

 1
89661-20B52

ZRT265..CBU

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12250

NZT260,ZRT26#..CBU

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12170

NZT260,ZRT26#..CBU

 1
Common parts
90159-50386
90430-12221
91671-80612
91671-80616
Linked diagrams
1701
8401
