ZRT265-AEXEK (2007)
Toyota Premio/Allion

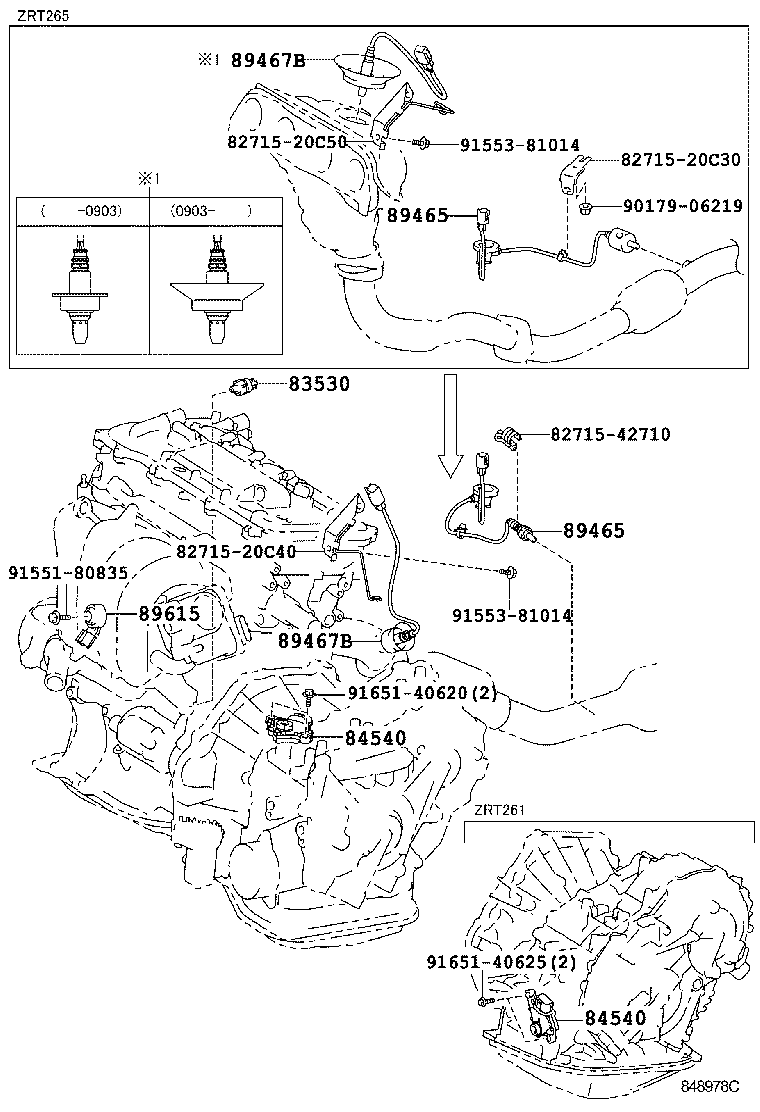

ILLUST NO. 1 OF 8(0705-1212)ZRT26#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NZT260,ZRT26#..CBU |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NZT260,ZRT26#..CBU |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NZT260,ZRT26#..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20A10 |
ZRT265..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20A10 |
ZRT265..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12110 |
ZRT265..CBU |
1 | ||
| 89467-68020 |
ZRT265..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12110 |
ZRT265..CBU |
1 | ||
| 89467-68020 |
ZRT265..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 82715-20C30 | ||||
| 82715-20C40 | ||||
| 82715-20C50 | ||||
| 82715-42710 | ||||
| 90179-06219 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

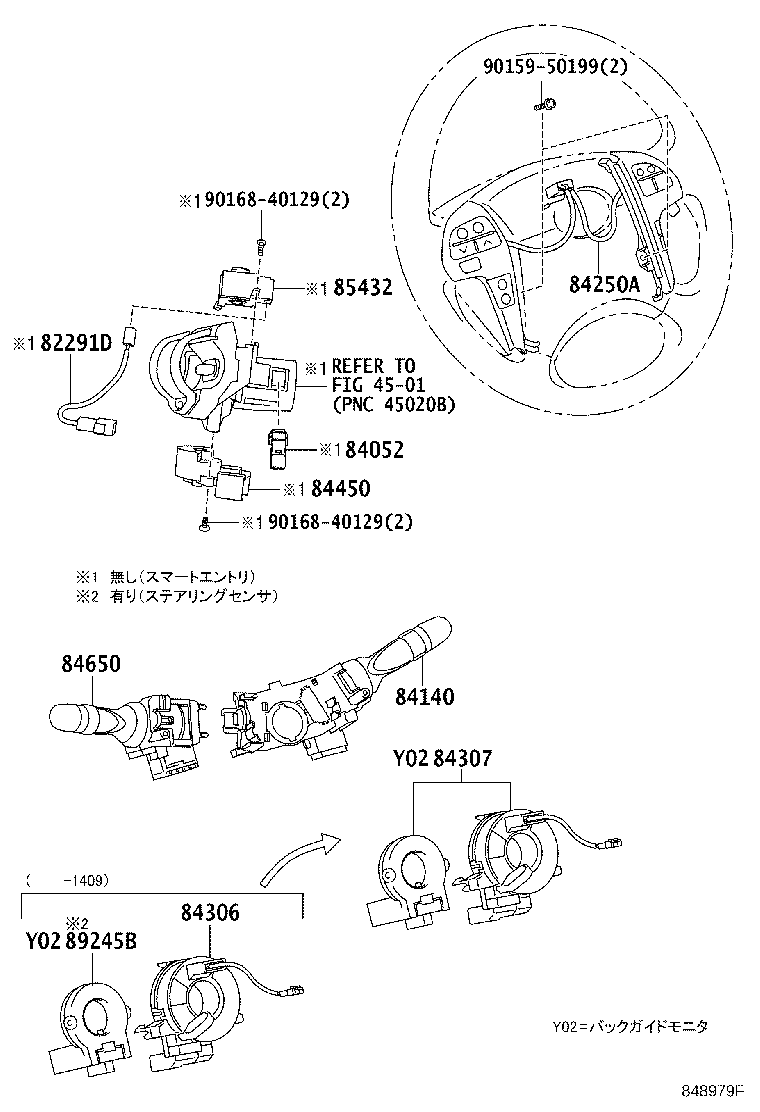

ILLUST NO. 6 OF 8(0705-1606)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-42010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
ZRT26#..CBU |
1 | ||
| 84140-12590 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 84140-42080 |
ZRT26#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-12600 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-20060B0 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 84250-20060B0 |
ZRT260,265..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 84250-20060E0 |
ZRT260,265..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 84250-20060E0 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ,ASH BROWN,TRIM4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 84306-52090 |
ZRT26#..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 84306-12100 |
NZT260,ZRT260,265..CBU |
1 | ||
| 84306-52090 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 84306-52090 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84306-52090 |
ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 84306-52090 |
ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ |
1 | ||
| 84306-52090 |
ZRT26#..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 84306-52090 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52250 |
NZT260,ZRT26#..CBU |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 89245-12020 |
ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 89245-12020 |
ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

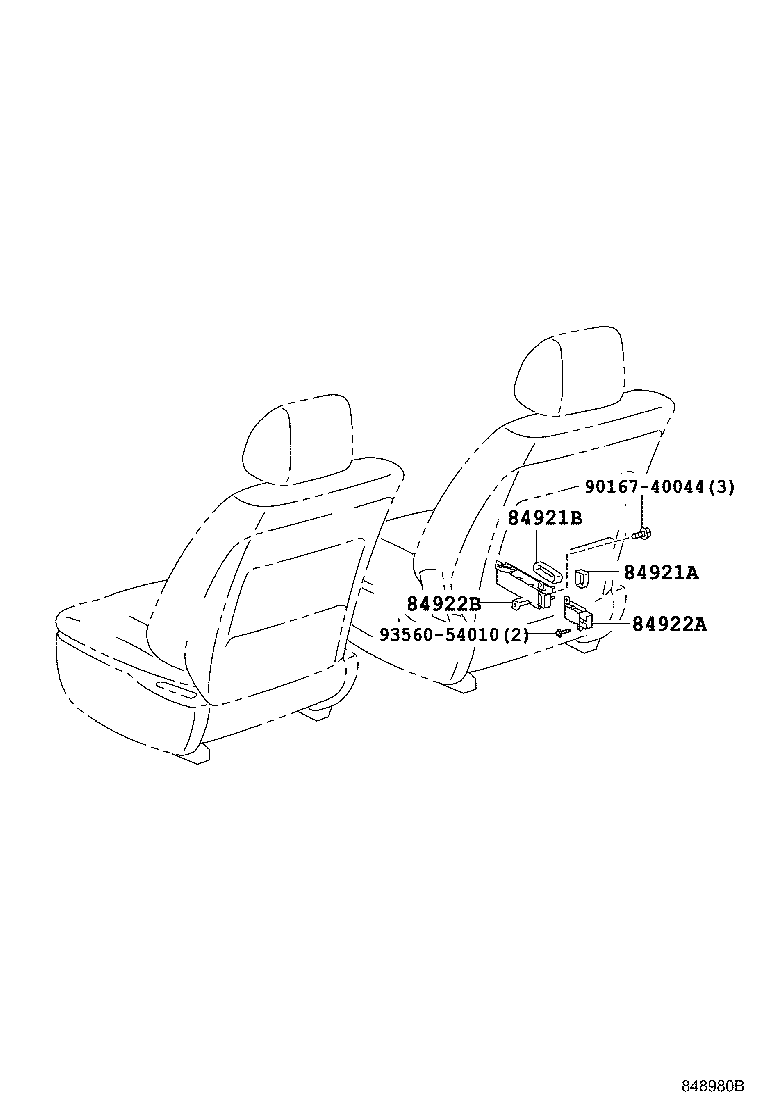

ILLUST NO. 7 OF 8(0705- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-58010E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-58020E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60040E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-58010 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93560-54010 | ||||

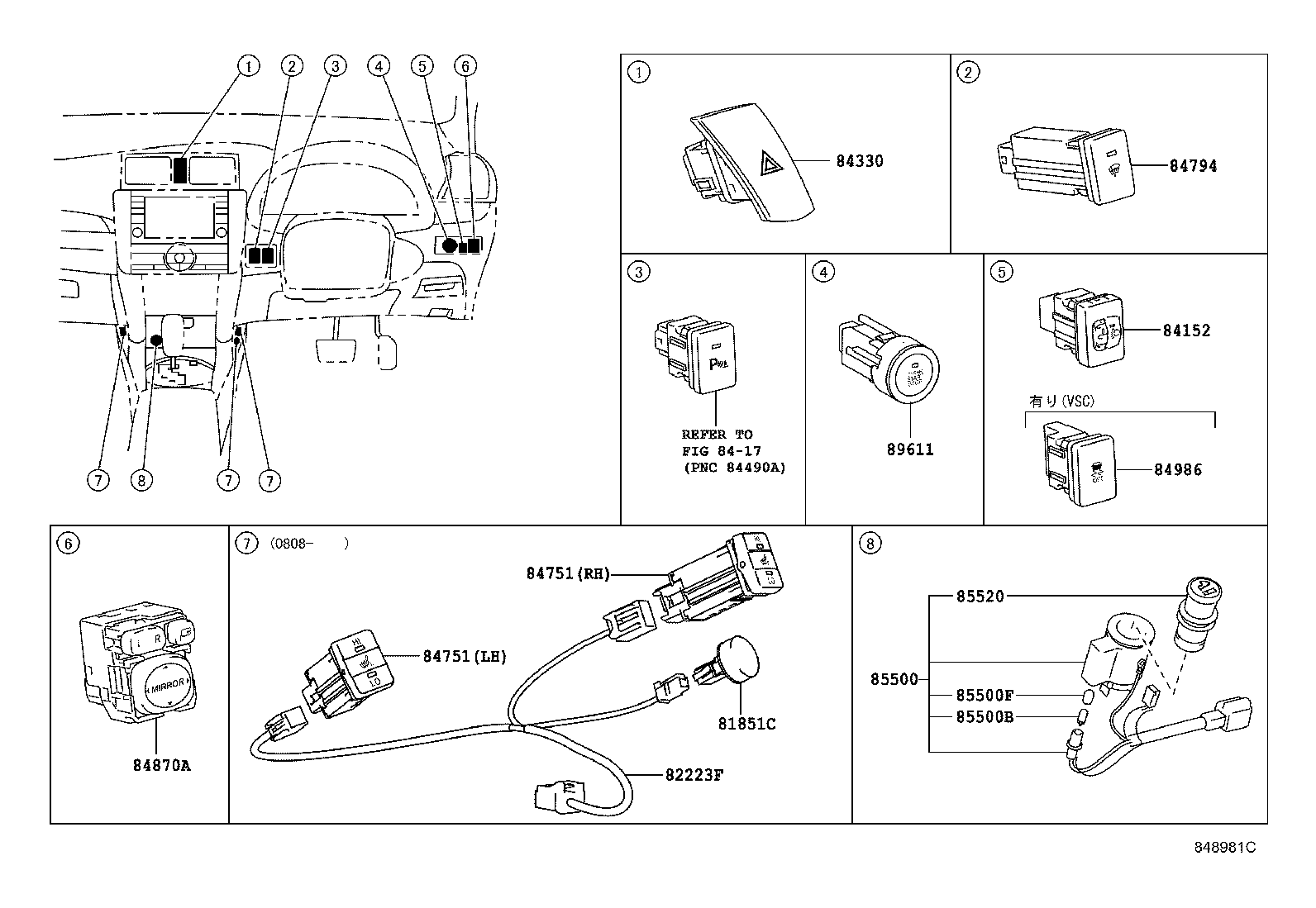

ILLUST NO. 5 OF 8(0705-1409)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
NZT260,ZRT26#..CBU |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20420 |
NZT260,ZRT26#..CBU |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
NZT260,ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
NZT260,ZRT26#..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-21020 |
NZT260,ZRT26#..CBU |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
NZT260,ZRT26#..CBU 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
NZT260,ZRT26#..CBU |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NZT260,ZRT26#..CBU |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52011 |
NZT260,ZRT26#..CBU |
1 | ||
| 89611-52011 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 89611-52010 |
NZT260,ZRT260,265..CBU 有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89611-52010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 89611-52010 |
NZT260,ZRT26#..CBU |
1 | ||
| 89611-52012 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 89611-52012 |
NZT260,ZRT26#..CBU |
1 | ||
| 89611-52011 |
NZT260,ZRT260,265..CBU 有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89611-52012 |
NZT260,ZRT260,265..CBU 有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

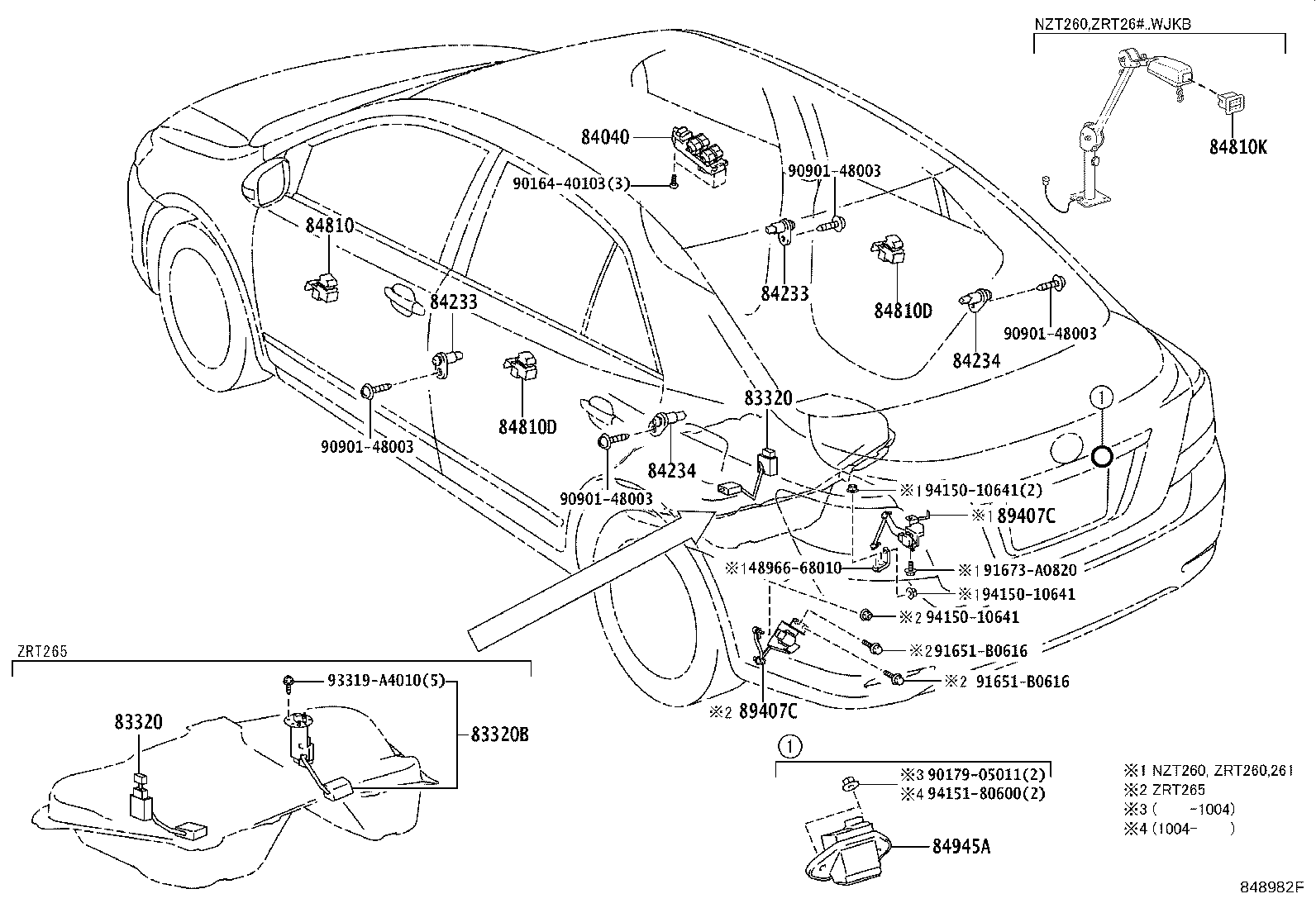

ILLUST NO. 8 OF 8(0705- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-32290 |
ZRT265..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-32290 |
ZRT265..CBU |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-80384 |
ZRT265..CBU |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
NZT260,ZRT26#..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NZT260,ZRT26#..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NZT260,ZRT26#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NZT260,ZRT26#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NZT260,ZRT26#..CBU |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
NZT260,ZRT26#..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
NZT260,ZRT26#..CBU |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
NZT260,ZRT26#..CBU |
2 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-20010 |
NZT260,ZRT26#..CBU |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-12020 |
ZRT265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-12020 |
ZRT265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 48966-68010 | ||||
| 90164-40103 | ||||
| 90179-05011 | ||||
| 90901-48003 | ||||
| 91651-B0616 | ||||
| 91673-A0820 | ||||
| 93319-A4010 | ||||
| 94150-10641 | ||||
| 94151-80600 | ||||

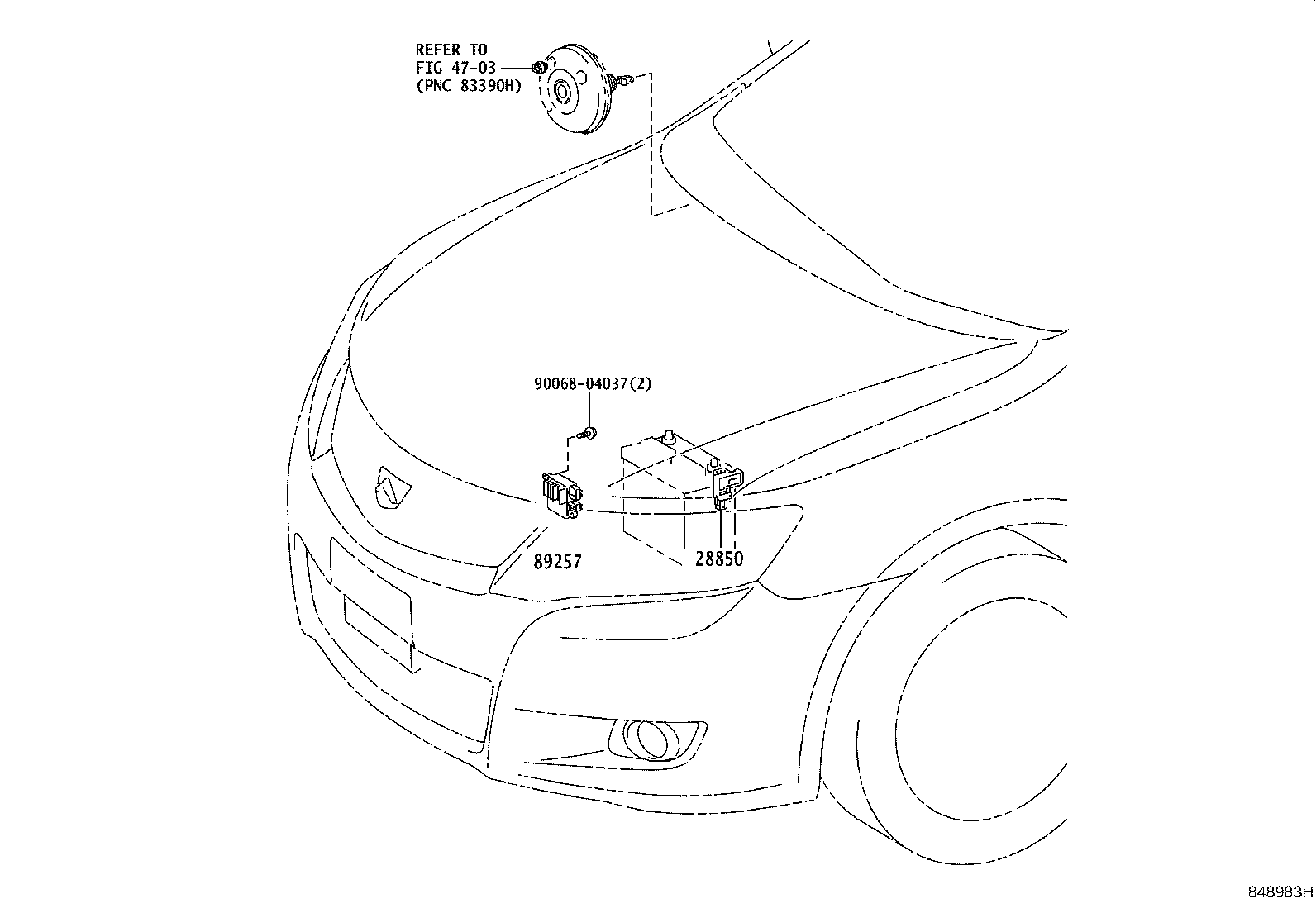

ILLUST NO. 2 OF 8(0705- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-21020 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| Linked diagrams | ||||
| 4703 | ||||

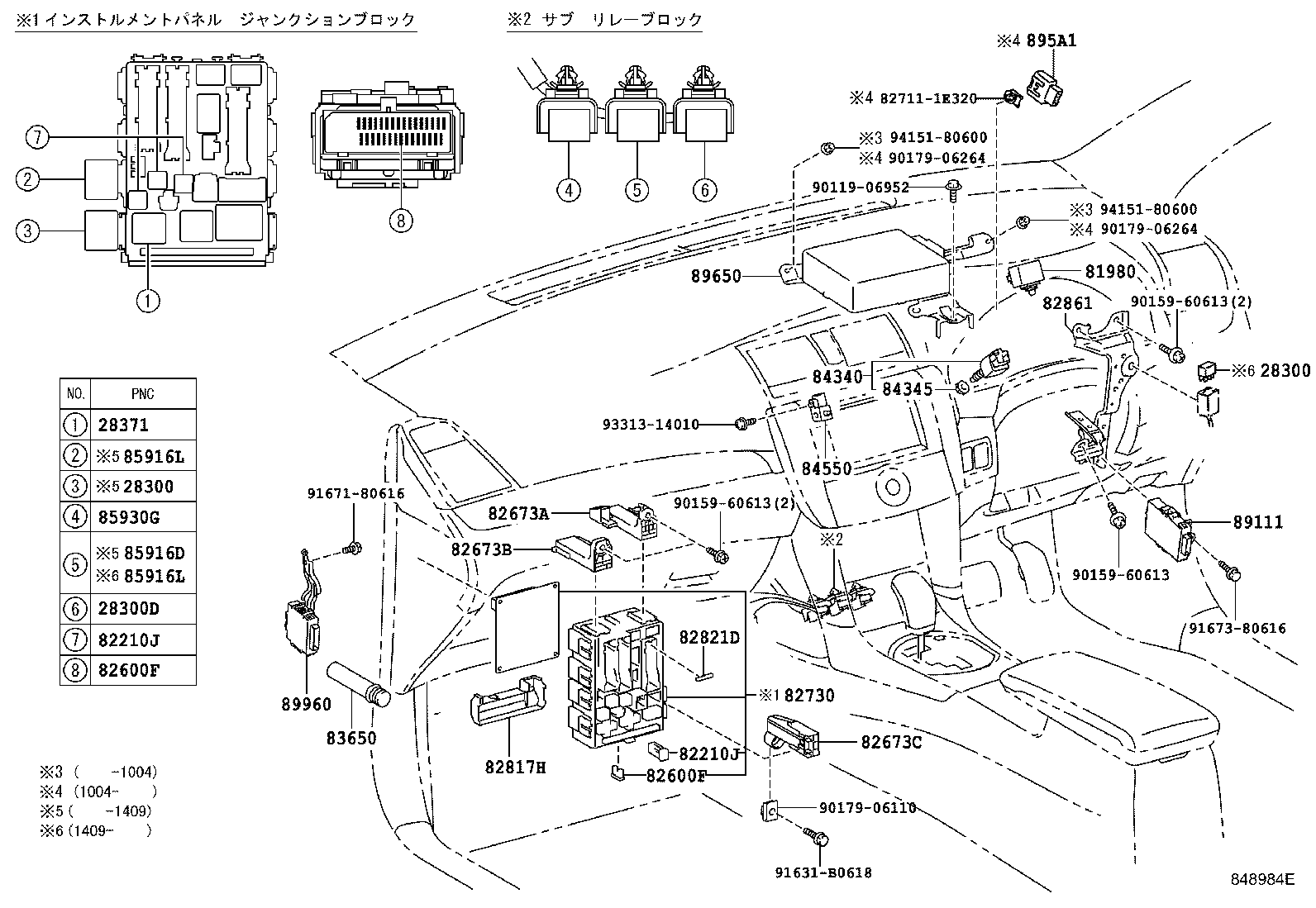

ILLUST NO. 4 OF 8(0705-1606)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1NZFE,2ZRFE..NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 90987-02027 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NZT260,ZRT26#..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NZT260,ZRT26#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NZT260,ZRT26#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NZT260,ZRT26#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NZT260,ZRT26#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
NZT260,ZRT26#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NZT260,ZRT26#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
NZT260,ZRT26#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
NZT260,ZRT26#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NZT260,ZRT26#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NZT260,ZRT26#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
NZT260,ZRT26#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NZT260,ZRT26#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
NZT260,ZRT26#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
NZT260,ZRT26#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
NZT260,ZRT26#..CBU |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
NZT260,ZRT26#..CBU |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12230 |
NZT260,ZRT26#..CBU |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20260 |
ZRT265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 82730-20200 |
ZRT265..CBU |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12B50 |
NZT260,ZRT26#..CBU |
1 | ||
| 82821D - COVER, CONNECTOR | ||||
| 82821-52020 |
NZT260,ZRT26#..CBU |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-20010 |
NZT260,ZRT26#..CBU |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NZT260,ZRT26#..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
NZT260,ZRT26#..CBU |
1 | ||
| 84340-19025 |
NZT260,ZRT26#..CBU |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NZT260,ZRT26#..CBU |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NZT260,ZRT26#..CBU |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NZT260,ZRT26#..CBU |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
NZT260,ZRT26#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
NZT260,ZRT26#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NZT260,ZRT26#..CBU |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-20010 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-20030 |
NZT260,ZRT26#..CBU JTEKT/DENSO |
1 | ||
| 89650-20080 |
ZRT260,265..CBU JTEKT/DENSO,ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-20110 |
ZRT265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90119-06952 | ||||
| 90159-60613 | ||||
| 90179-06110 | ||||
| 90179-06264 | ||||
| 91631-B0618 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 93313-14010 | ||||
| 94151-80600 | ||||

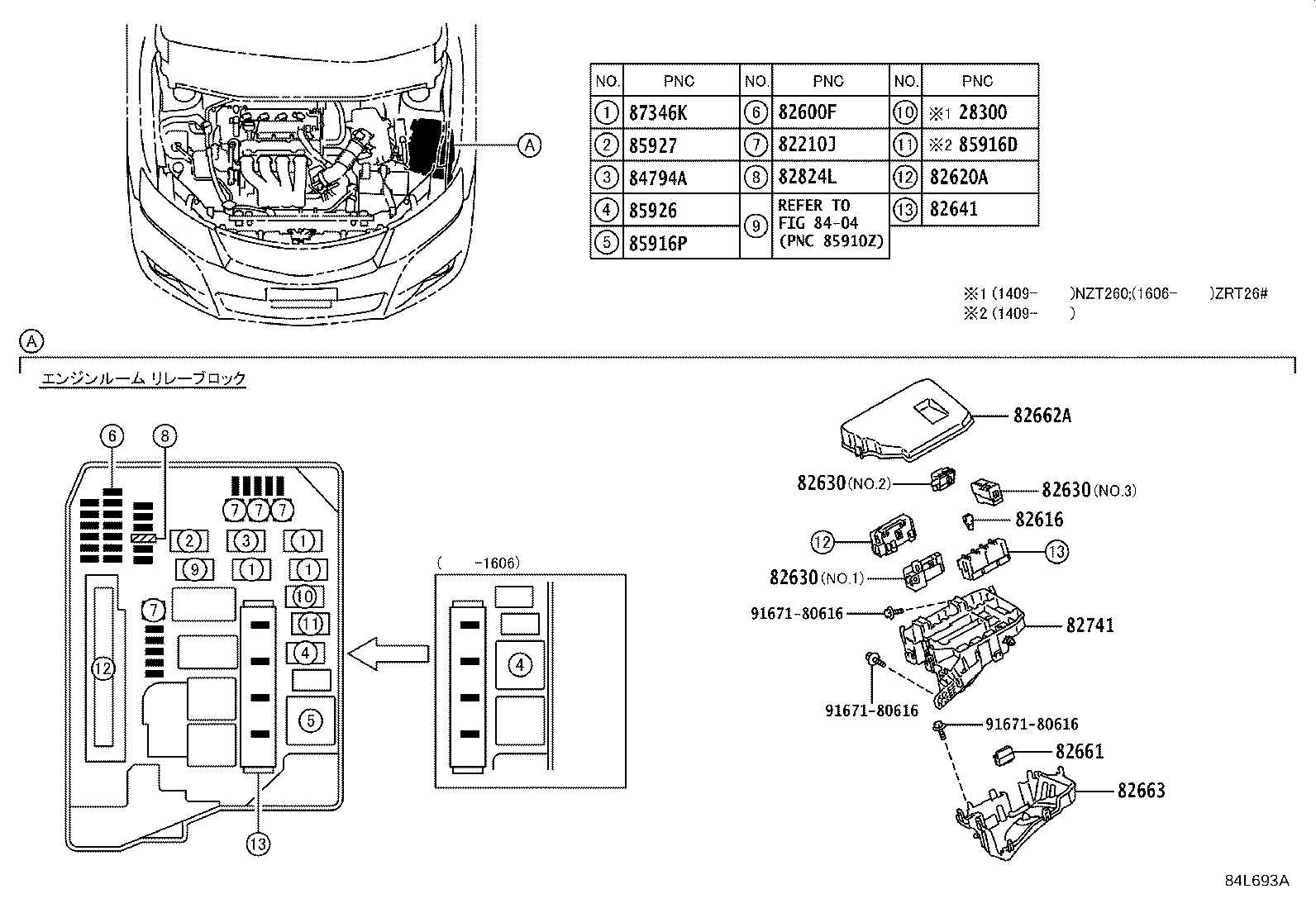

ILLUST NO. 3 OF 8(0705- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NZT260,ZRT26#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NZT260,ZRT26#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NZT260,ZRT26#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
NZT260,ZRT26#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NZT260,ZRT26#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
NZT260,ZRT26#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
NZT260,ZRT26#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NZT260,ZRT26#..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
NZT260,ZRT26#..CBU |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12080 |
NZT260,ZRT26#..CBU NO.2 |
1 | ||
| 82631-12090 |
NZT260,ZRT26#..CBU NO.3 |
1 | ||
| 82631-12070 |
NZT260,ZRT26#..CBU NO.1 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12080 |
NZT260,ZRT26#..CBU NO.2 |
1 | ||
| 82631-12090 |
NZT260,ZRT26#..CBU NO.3 |
1 | ||
| 82631-12070 |
NZT260,ZRT26#..CBU NO.1 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12080 |
NZT260,ZRT26#..CBU NO.2 |
1 | ||
| 82631-12090 |
NZT260,ZRT26#..CBU NO.3 |
1 | ||
| 82631-12070 |
NZT260,ZRT26#..CBU NO.1 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NZT260,ZRT26#..CBU |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12310 |
NZT260,ZRT26#..CBU |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20280 |
ZRT26#..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20280 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20280 |
ZRT26#..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20280 |
NZT260,ZRT26#..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20280 |
ZRT26#..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20280 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20280 |
NZT260,ZRT26#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-20270 |
NZT260,ZRT26#..CBU |
1 | ||
| 82662-20280 |
ZRT26#..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12100 |
NZT260,ZRT26#..CBU |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12110 |
NZT260,ZRT26#..CBU |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
NZT260,ZRT26#..CBU |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
NZT260,ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NZT260,ZRT26#..CBU |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NZT260,ZRT26#..CBU |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NZT260,ZRT26#..CBU |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NZT260,ZRT26#..CBU |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NZT260,ZRT26#..CBU 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
