ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

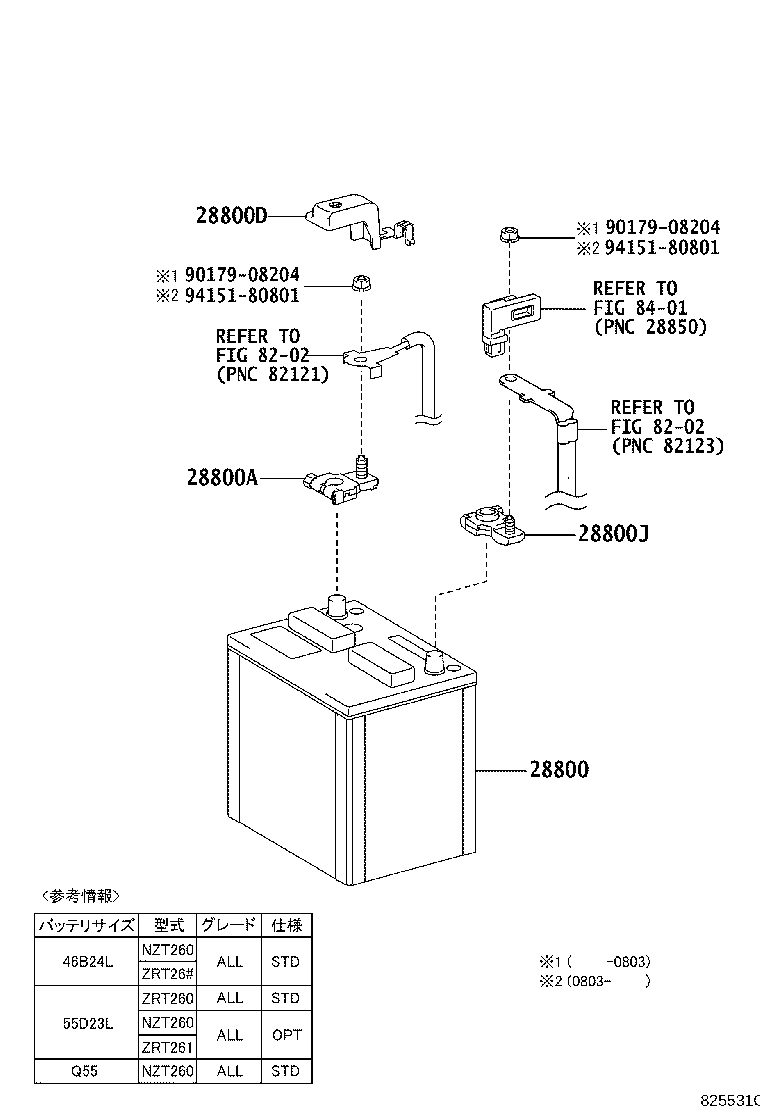

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 8202 8202 8401 9017908204 9017908204 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05055

1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06071

1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU

 1
Common parts
90179-08204
94151-80801
Linked diagrams
8202
8401
