ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1606)

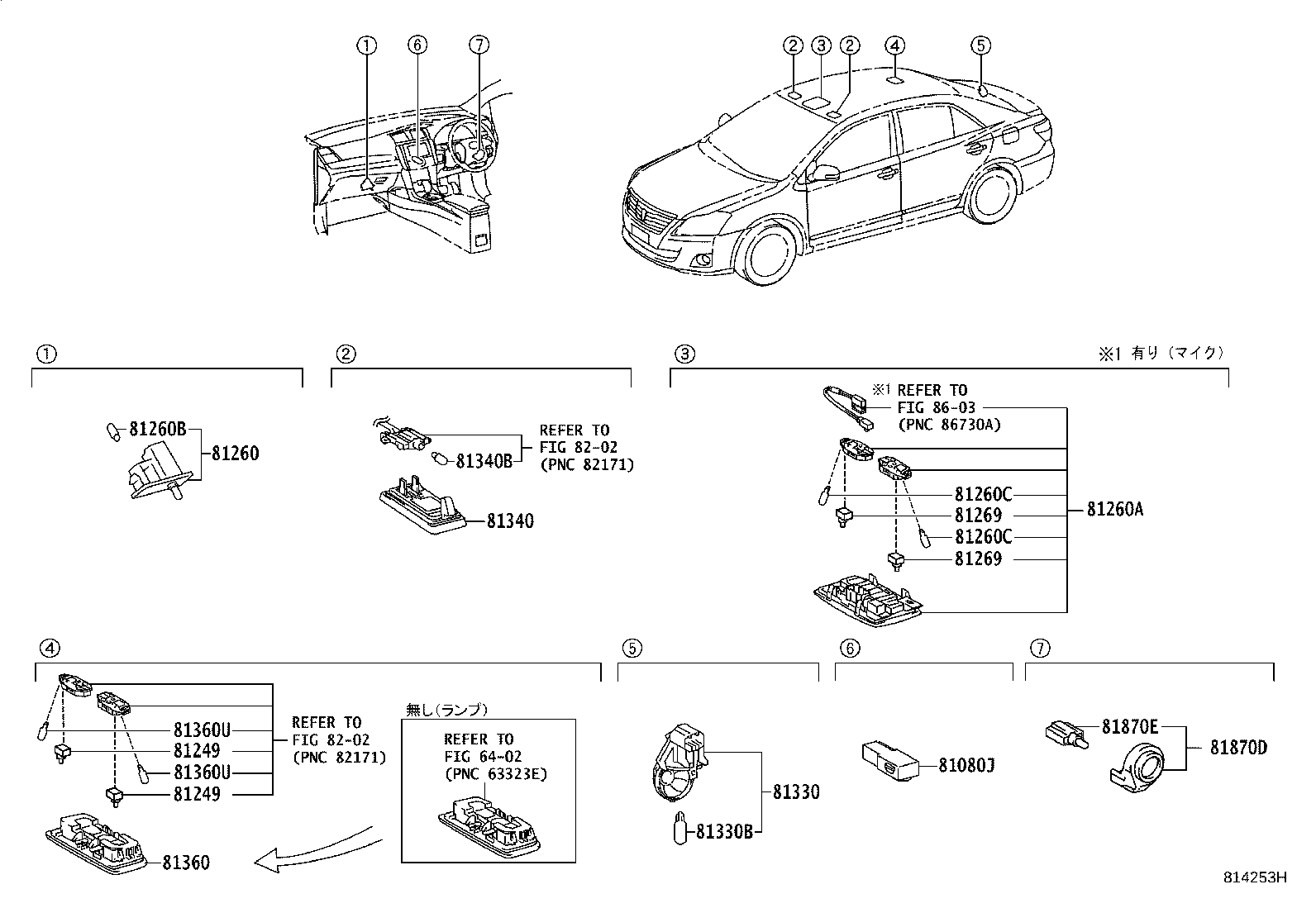

Click highlighted areas on diagram

diagram 6402 81080J 81249 81249 81260 81260A 81260B 81260C 81260C 81269 81269 81330 81330B 81340 81340B 81360 81360U 81360U 81870D 81870E 8202 8202 8603
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-22040

NZT260,ZRT26#..CBU

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

NZT260,ZRT26#..CBU

 1
81260A - LAMP ASSY, MAP
81260-20290B0

NZT260,ZRT26#..CBU

LT.GRAY,TRIM1#

 1
81260-20300E0

NZT260,ZRT26#..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ,GREGE,TRIM4#

 1
81260-20290E0

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 1
81260-20300B0

NZT260,ZRT26#..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CD,MD,6ｽﾋﾟｰｶ,LT.GRAY,TRIM1#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

NZT260,ZRT26#..CBU

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

NZT260,ZRT26#..CBU

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

NZT260,ZRT26#..CBU

12V 5W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

NZT260,ZRT26#..CBU

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

NZT260,ZRT26#..CBU

12V 3.8W

 1
81340 - LAMP ASSY, VANITY
81340-30100B0

NZT260,ZRT26#..CBU

LT.GRAY,TRIM1#

 2
81340-30100E1

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

NZT260,ZRT26#..CBU

12V 8W

 2
81360 - LAMP ASSY, STEP OR SPOT
81360-20010B0

NZT260,ZRT26#..CBU

LT.GRAY,TRIM1#

 1
81360-20010E0

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 1
81360U - BULB, SPOT LAMP
99132-12050

NZT260,ZRT26#..CBU

 2
81360U - BULB, SPOT LAMP
99132-12050

NZT260,ZRT26#..CBU

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-20060

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01022

NZT260,ZRT260,265..CBU

14V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,Standard Package *(Uj or “Version C”*(C)

 1
Linked diagrams
6402
8202
8603
