ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1004)PRM

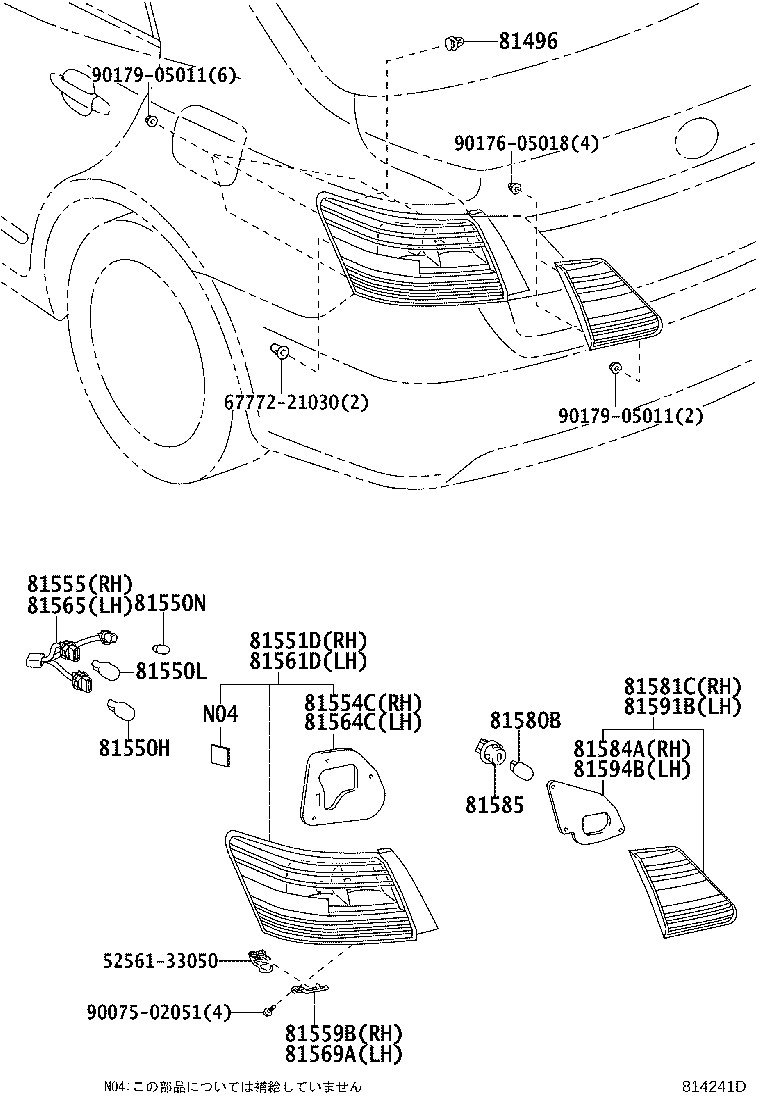

Click highlighted areas on diagram

diagram 5256133050 6777221030 81496 81550H 81550L 81550N 81551D 81554C 81555 81559B 81561D 81564C 81565 81569A 81580B 81581C 81584A 81585 81591B 81594B 9007502051 9017605018 9017905011 9017905011
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

NZT260,ZRT26#..PRM..CBU

 2
81550H - BULB, TAIL & STOP LAMP
90981-13044

NZT260,ZRT26#..CBU

12V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

NZT260,ZRT26#..PRM..CBU

12V 21W,ｱﾝﾊﾞｰ

 2
81550N - BULB, BACK UP LAMP
90981-11059

NZT260,ZRT26#..CBU

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-20A21

NZT260,ZRT26#..PRM..CBU

 1
81551-20A20

NZT260,ZRT26#..PRM..CBU

 1
81554C - PACKING, REAR COMBINATION LAMP BODY, RH
81552-20A20

NZT260,ZRT26#..PRM..CBU

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20A20

NZT260,ZRT26#..PRM..CBU

 1
81559B - BRACKET, REAR COMBINATION LAMP, RH
81559-20A20

NZT260,ZRT26#..PRM..CBU

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-20A21

NZT260,ZRT26#..PRM..CBU

 1
81561-20A20

NZT260,ZRT26#..PRM..CBU

 1
81564C - PACKING, REAR COMBINATION LAMP BODY, LH
81562-20A20

NZT260,ZRT26#..PRM..CBU

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-20A20

NZT260,ZRT26#..PRM..CBU

 1
81569A - BRACKET, REAR COMBINATION LAMP, LH
81569-20A20

NZT260,ZRT26#..PRM..CBU

 1
81580B - BULB (FOR REAR LAMP)
99132-12050

NZT260,ZRT26#..PRM..CBU

12V 5W

 2
81581C - LENS AND BODY, REAR LAMP, RH
81581-20311

NZT260,ZRT26#..PRM..CBU

 1
81581-20310

NZT260,ZRT26#..PRM..CBU

 1
81584A - GASKET, REAR LAMP RH
81584-20310

NZT260,ZRT26#..PRM..CBU

 1
81585 - SOCKET & WIRE, REAR LAMP
90075-99005

NZT260,ZRT26#..PRM..CBU

 2
81591B - LENS AND BODY, REAR LAMP, LH
81591-20241

NZT260,ZRT26#..PRM..CBU

 1
81591-20240

NZT260,ZRT26#..PRM..CBU

 1
81594B - PACKING, REAR LAMP LH
81594-20240

NZT260,ZRT26#..PRM..CBU

 1
Common parts
52561-33050
67772-21030
90075-02051
90176-05018
90179-05011
