ZRT265-AEXEK (2007)
Toyota Premio/Allion

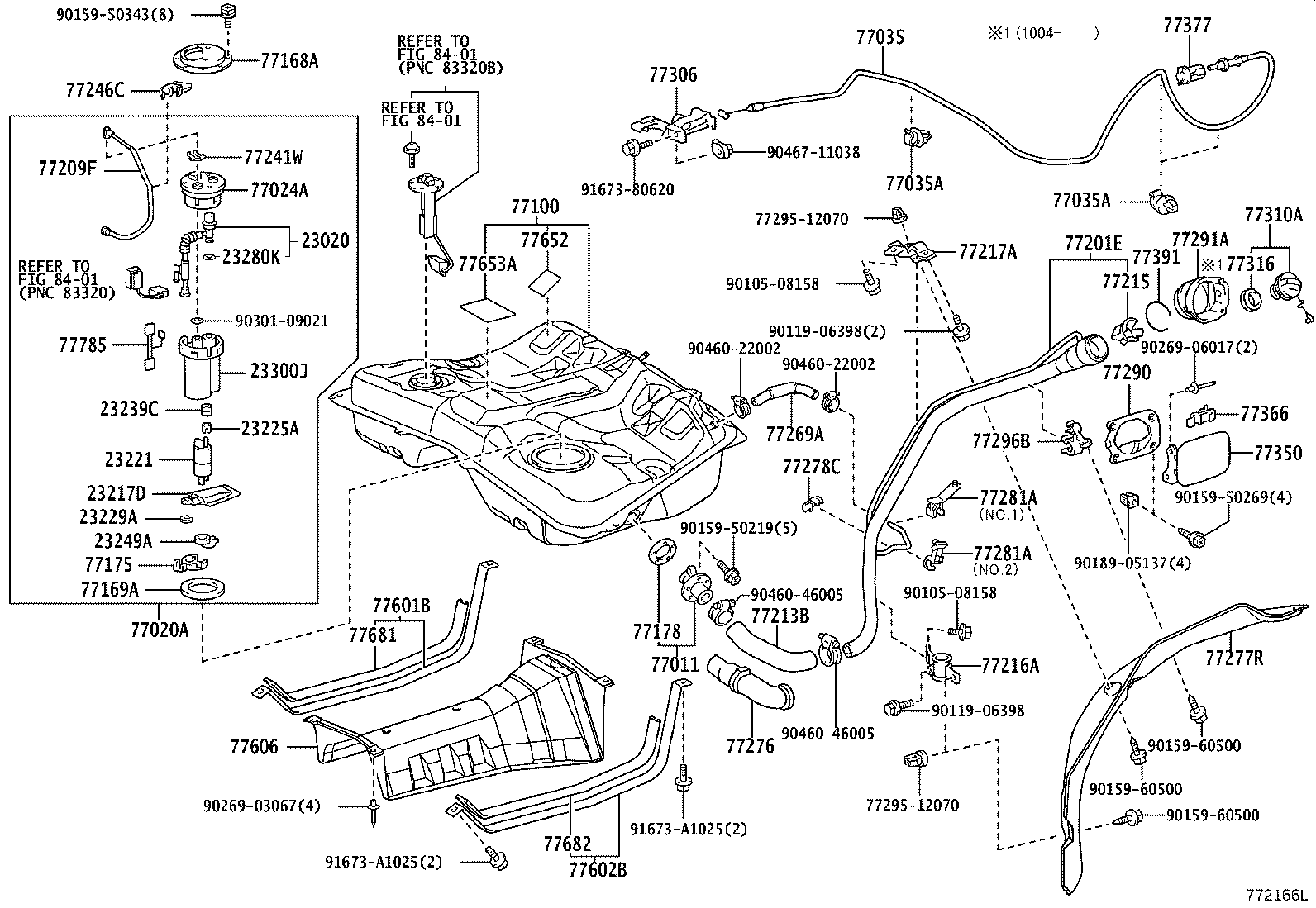

ILLUST NO. 1 OF 2(0705- )ZRT265
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23020 - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP | ||||
| 23020-28010 |
2ZRFE..ZRT265 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-28250 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-28290 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07041 |
2ZRFE..ZRT265 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-28040 |
1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-63010 |
ZRT265..CBU |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-20241 |
ZRT265..CBU |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42020 |
ZRT265..CBU |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20520 |
NZT260,ZRT26#..CBU |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NZT260,ZRT26#..CBU |
3 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NZT260,ZRT26#..CBU |
3 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-20820 |
ZRT265..CBU |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ZRT265..CBU |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
NZT260,ZRT26#..CBU |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
NZT260,ZRT26#..CBU |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
ZRT265..CBU |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-63020 |
NZT260,ZRT26#..CBU |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-32030 |
ZRT265..CBU |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-63010 |
ZRT265..CBU |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 77215-51010 |
NZT260,ZRT26#..CBU |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
NZT260,ZRT26#..CBU |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
NZT260,ZRT26#..CBU |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NZT260,ZRT26#..CBU |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-21010 |
ZRT265..CBU |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-32010 |
ZRT265..CBU |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
NZT260,ZRT26#..CBU |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-32080 |
NZT260,ZRT26#..CBU |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-13020 |
ZRT265..CBU |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
NZT260,ZRT26#..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77281-13010 |
NZT260,ZRT26#..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
NZT260,ZRT26#..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77281-13010 |
NZT260,ZRT26#..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20180 |
NZT260,ZRT26#..CBU |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-20170 |
NZT260,ZRT26#..CBU |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-32020 |
NZT260,ZRT26#..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-20180 |
NZT260,ZRT26#..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NZT260,ZRT26#..CBU |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20330 |
NZT260,ZRT26#..CBU |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
NZT260,ZRT26#..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
NZT260,ZRT26#..CBU |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NZT260,ZRT26#..CBU |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-32110 |
ZRT265..CBU |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77601-32110 |
ZRT265..CBU |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-32040 |
ZRT265..CBU |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZRT265..CBU |
5 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
ZRT265..CBU |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-21020 |
ZRT265..CBU |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-21020 |
ZRT265..CBU |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 77295-12070 | ||||
| 90105-08158 | ||||
| 90119-06398 | ||||
| 90159-50219 | ||||
| 90159-50269 | ||||
| 90159-50343 | ||||
| 90159-60500 | ||||
| 90189-05137 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90301-09021 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-11038 | ||||
| 91673-80620 | ||||
| 91673-A1025 | ||||
| Linked diagrams | ||||
| 8401 | ||||

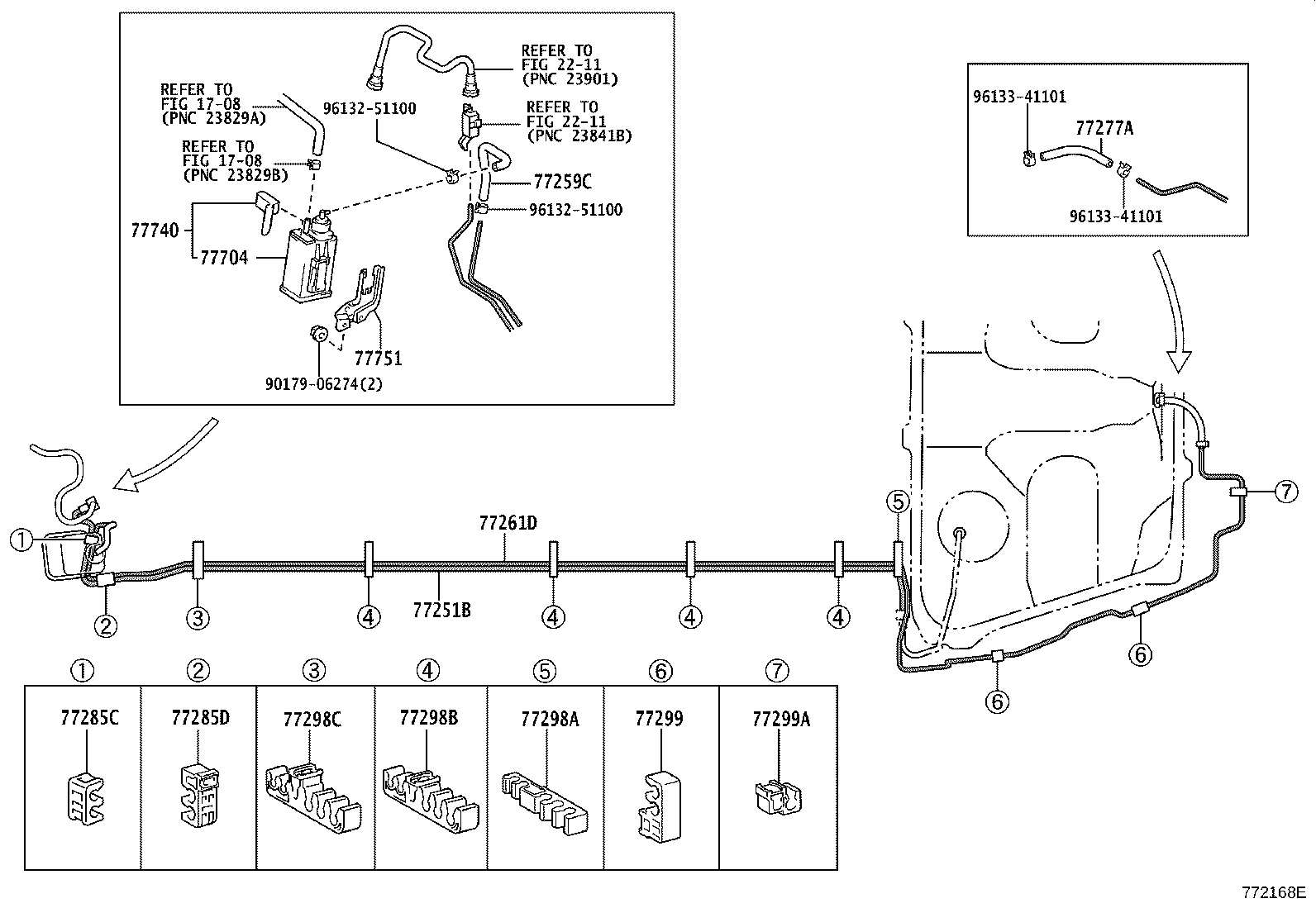

ILLUST NO. 2 OF 2(0705- )ZRT265
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20830 |
NZT260,ZRT26#..CBU |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-20270 |
NZT260,ZRT26#..CBU |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20460 |
ZRT265..CBU |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95337-06018 |
ZRT265..CBU 長さ=180 |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-42110 |
NZT260,ZRT26#..CBU |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50040 |
NZT260,ZRT26#..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68030 |
NZT260,ZRT26#..CBU |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68020 |
NZT260,ZRT26#..CBU |
4 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
NZT260,ZRT26#..CBU |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20060 |
NZT260,ZRT26#..CBU |
2 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
NZT260,ZRT26#..CBU |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-12490 |
NZT260,ZRT26#..CBU |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12690 |
NZT260,ZRT26#..CBU |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20400 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 96132-51100 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
