ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

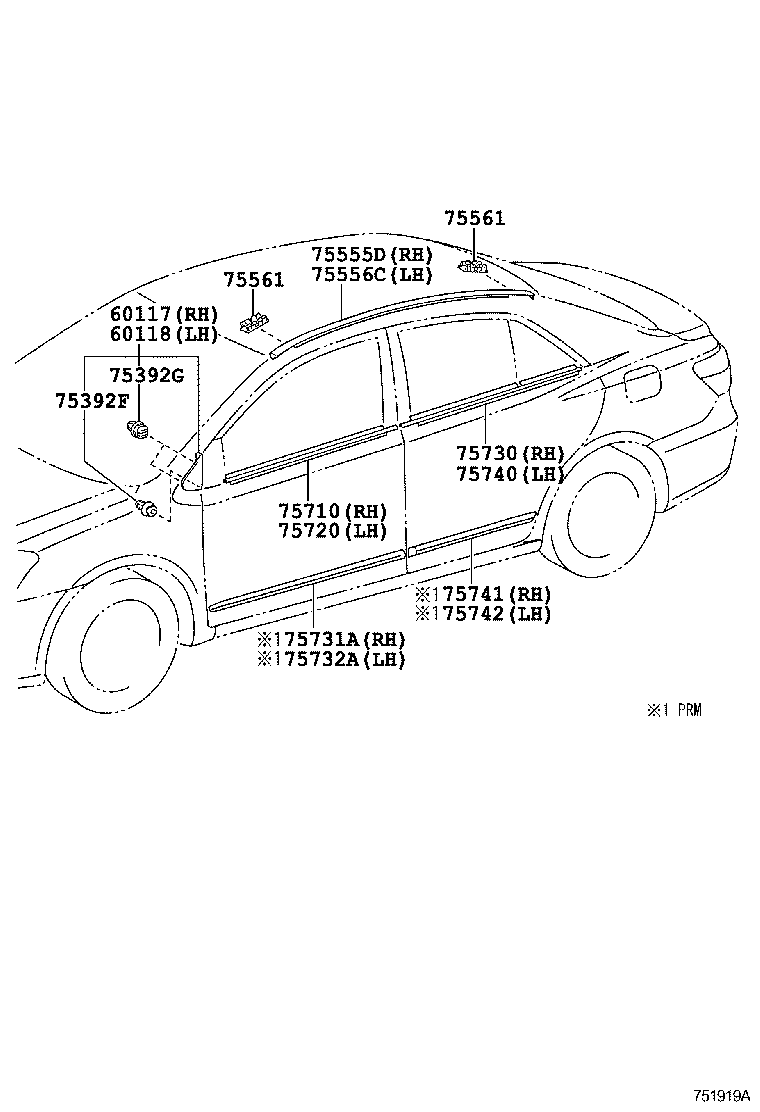

Click highlighted areas on diagram

diagram 60117 60118 75392F 75392G 75555D 75556C 75561 75561 75710 75720 75730 75731A 75732A 75740 75741 75742
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-20020

NZT260,ZRT26#..CBU

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-20020

NZT260,ZRT26#..CBU

 1
75392F - RETAINER, OUTSIDE MOULDING
52562-58020

NZT260,ZRT26#..CBU

 2
75392G - RETAINER, OUTSIDE MOULDING, NO.1
61194-20020

NZT260,ZRT26#..CBU

 4
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-20110

NZT260,ZRT26#..CBU

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-20110

NZT260,ZRT26#..CBU

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

NZT260,ZRT26#..CBU

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

NZT260,ZRT26#..CBU

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-20500

NZT260,ZRT26#..PRM..CBU

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-20500

NZT260,ZRT26#..PRM..CBU

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-20310

NZT260,ZRT26#..PRM..CBU

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20750D0

NZT260,ZRT26#..PRM..CBU

BLACKISH RED MC.,3R0

 1
75731-20750J0

NZT260,ZRT26#..PRM..CBU

LT.BLUE M.M.,8S7

 1
75731-20750D1

NZT260,ZRT26#..PRM..CBU

RED M.M.,3R3

 1
75731-20750B1

NZT260,ZRT26#..PRM..CBU

GRAY ME.,1G2

 1
75731-20750C0

NZT260,ZRT26#..PRM..CBU

BLACK MC.,209

 1
75731-20750B0

NZT260,ZRT26#..PRM..CBU

SILVER ME.,1F7

 1
75731-20750A0

NZT260,ZRT26#..PRM..CBU

SUPER WHITE 2,040

 1
75731-20750A1

NZT260,ZRT26#..PRM..CBU

WHITE PEARL CS.,070

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20750D1

NZT260,ZRT26#..PRM..CBU

RED M.M.,3R3

 1
75732-20750A0

NZT260,ZRT26#..PRM..CBU

SUPER WHITE 2,040

 1
75732-20750A1

NZT260,ZRT26#..PRM..CBU

WHITE PEARL CS.,070

 1
75732-20750B1

NZT260,ZRT26#..PRM..CBU

GRAY ME.,1G2

 1
75732-20750B0

NZT260,ZRT26#..PRM..CBU

SILVER ME.,1F7

 1
75732-20750D0

NZT260,ZRT26#..PRM..CBU

BLACKISH RED MC.,3R0

 1
75732-20750J0

NZT260,ZRT26#..PRM..CBU

LT.BLUE M.M.,8S7

 1
75732-20750C0

NZT260,ZRT26#..PRM..CBU

BLACK MC.,209

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-20380

NZT260,ZRT26#..PRM..CBU

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20800A0

NZT260,ZRT26#..PRM..CBU

SUPER WHITE 2,040

 1
75741-20800B0

NZT260,ZRT26#..PRM..CBU

SILVER ME.,1F7

 1
75741-20800D1

NZT260,ZRT26#..PRM..CBU

RED M.M.,3R3

 1
75741-20800D0

NZT260,ZRT26#..PRM..CBU

BLACKISH RED MC.,3R0

 1
75741-20800J0

NZT260,ZRT26#..PRM..CBU

LT.BLUE M.M.,8S7

 1
75741-20800A1

NZT260,ZRT26#..PRM..CBU

WHITE PEARL CS.,070

 1
75741-20800C0

NZT260,ZRT26#..PRM..CBU

BLACK MC.,209

 1
75741-20800B1

NZT260,ZRT26#..PRM..CBU

GRAY ME.,1G2

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20780D1

NZT260,ZRT26#..PRM..CBU

RED M.M.,3R3

 1
75742-20780J0

NZT260,ZRT26#..PRM..CBU

LT.BLUE M.M.,8S7

 1
75742-20780A1

NZT260,ZRT26#..PRM..CBU

WHITE PEARL CS.,070

 1
75742-20780C0

NZT260,ZRT26#..PRM..CBU

BLACK MC.,209

 1
75742-20780A0

NZT260,ZRT26#..PRM..CBU

SUPER WHITE 2,040

 1
75742-20780B1

NZT260,ZRT26#..PRM..CBU

GRAY ME.,1G2

 1
75742-20780B0

NZT260,ZRT26#..PRM..CBU

SILVER ME.,1F7

 1
75742-20780D0

NZT260,ZRT26#..PRM..CBU

BLACKISH RED MC.,3R0

 1
