ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1606)

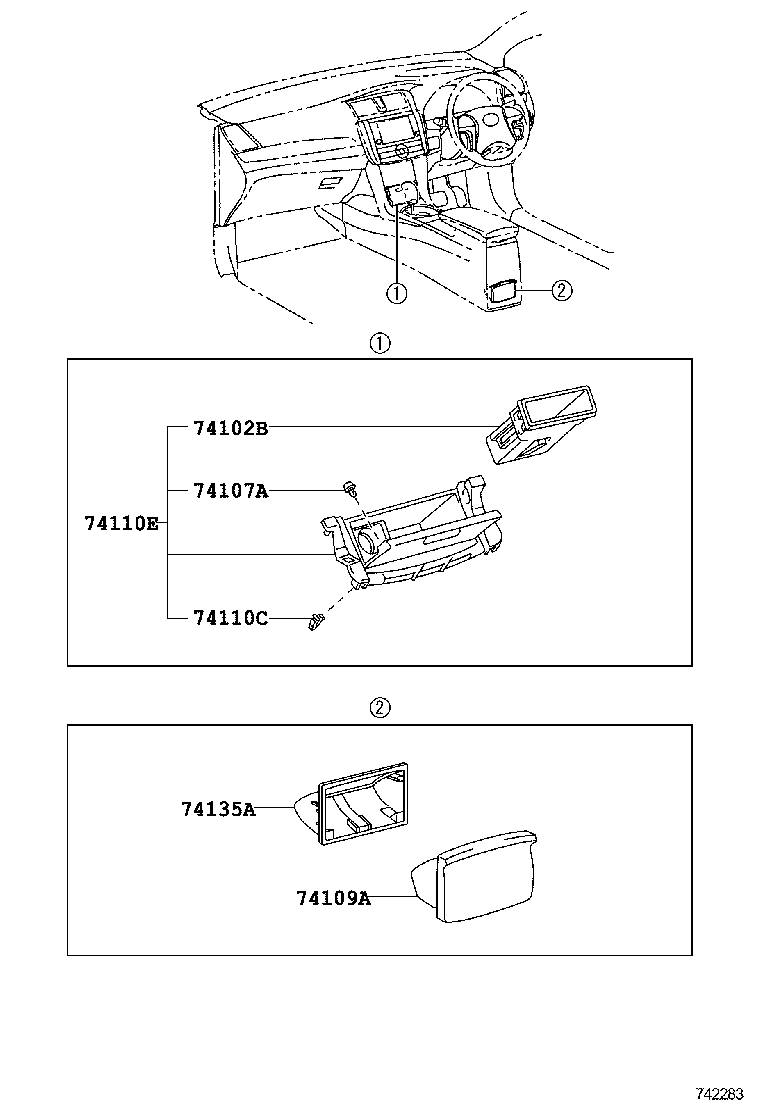

Click highlighted areas on diagram

diagram 74102B 74107A 74109A 74110C 74110E 74135A
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-12410

NZT260,ZRT26#..CBU

 1
74107A - CUSHION, ASH RECEPTACLE DOOR
58959-60060

NZT260,ZRT26#..CBU

 2
74109A - BOX SUB-ASSY, ASH RECEPTACLE
74109-42020B1

NZT260,ZRT26#..CBU

DK.GRAY,TRIM1#

 1
74109-42020E1

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 1
74110C - CLIP, FRONT ASH RECEPTACLE, INNER
90467-10203

NZT260,ZRT26#..CBU

 4
74110E - RECEPTACLE ASSY, FRONT ASH
74110-20170C0

NZT260,ZRT260,265..PRM..CBU

“L package･Prime Selection” *(P),DK.RED,TRIM4#

 1
74110-20170C0

NZT260,ZRT260,265..PRM..CBU

Standard Package *(U) or “Version C”*(C),DK.RED,TRIM4#

 1
74110-20170C0

NZT260,ZRT26#..CBU

DK.RED,TRIM1#

 1
74110-20170E0

NZT260,ZRT260,265..PRM..CBU

YELLOWISH BROWN,TRIM40

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-20090

NZT260,ZRT26#..CBU

 1
