ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

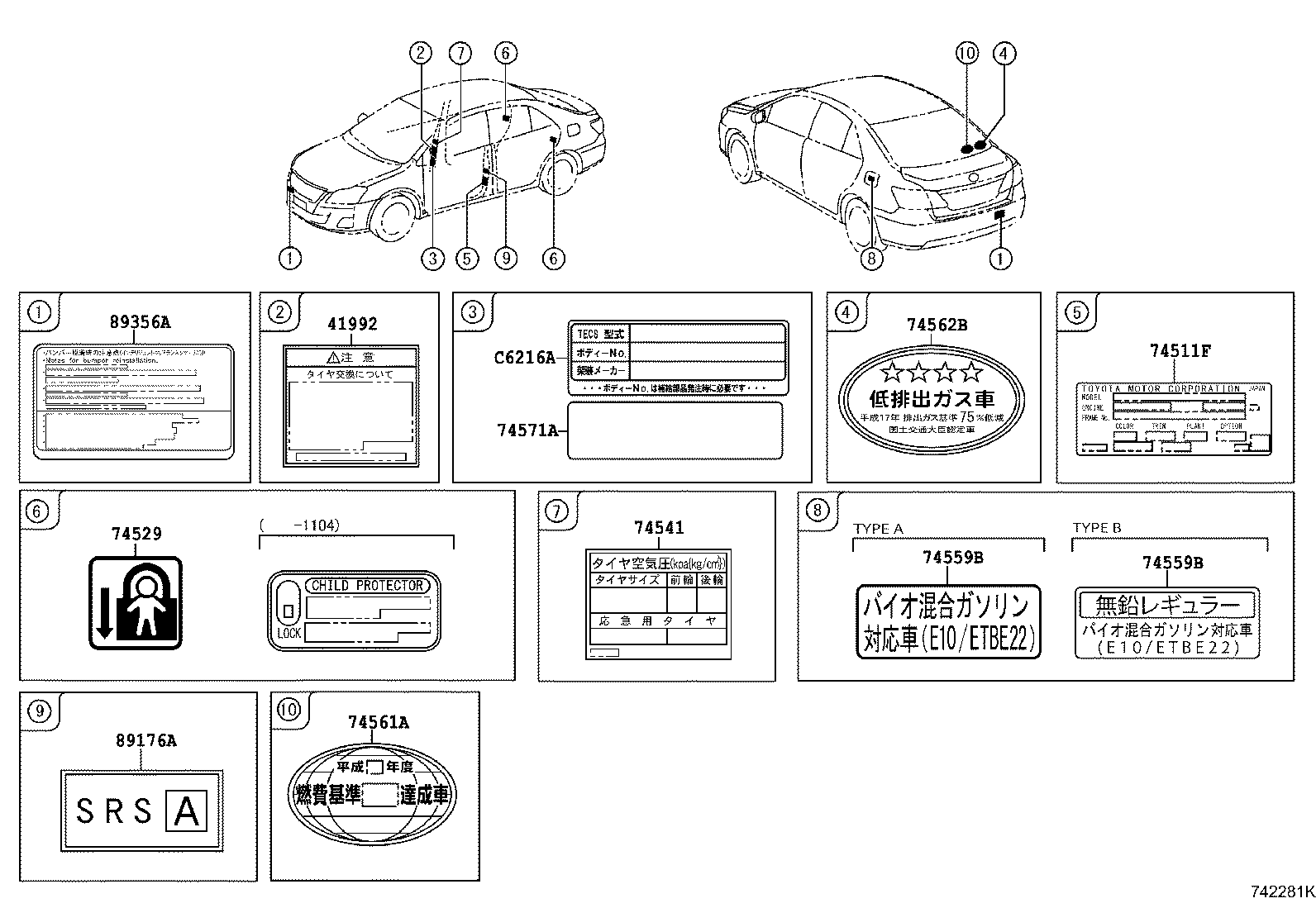

ｶﾞｲｿｳ

diagram 41992 74511F 74529 74541 74559B 74559B 74561A 74562B 74571A 89176A 89356A C6216A
Part # Description Qty Price
41992 - LABEL, DIFFERENTIAL NOTICE
41992-33010

ZRT265..CBU

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

NZT260,ZRT26#..CBU

*111

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

NZT260,ZRT26#..CBU

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-20B50

ZRT265..CBU

 1
42661-20B90

ZRT265..CBU

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52030

ZRT265..CBU

 1
74561-52030

ZRT265..CBU

ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)

 1
74561-52030

ZRT265..CBU

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)

 1
74562B - LABEL, EMISSION INFORMATION
74562-47010

NZT260,ZRT26#..CBU

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

NZT260,ZRT26#..CBU

 1

(0705- )

Click highlighted areas on diagram

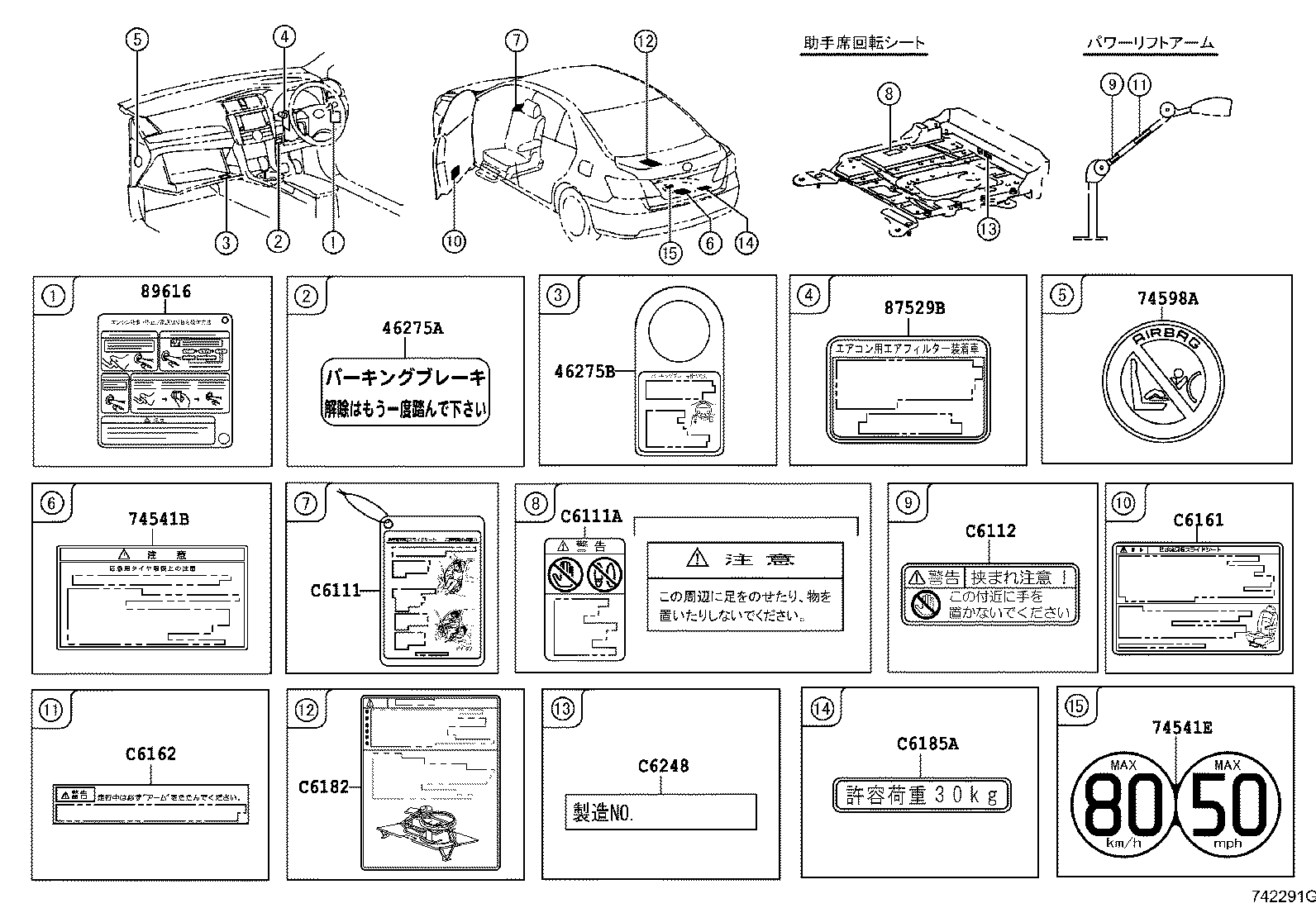

ﾅｲｿｳ

diagram 46275A 46275B 74541B 74541E 74598A 87529B 89616 C6111 C6111A C6112 C6161 C6162 C6182 C6185A C6248
Part # Description Qty Price
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-32010

NZT260,ZRT26#..CBU

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

NZT260,ZRT26#..CBU

 1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060

NZT260,ZRT26#..CBU

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

NZT260,ZRT26#..CBU

 1
89616 - LABEL, PUSH START INFORMATION
89616-52010

NZT260,ZRT26#..CBU

 1
89616-52010

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 1

(0705- )

Click highlighted areas on diagram

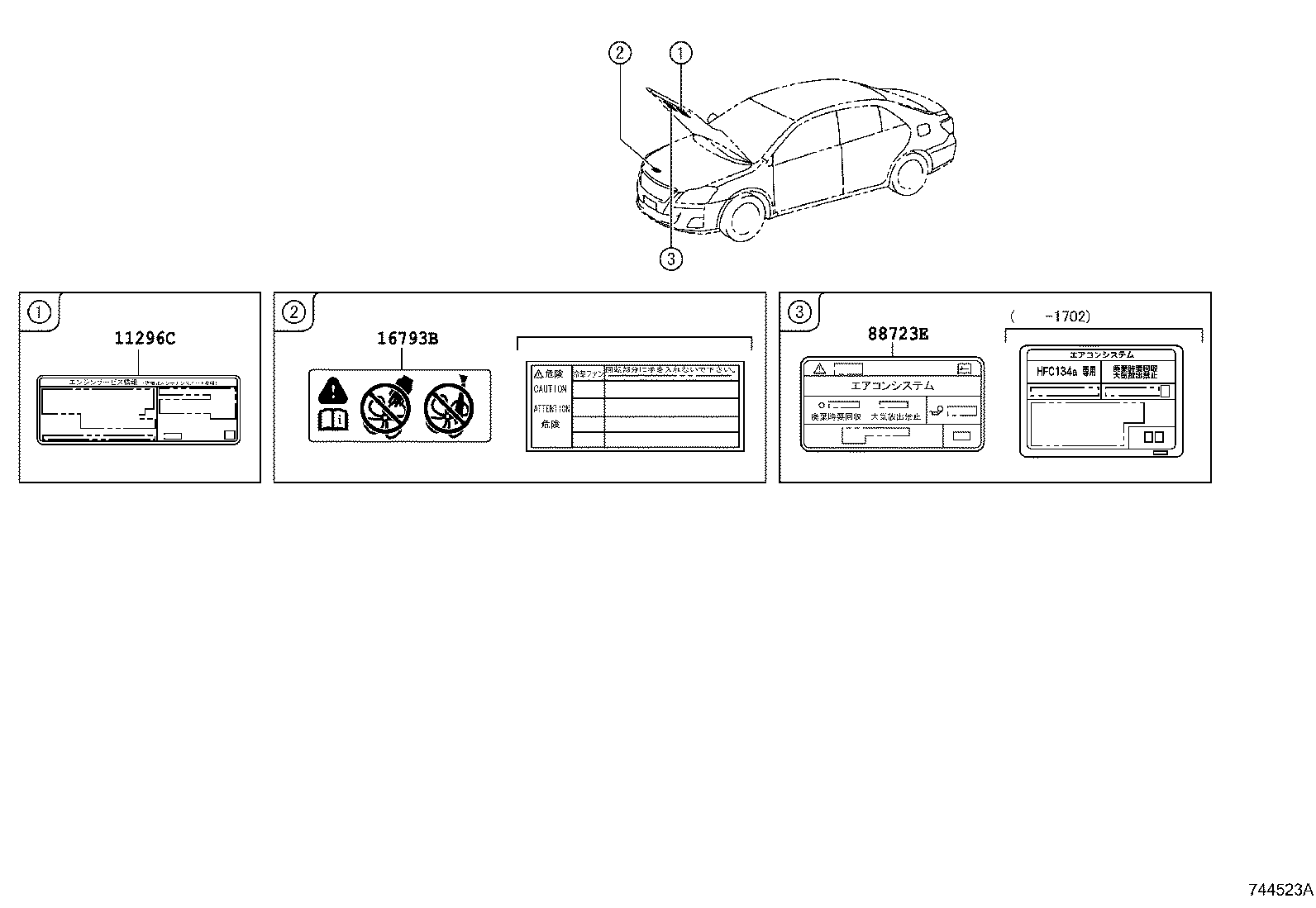

ｴﾝｼﾞﾝﾙｰﾑ

diagram 11296C 16793B 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-37010

2ZRFE,3ZRFAE..ZRT26#..CBU

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-28020

1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT26#..CBU

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-52020

NZT260,ZRT26#..CBU

 1
