ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

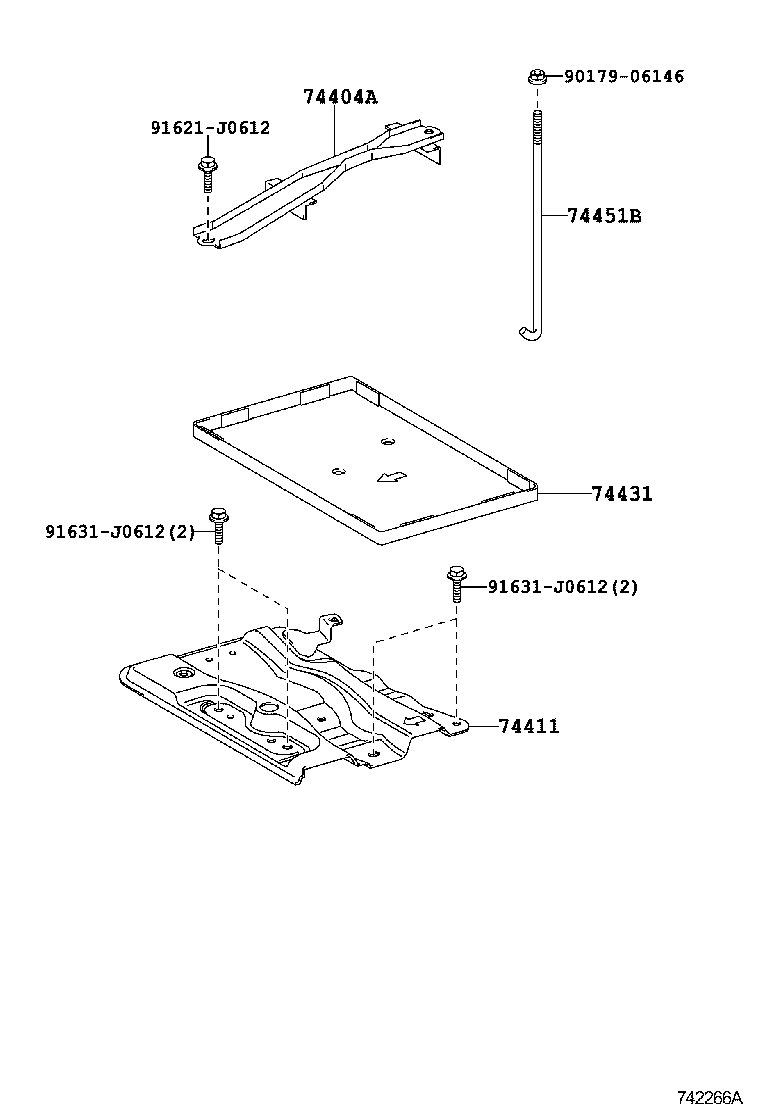

Click highlighted areas on diagram

diagram 74404A 74411 74431 74451B 9017906146 91621J0612 91631J0612 91631J0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-20640

NZT260,ZRT26#..CBU

 1
74411 - CARRIER, BATTERY
74410-20080

NZT260,ZRT26#..CBU

 1
74431 - TRAY, BATTERY
74431-20130

NZT260,ZRT26#..CBU

 1
74451B - BOLT, BATTERY CLAMP
74451-58011

NZT260,ZRT26#..CBU

 1
74451-10060

NZT260,ZRT26#..CBU

 1
Common parts
90179-06146
91621-J0612
91631-J0612
