ZRT265-AEXEK (2007)
Toyota Premio/Allion

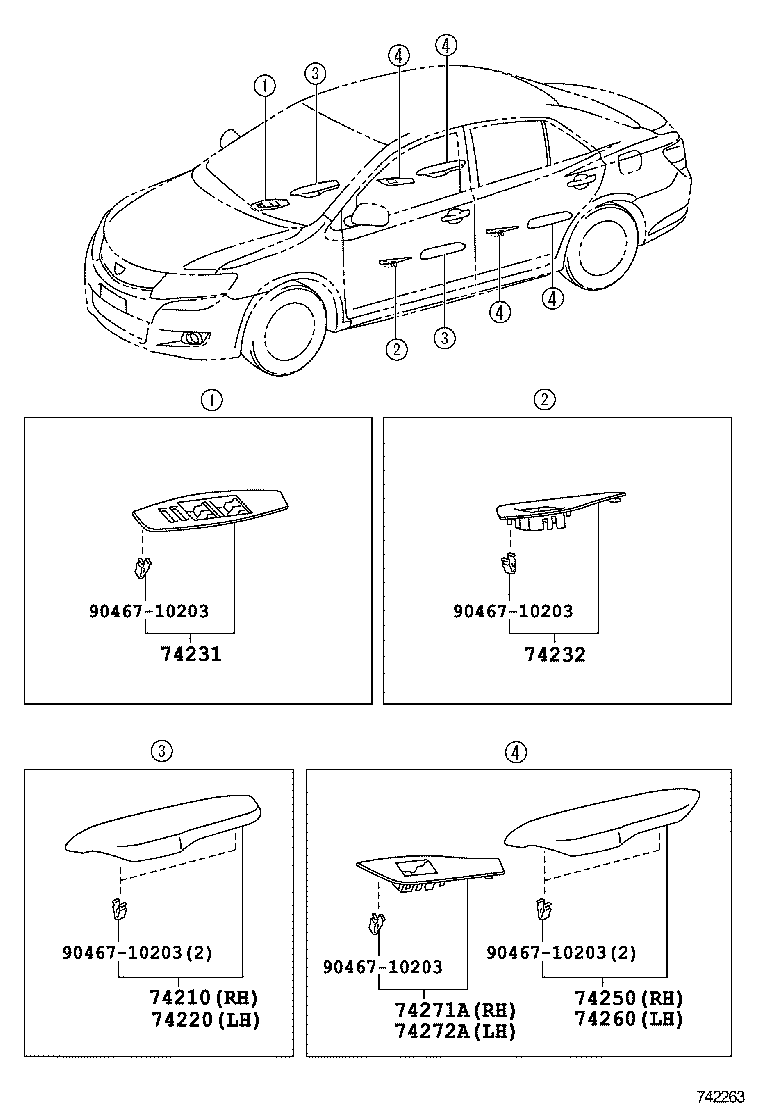

ILLUST NO. 1 OF 2(0705- )
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-20330B1 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 74210-20330E1 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-20330B1 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 74220-20330E1 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-20310C0 |
NZT260,ZRT260,265..CBU DK.RED,TRIM1# |
1 | ||
| 74231-20310E0 |
NZT260,ZRT260,265..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 74231-20310C0 |
NZT260,ZRT260,265..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-20360E0 |
NZT260,ZRT260,265..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 74232-20360C0 |
NZT260,ZRT260,265..CBU DK.RED,TRIM1# |
1 | ||
| 74232-20360C0 |
NZT260,ZRT260,265..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 74250 - ARMREST ASSY, REAR RH | ||||
| 74250-20150E1 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74250-20150B1 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 74260 - ARMREST ASSY, REAR LH | ||||
| 74260-20100B1 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 74260-20100E1 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-20050C0 |
NZT260,ZRT260,265..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 74271-20050C0 |
NZT260,ZRT260,265..CBU DK.RED,TRIM1# |
1 | ||
| 74271-20050E0 |
NZT260,ZRT260,265..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-20040E0 |
NZT260,ZRT260,265..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 74272-20040C0 |
NZT260,ZRT260,265..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 74272-20040C0 |
NZT260,ZRT260,265..CBU DK.RED,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

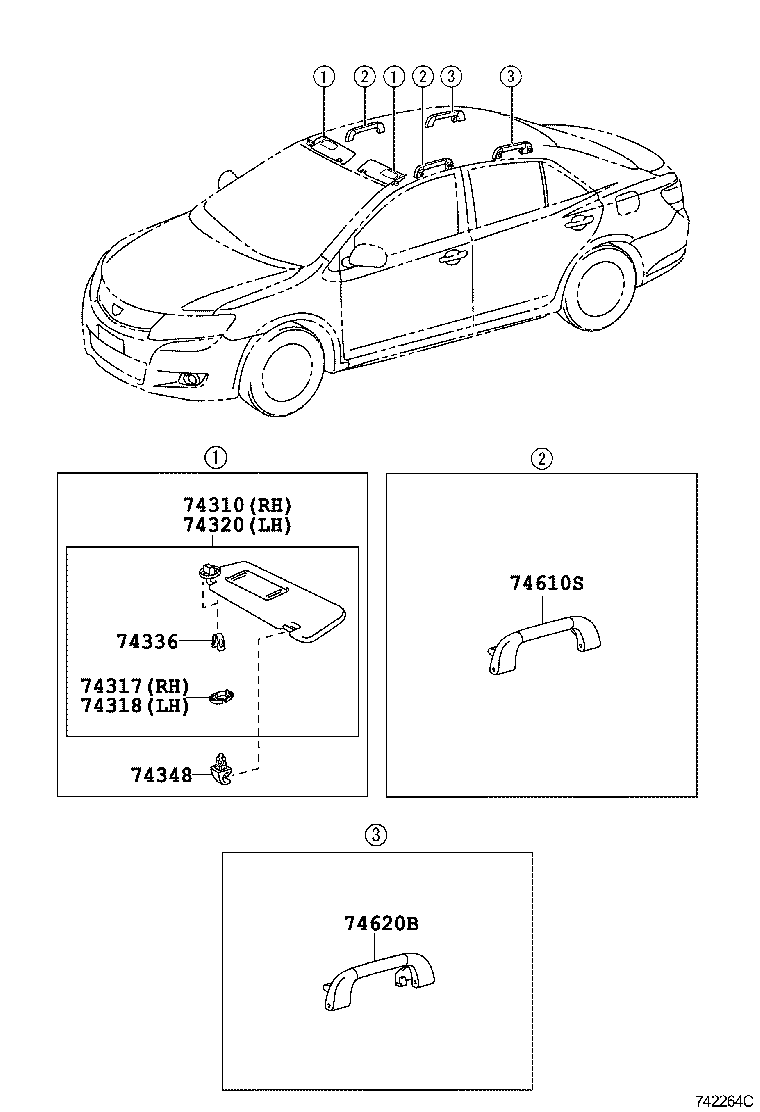

ILLUST NO. 2 OF 2(0705- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-20A00B0 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 74310-20A01E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74310-20A00E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74310-20A01B0 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74317-52010B1 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74318-52020B1 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-20A10E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74320-20A10B0 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 74320-20A11B0 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 74320-20A11E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
NZT260,ZRT26#..CBU |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
2 | ||
| 74348-33040E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-52020B1 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
2 | ||
| 74610-52020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-52030B1 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
2 | ||
| 74610-52030E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
