ZRT265-AEXEK (2007)
Toyota Premio/Allion

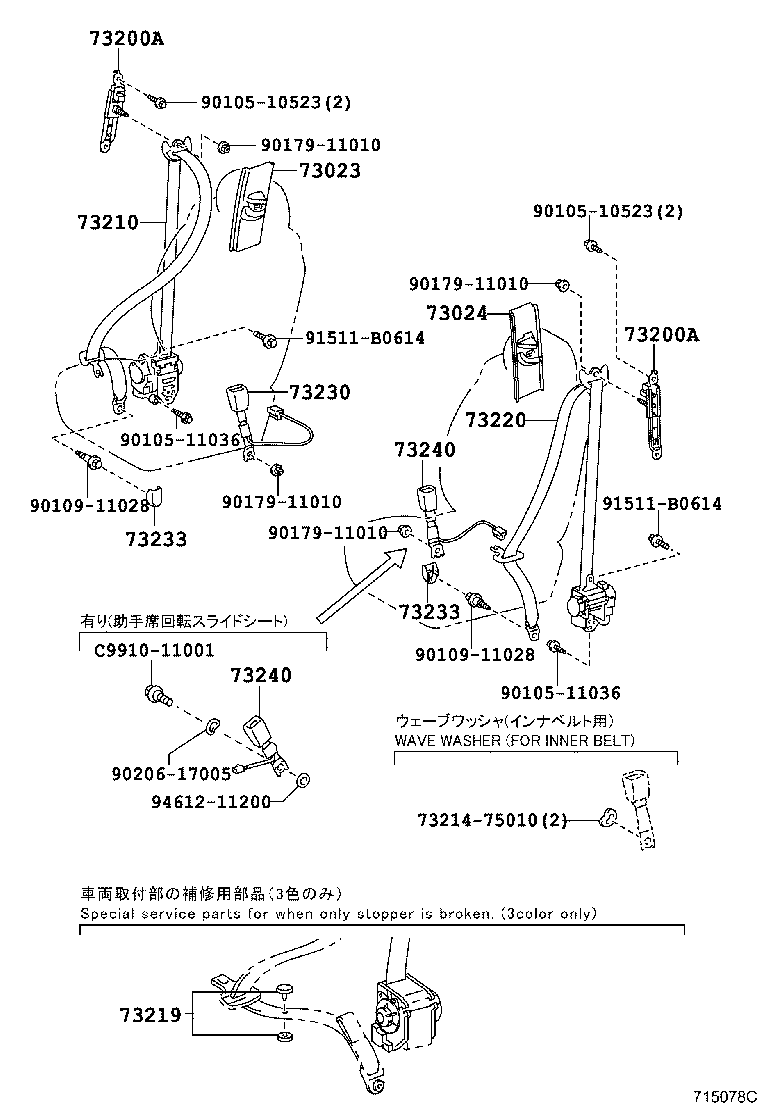

ILLUST NO. 1 OF 2(0705- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73023-53010B0 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53010B0 |
NZT260,ZRT26#..CBU LT.GRAY,TRIM1# |
1 | ||
| 73024-53010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
NZT260,ZRT26#..CBU |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
NZT260,ZRT26#..CBU |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-20A30C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73210-20A30E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-20890E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73220-20890C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-20A00E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73230-2B050E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 73230-20A00B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 73233-33010B8 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 73233-33010B8 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-20A10B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73230-20A10E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-20A10B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73230-20A10E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11036 | ||||
| 90109-11028 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 91511-B0614 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

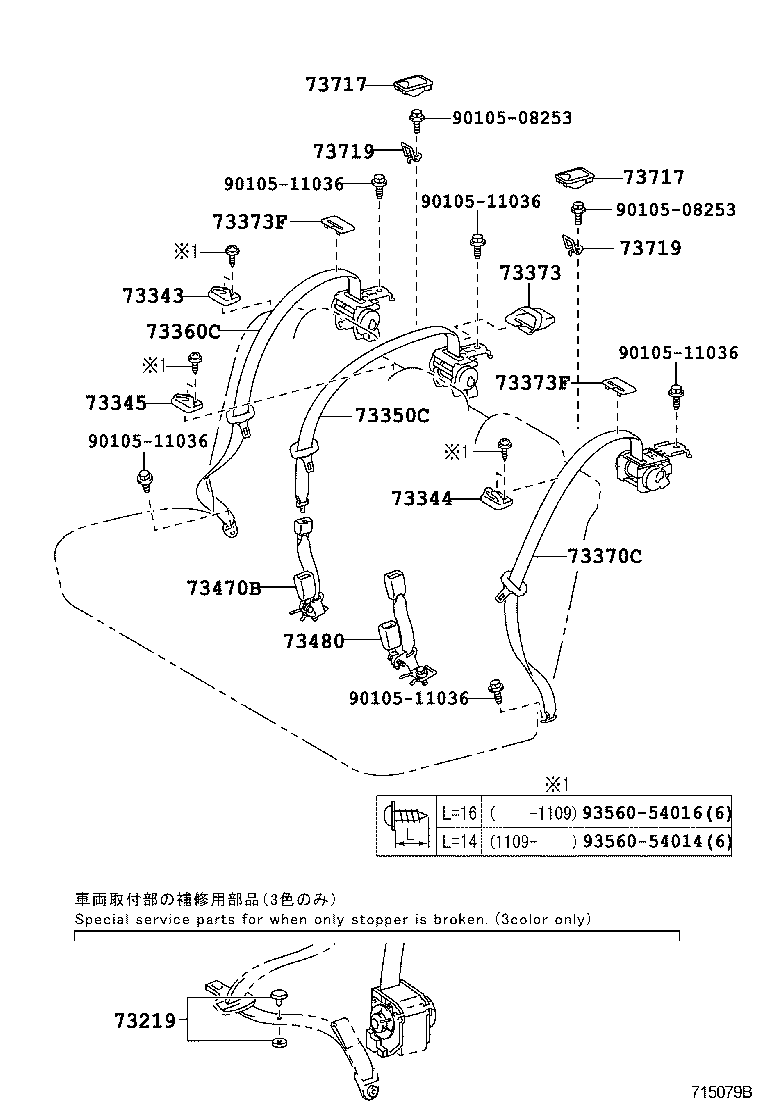

ILLUST NO. 2 OF 2(0705- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73343-33010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73344-33010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73343-33010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-20230C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73350-20230E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73350-20231C0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73350-20231E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-20810C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73360-20811C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73360-20811E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73360-20810E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-20600C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73370-20600E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73370-20601C0 |
NZT260,ZRT26#..CBU BLACK,TRIM1# |
1 | ||
| 73370-20601E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-22030E1 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73373-22030B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-33010B7 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 73373-33010E4 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-33010B7 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 73373-33010E4 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-20131E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73470-20130B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73470-20131B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73470-20130E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-20191B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73480-20191E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73480-20190E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 73480-20190B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-53020B2 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 73717-53020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-53020B2 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 73717-53020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
NZT260,ZRT26#..CBU |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
NZT260,ZRT26#..CBU |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11036 | ||||
| 93560-54014 | ||||
| 93560-54016 | ||||
