ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )

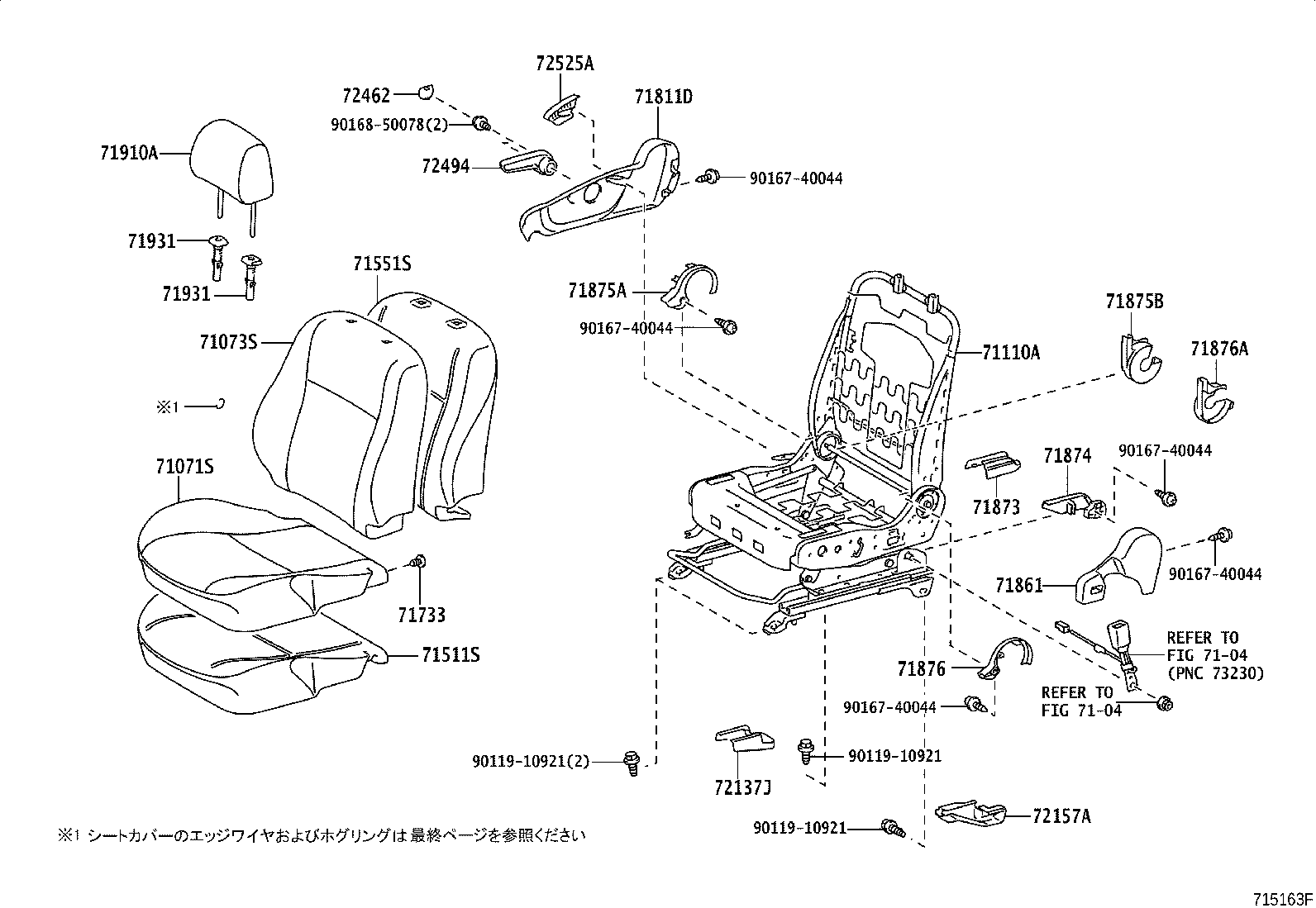

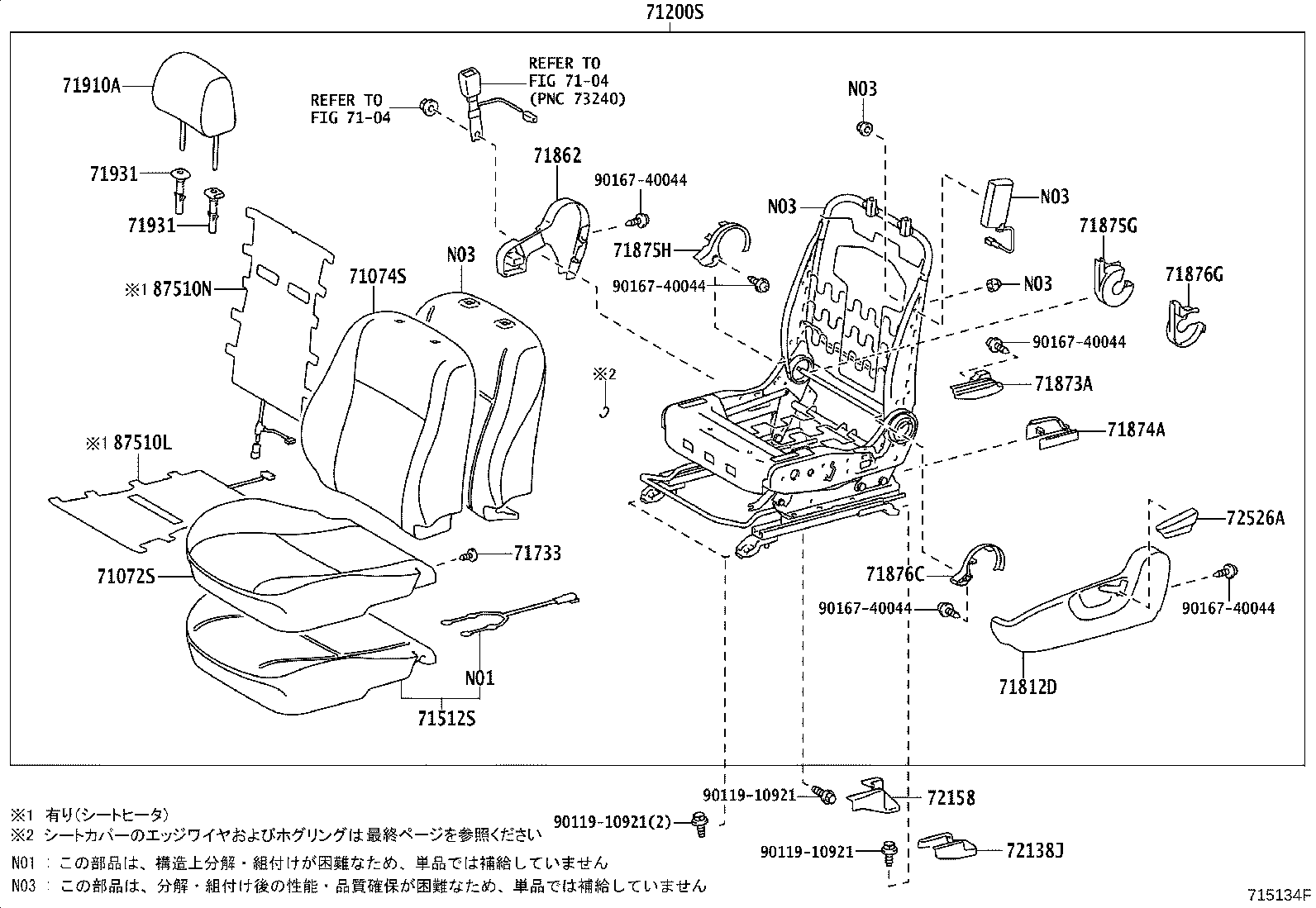

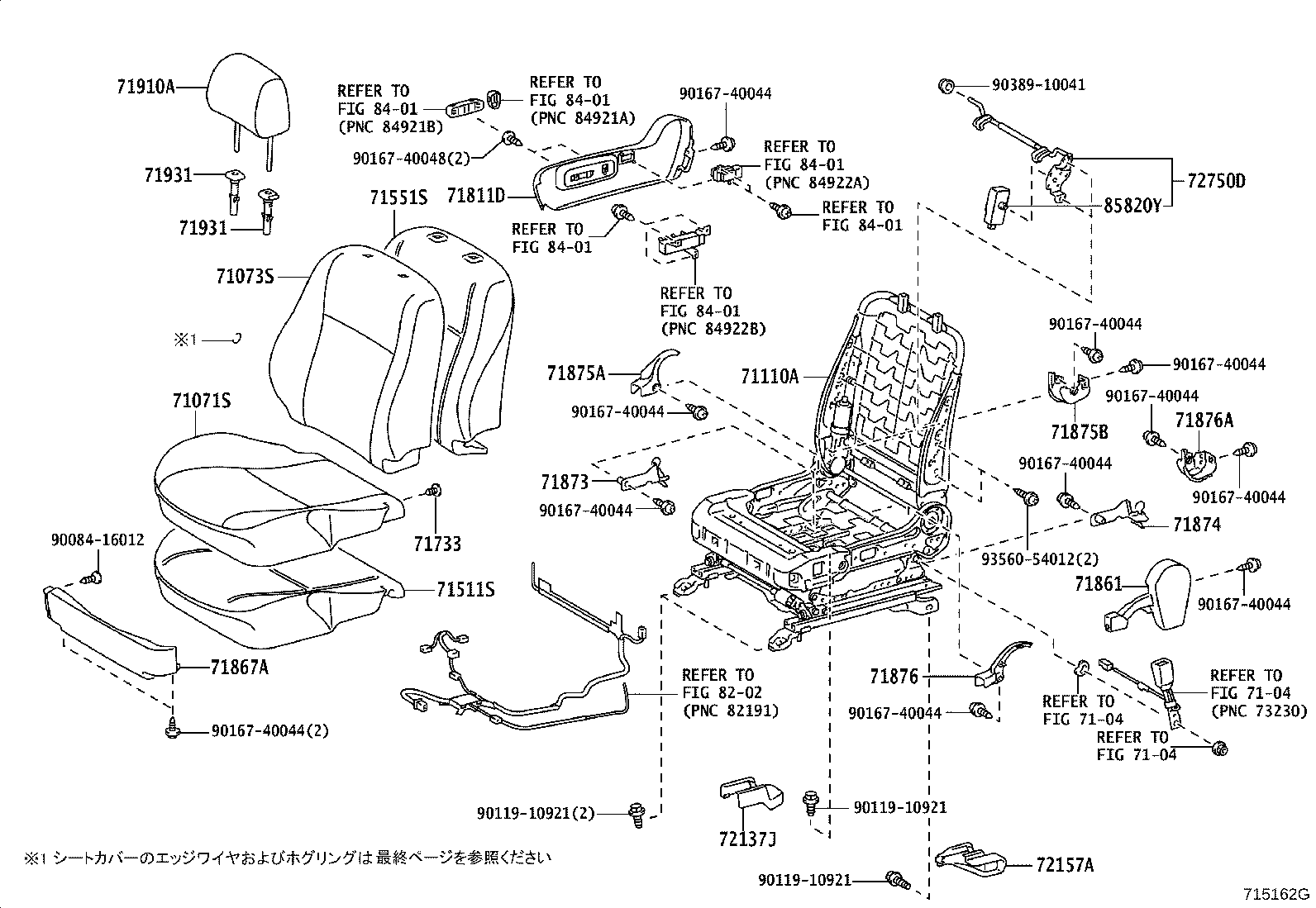

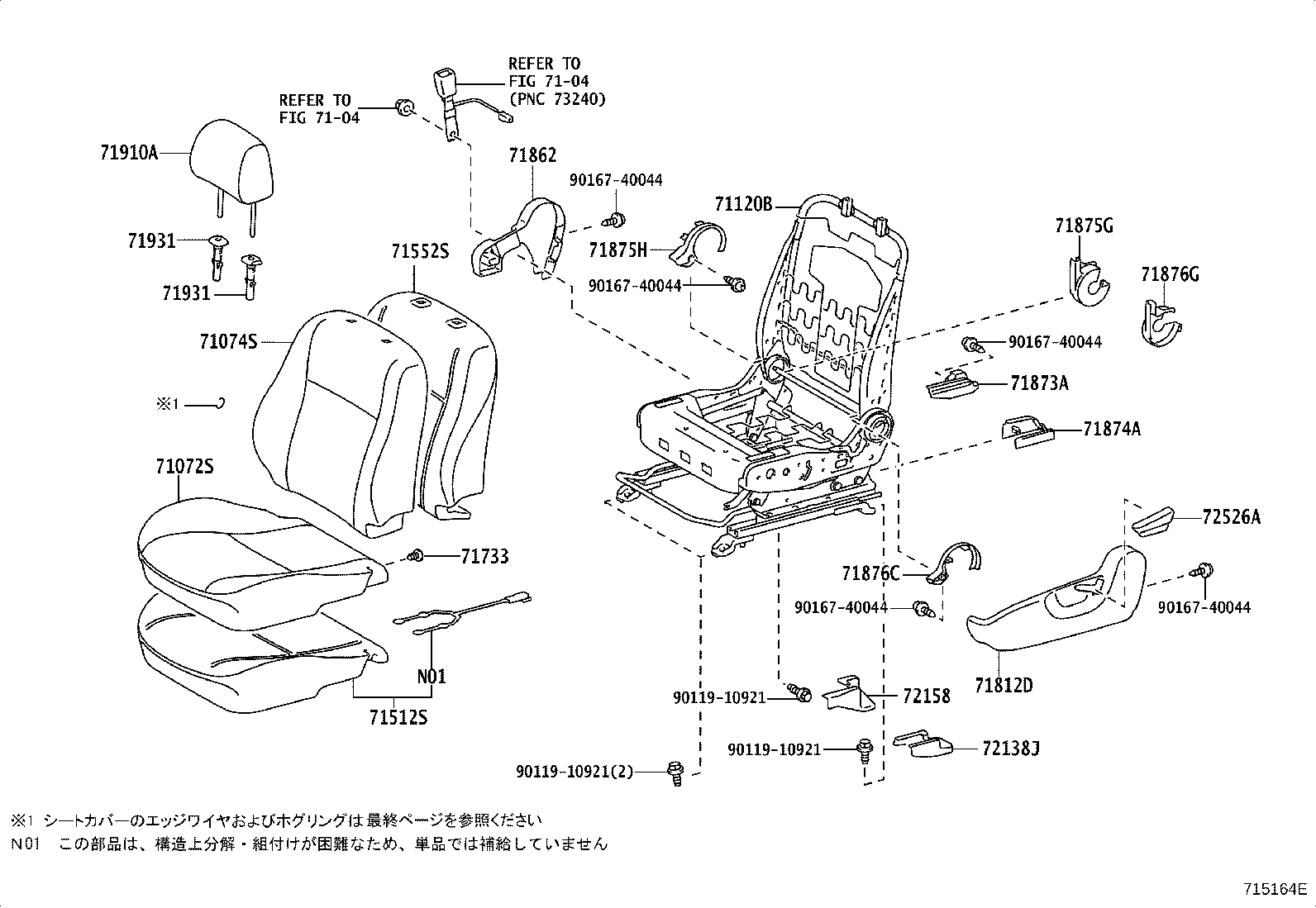

ｳﾝﾃﾝｾｷ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ&SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A80E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20B10E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B00E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71071-20A70E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A70B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A90E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B60B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71071-20B70B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A50E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A70E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71073-20A40B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A60E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A80E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A40E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20B40B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073-20A30B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71073-20B30B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||

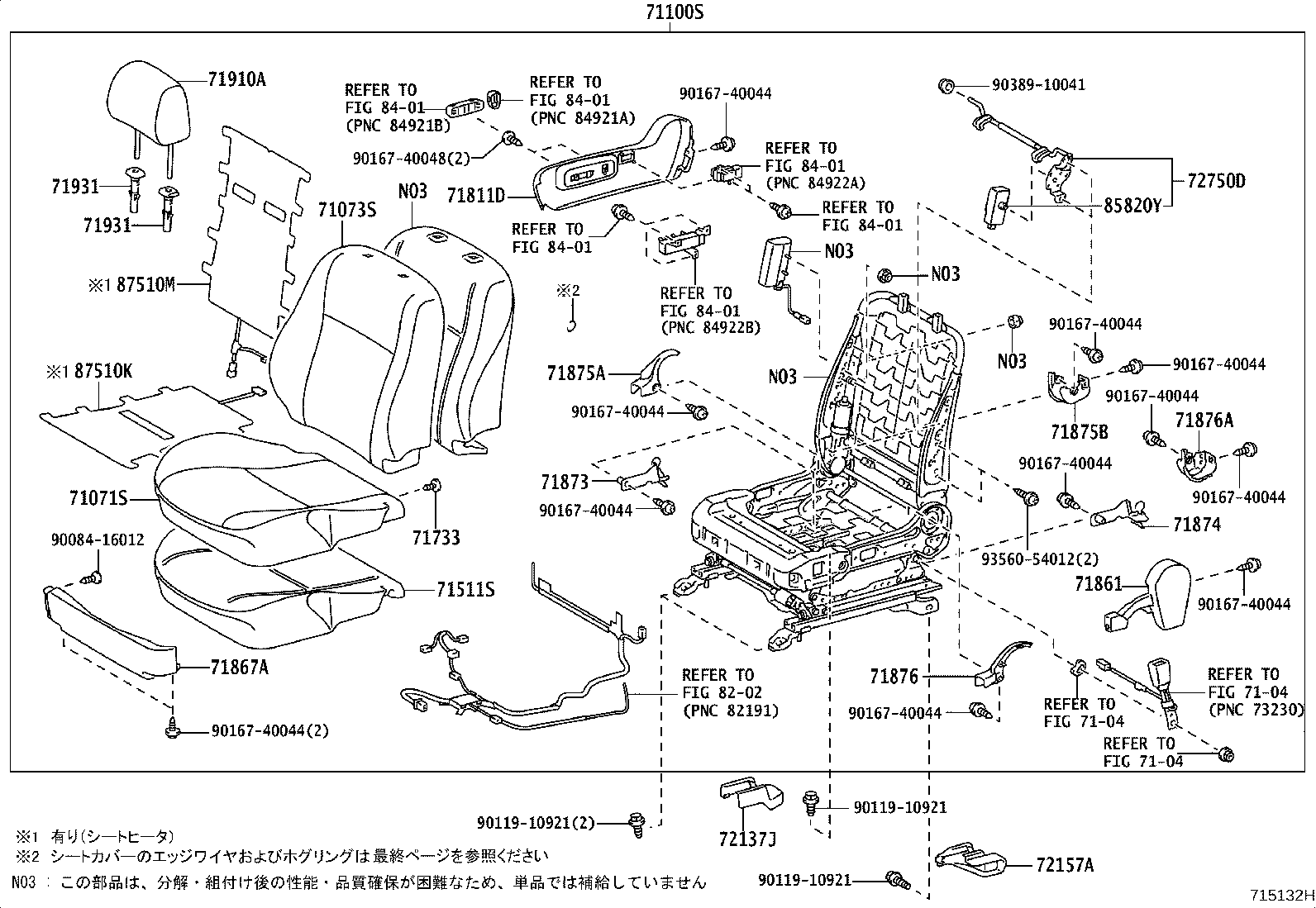

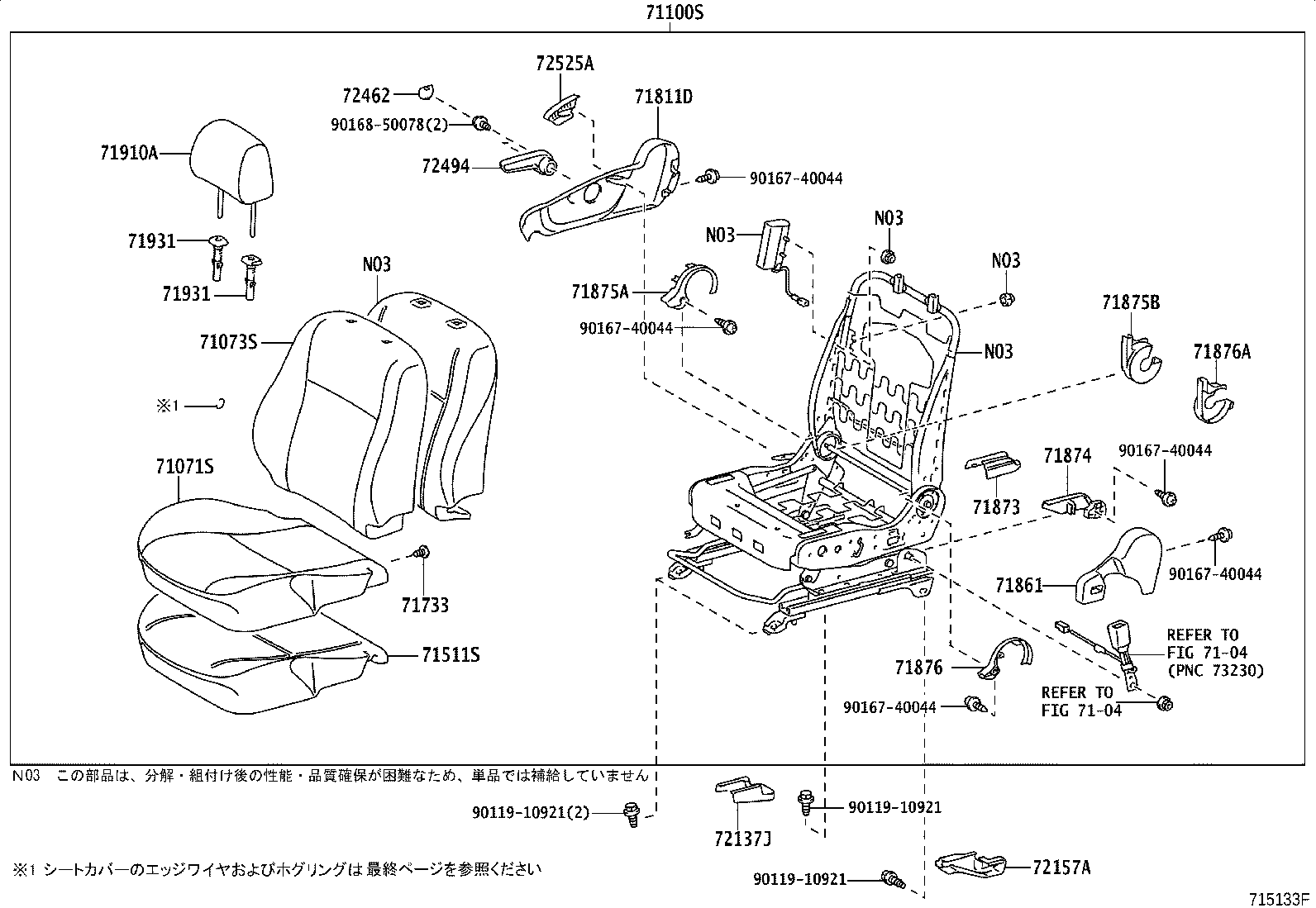

| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-20B30E1 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-20B30B1 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-20B40E1 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-20B40B1 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-20B80E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-20B30B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-20B30E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-20830 |
NZT260,ZRT26#..CBU |
1 | ||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 72125-20030 |
NZT260,ZRT26#..CBU |
4 | ||
| 72125-20030 |
NZT260,ZRT260,265..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20330E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71811-20330B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20150B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-20150E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-12040E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71867-12040E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71873-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71874-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71874-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71875-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71876-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71876-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A70B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-20110E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72137-20110B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72137-20120E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72157-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72157-20080E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 72750-48020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 85820-60130 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| Common parts | ||||
| 90084-16012 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(0705- )
ｳﾝﾃﾝｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A80E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20B10E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B00E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71071-20A70E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A70B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A90E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B60B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71071-20B70B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A50E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A70E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71073-20A40B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A60E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A80E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A40E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20B40B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073-20A30B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71073-20B30B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-20B30E1 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-20B30B1 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-20B40E1 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-20B40B1 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-20B80E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-20B30B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-20B30E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-20830 |
NZT260,ZRT26#..CBU |
1 | ||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 72125-20030 |
NZT260,ZRT26#..CBU |
4 | ||
| 72125-20030 |
NZT260,ZRT260,265..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20330E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71811-20330B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20150B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-20150E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71873-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71874-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71874-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71875-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71876-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71876-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A70B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-20110E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72137-20110B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72137-20120E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72157-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72157-20080E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-20040B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72462-20040E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-20020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72494-20020B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-20090E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72525-20090B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0705- )
ｼﾞｮｼｭｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-20A70B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-20A60E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71072-20A70E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20A60B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-20B00E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71072-20A90E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20B10E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20A80E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71072-20B60B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71072-20B70B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-20A60E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71072-20A70E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20A60B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71072-20A70B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-20A10B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71074-20A00B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-20A50E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-20A00E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71074-20B10B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A20E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71074-20B00B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71074-20A10E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-20A00B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A10B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A00E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71074-20A10E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-20A40B1 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-20A90E1 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71200-20A40E1 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71200-20A90B1 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-20A70E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71200-20A40B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-20A40E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 72125-20030 |
NZT260,ZRT26#..CBU |
4 | ||
| 72125-20030 |
NZT260,ZRT260,265..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20300B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-20300E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20150B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71862-20150E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71873-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71876-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A70B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72138-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20040B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72158-20040E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20130B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-20130E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0705- )
ｳﾝﾃﾝｾｷ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A80E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20B10E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B00E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71071-20A70E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A70B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A90E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B60B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71071-20B70B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A50E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A70E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71073-20A40B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A60E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A80E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A40E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20B40B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073-20A30B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71073-20B30B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-20080 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71110-20100 |
NZT260,ZRT26#..CBU |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-20830 |
NZT260,ZRT26#..CBU |
1 | ||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12830 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-20550 |
NZT260,ZRT26#..CBU |
1 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 72125-20030 |
NZT260,ZRT26#..CBU |
4 | ||
| 72125-20030 |
NZT260,ZRT260,265..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20330E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71811-20330B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20150B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-20150E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-12040E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71867-12040E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71873-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71874-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71874-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71875-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71876-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71876-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A70B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-20110E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72137-20110B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72137-20120E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72157-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72157-20080E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 72750-48020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 85820-60130 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| Common parts | ||||
| 90084-16012 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(0705- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A80E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-20B10E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B00E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71071-20A70E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A70B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A90E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20B60B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71071-20B70B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A60B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71071-20A70E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-20A60E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A50E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A70E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71073-20A40B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A60E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-20A80E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A40E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20B40B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-20A30E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71073-20A30B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71073-20B30B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71073-20A40B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-20080 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71110-20100 |
NZT260,ZRT26#..CBU |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-20830 |
NZT260,ZRT26#..CBU |
1 | ||
| 71511-12B60 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12830 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-20550 |
NZT260,ZRT26#..CBU |
1 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 72125-20030 |
NZT260,ZRT26#..CBU |
4 | ||
| 72125-20030 |
NZT260,ZRT260,265..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20330E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71811-12480E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71811-20330B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20150B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-20150E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71861-53060E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71873-30070 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71873-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71874-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71874-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874-30020 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71875-58030E1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71875-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71875-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71875-60150E2 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71876-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71876-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71876-58050 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A70B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-20110E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72137-20110B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72137-20120E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72157-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72157-20080E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-20040B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72462-20040E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-20020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72494-20020B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-20090E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72525-20090B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0705- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-20A70B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-20A60E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71072-20A70E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20A60B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-20B00E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71072-20A90E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20B10E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20A80E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71072-20B60B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71072-20B70B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-20A60E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71072-20A70E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-20A60B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71072-20A70B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-20A10B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71074-20A00B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-20A50E0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-20A00E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71074-20B10B0 |
NZT260,ZRT260,265..PRM..CBU SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A20E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71074-20B00B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71074-20A10E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-20A00B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A10B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-20A00E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 71074-20A10E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-20050 |
NZT260,ZRT26#..CBU |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20550 |
NZT260,ZRT26#..CBU |
1 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 72125-20030 |
NZT260,ZRT26#..CBU |
4 | ||
| 72125-20030 |
NZT260,ZRT260,265..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20300B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-20300E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20150B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71862-20150E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71873-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71874-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71875-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 71876-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A40E0 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 71910-20A20B0 |
NZT260,ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
NZT260,ZRT260,265..PRM..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
2 | ||
| 71910-20A70B0 |
NZT260,ZRT260,265..PRM..CBU DK.GRAY,TRIM1# |
1 | ||
| 71910-20A30E0 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
2 | ||
| 71910-20A20E0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
2 | ||
| 71910-20A20B0 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT26#..CBU ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZT260,ZRT26#..CBU ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT26#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020E0 |
NZT260,ZRT260,265..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZT260,ZRT260,265..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-20070B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72138-20070E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20040B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72158-20040E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20130B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-20130E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0705- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
