ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

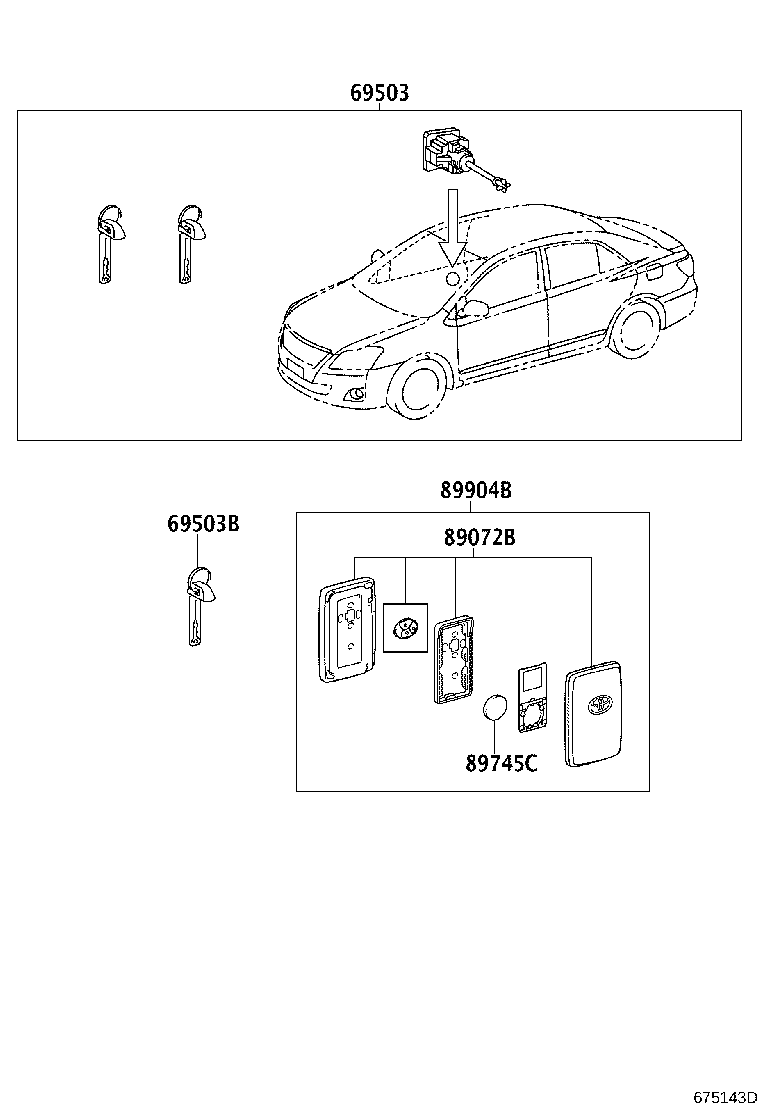

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-20A00

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 1
69005-12C90

NZT260,ZRT26#..CBU

 1
69503B - KEY, CUT
69515-52110

NZT260,ZRT26#..CBU

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-12460

NZT260,ZRT26#..CBU

 1
89072-12460

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 2
89072-12460

NZT260,ZRT26#..CBU

 2
89072-12460

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 1
89745C - BATTERY, TRANSMITTER
89745-52020

NZT260,ZRT26#..CBU

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-12020

NZT260,ZRT26#..CBU

 2
89904-12020

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 1
89904-12011

NZT260,ZRT260,265..CBU

Standard Package *(U) or “Version C”*(C)

 2
89904-12011

NZT260,ZRT26#..CBU

 2
