ZRT265-AEXEK (2007)
Toyota Premio/Allion

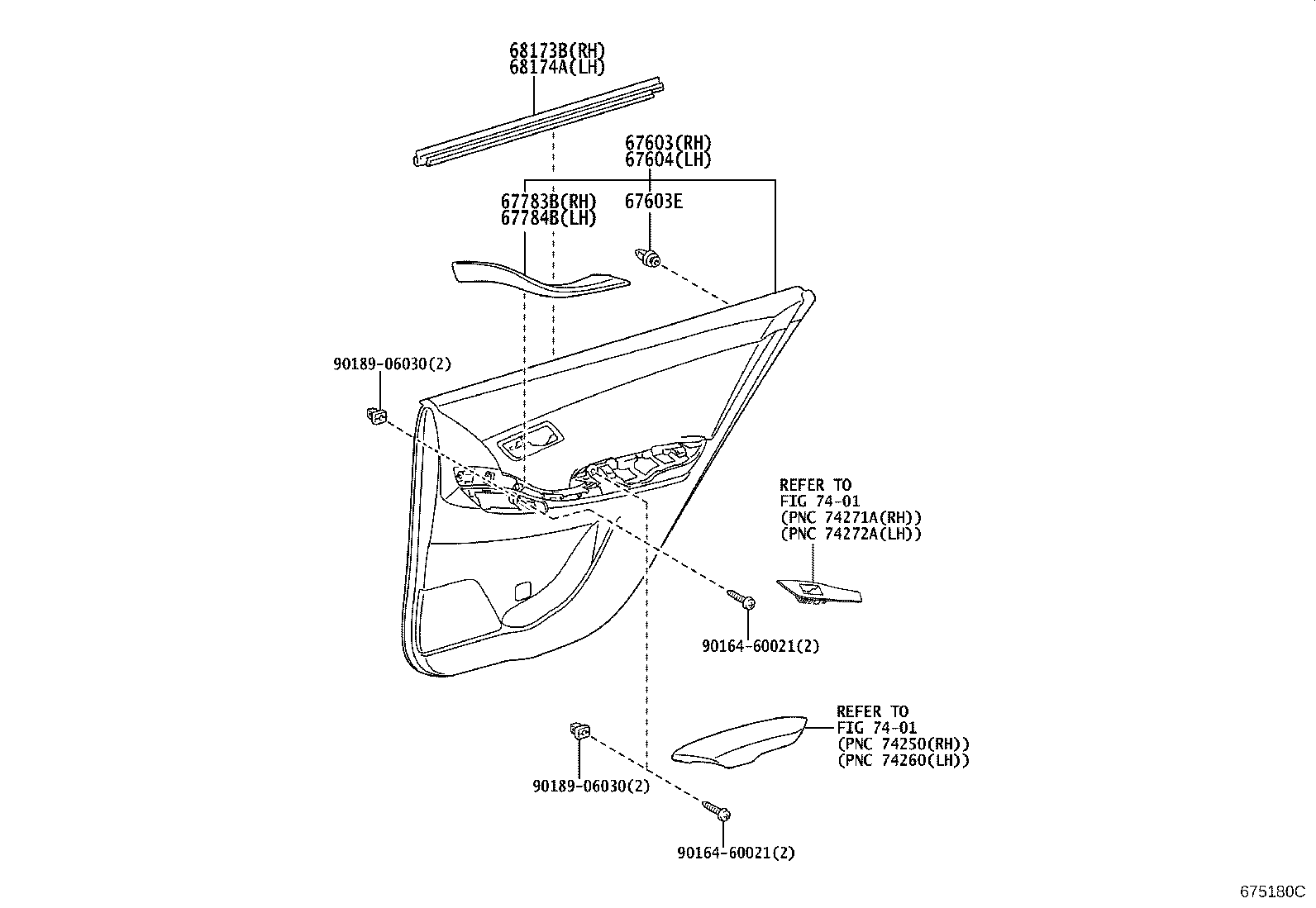

ILLUST NO. 2 OF 2(0705- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-20A20E0 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67630-20A10B1 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67630-20A00E0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67630-20A00B0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67630-20A00B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67630-20A00E0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67630-20A00B1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67630-20A00B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 67630-20A00E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 67630-20A00E1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67630-20A00E1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67630-20A00B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67630-20A10B3 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67630-20A20E1 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NZT260,ZRT260,265..CBU |
18 | ||
| 90467-09206 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ |
18 | ||
| 90467-09206 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
18 | ||
| 90467-09206 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P) |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-20A00E0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67640-20A00B0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67640-20A00B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67640-20A20E0 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67640-20A00B1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67640-20A00B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67640-20A00E0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67640-20A20E1 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67640-20A00E1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67640-20A10B1 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67640-20A00E1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67640-20A10B3 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67640-20A00E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 67640-20A00B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 67783B - ORNAMENT SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67783-20290B0 |
NZT260,ZRT26#..CBU GRAY,TRIM1#,4# |
1 | ||
| 67784B - ORNAMENT SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67784-20290B0 |
NZT260,ZRT26#..CBU GRAY,TRIM1#,4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-20160 |
NZT260,ZRT26#..CBU |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06030 | ||||
| Linked diagrams | ||||
| 7401 | ||||

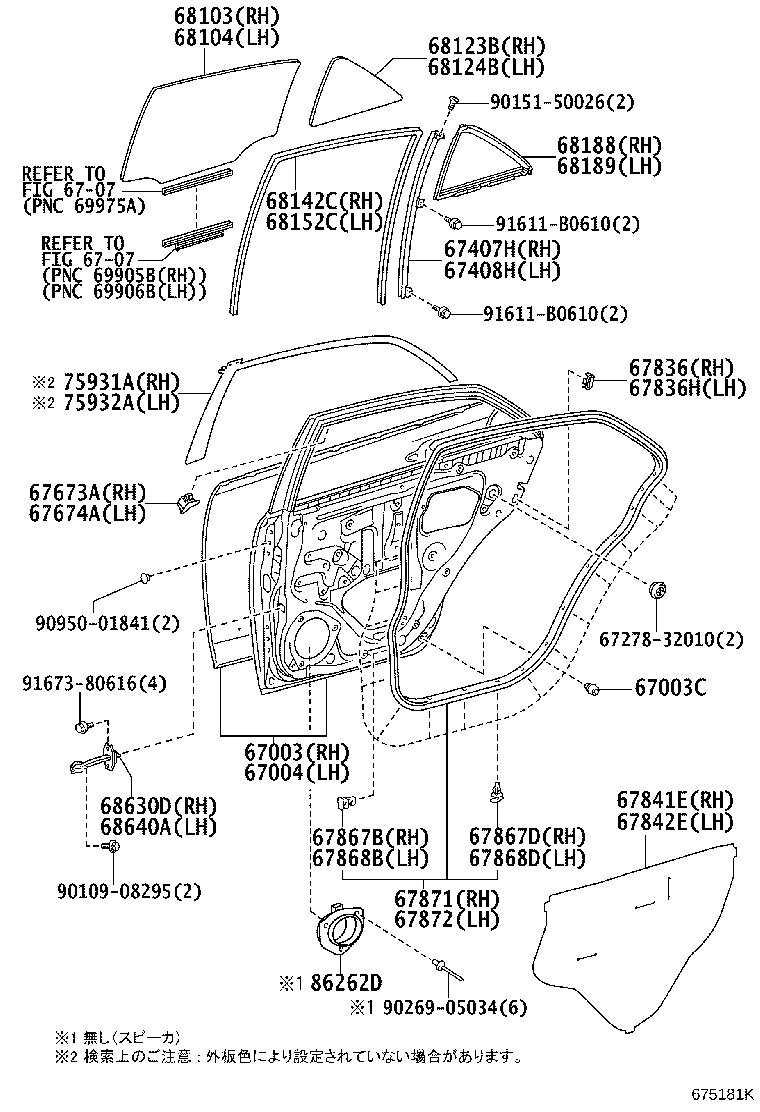

ILLUST NO. 1 OF 2(0705- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20820 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09138 |
NZT260,ZRT26#..CBU |
2 | ||
| 90541-09117 |
NZT260,ZRT26#..CBU |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20820 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-20320 |
NZT260,ZRT26#..CBU |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-20310 |
NZT260,ZRT26#..CBU |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
NZT260,ZRT26#..CBU |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
NZT260,ZRT26#..CBU |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
NZT260,ZRT26#..CBU |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
NZT260,ZRT26#..CBU |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-20390 |
NZT260,ZRT26#..CBU |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-20270 |
NZT260,ZRT26#..CBU |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-04034 |
NZT260,ZRT26#..CBU |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NZT260,ZRT26#..CBU |
16 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-04034 |
NZT260,ZRT26#..CBU |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NZT260,ZRT26#..CBU |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20360 |
NZT260,ZRT26#..CBU |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20360 |
NZT260,ZRT26#..CBU |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-20A10 |
ZRT26#..PRM..CBU *UVCT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 68113-20A00 |
NZT260,ZRT26#..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68113-20A10 |
ZRT260,265..PRM..CBU *UVCT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,“L package･Prime Seleﾓ狽奄盾氏h *(P) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-20880 |
NZT260,ZRT26#..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68114-20890 |
ZRT26#..PRM..CBU *UVCT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 68114-20890 |
ZRT260,265..PRM..CBU *UVCT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,“L package･Prime Seleﾓ狽奄盾氏h *(P) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-20780 |
ZRT260,265..PRM..CBU *TEM,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,“L package･Prime Selec狽奄盾氏h *(P) |
1 | ||
| 68123-20770 |
NZT260,ZRT26#..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123-20780 |
ZRT26#..PRM..CBU *TEM,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-20700 |
ZRT260,265..PRM..CBU *TEM,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,“L package･Prime Selec狽奄盾氏h *(P) |
1 | ||
| 68124-20690 |
NZT260,ZRT26#..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124-20700 |
ZRT26#..PRM..CBU *TEM,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,EXﾊﾟｯｹｰｼﾞ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-20240 |
NZT260,ZRT26#..CBU |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-20180 |
NZT260,ZRT26#..CBU |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-20240 |
NZT260,ZRT26#..CBU |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-20240 |
NZT260,ZRT26#..CBU |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-20150 |
NZT260,ZRT26#..CBU |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-20150 |
NZT260,ZRT26#..CBU |
1 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-20040 |
NZT260,ZRT26#..CBU |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-20030 |
NZT260,ZRT26#..CBU |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-13010 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 86262-20040 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| Common parts | ||||
| 67278-32010 | ||||
| 90109-08295 | ||||
| 90151-50026 | ||||
| 90269-05034 | ||||
| 90950-01841 | ||||
| 91611-B0610 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
