ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 69201-30040 |
NZT260,ZRT26#..CBU |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30040 |
NZT260,ZRT26#..CBU |
1 | ||
| 69201-28010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30040 |
NZT260,ZRT26#..CBU |
1 | ||
| 69202-28010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30040 |
NZT260,ZRT26#..CBU |
1 | ||
| 69202-28010 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20210B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 69205-20210E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20210E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 69206-20210B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20410D1 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 69210-20410A1 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-20410J0 |
NZT260,ZRT26#..PRM..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69210-20410B1 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 69210-20410D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 69211-28070A0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),SUPER WHITE 2,040 |
1 | ||
| 69210-20410A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 69210-20410C0 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 69211-28070A3 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),WHITE PEARL CS.,070 |
1 | ||
| 69211-28070C0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),BLACK MC.,209 |
1 | ||
| 69211-28070P2 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),SILVER ME.,1F7 |
1 | ||
| 69210-20410B0 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 69211-28070P7 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),GRAY ME.,1G2 |
1 | ||
| 69211-28070V4 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070X2 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),BLACKISH RED MC.,3R0 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69250-30010A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 69250-30010D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 69250-30010A7 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 69250-30010D2 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 69250-30010J3 |
NZT260,ZRT26#..PRM..CBU LT.BLUE ME.,8S7 |
1 | ||
| 69217-28010P2 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),SILVER ME.,1F7 |
1 | ||
| 69250-30010C2 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 69250-30010B2 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 69217-28010P8 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),GRAY ME.,1G2 |
1 | ||
| 69217-28010V4 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),LT.BLUE M.M.,8S7 |
1 | ||
| 69217-28010A3 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),WHITE PEARL CS.,070 |
1 | ||
| 69250-30010P2 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 69217-28010X3 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),BLACKISH RED MC.,3R0 |
1 | ||
| 69217-28010C0 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),BLACK MC.,209 |
1 | ||
| 69217-28010A0 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),SUPER WHITE 2,040 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69250-30020A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 69250-30020D2 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 69250-30020A6 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 69250-30020P1 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 69217-60020P0 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),SILVER ME.,1F7 |
1 | ||
| 69250-30020B2 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 69250-30020J3 |
NZT260,ZRT26#..PRM..CBU LT.BLUE ME.,8S7 |
1 | ||
| 69217-60020A1 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),WHITE PEARL CS.,070 |
1 | ||
| 69217-60020A2 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),SUPER WHITE 2,040 |
1 | ||
| 69250-30020C2 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 69250-30020D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 69217-60020P9 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),GRAY ME.,1G2 |
1 | ||
| 69217-60020V0 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),LT.BLUE M.M.,8S7 |
1 | ||
| 69217-60020C1 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),BLACK MC.,209 |
1 | ||
| 69217-60020X1 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),BLACKISH RED MC.,3R0 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-20410A1 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-20410A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 69210-20410D1 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 69210-20410B1 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 69210-20410C0 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 69210-20410J0 |
NZT260,ZRT26#..PRM..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69210-20410B0 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 69210-20410D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 69211-28070V4 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070C0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),BLACK MC.,209 |
1 | ||
| 69211-28070X2 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),BLACKISH RED MC.,3R0 |
1 | ||
| 69211-28070A0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),SUPER WHITE 2,040 |
1 | ||
| 69211-28070P2 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),SILVER ME.,1F7 |
1 | ||
| 69211-28070A3 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),WHITE PEARL CS.,070 |
1 | ||
| 69211-28070P7 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),GRAY ME.,1G2 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
NZT260,ZRT26#..CBU |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
NZT260,ZRT26#..CBU |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-20020E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 69283-20020B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-20010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 69284-20010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
NZT260,ZRT26#..CBU |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
NZT260,ZRT26#..CBU |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
NZT260,ZRT26#..CBU |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
NZT260,ZRT26#..CBU |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-42210 |
NZT260,ZRT26#..CBU |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-20190 |
NZT260,ZRT26#..CBU |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-20190 |
NZT260,ZRT26#..CBU |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NZT260,ZRT26#..CBU |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-12550 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C) |
1 | ||
| 69040-12560 |
NZT260,ZRT26#..CBU |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
NZT260,ZRT26#..CBU |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-68010 |
NZT260,ZRT26#..CBU 右側 |
1 | ||
| 89743-30130 |
NZT260,ZRT26#..CBU 左側 |
1 | ||
| Common parts | ||||
| 69296-48010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90164-50031 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 90386-08066 | ||||

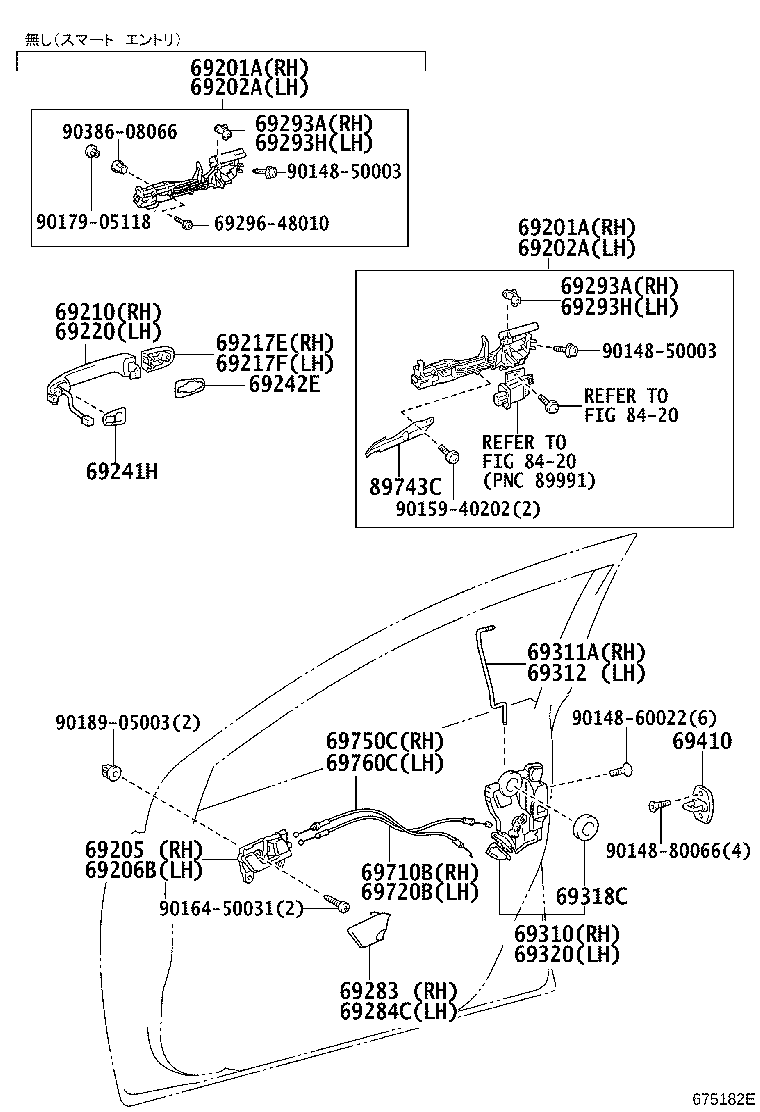

| Linked diagrams | ||||
| 8420 | ||||
