ZRT265-AEXEK (2007)
Toyota Premio/Allion

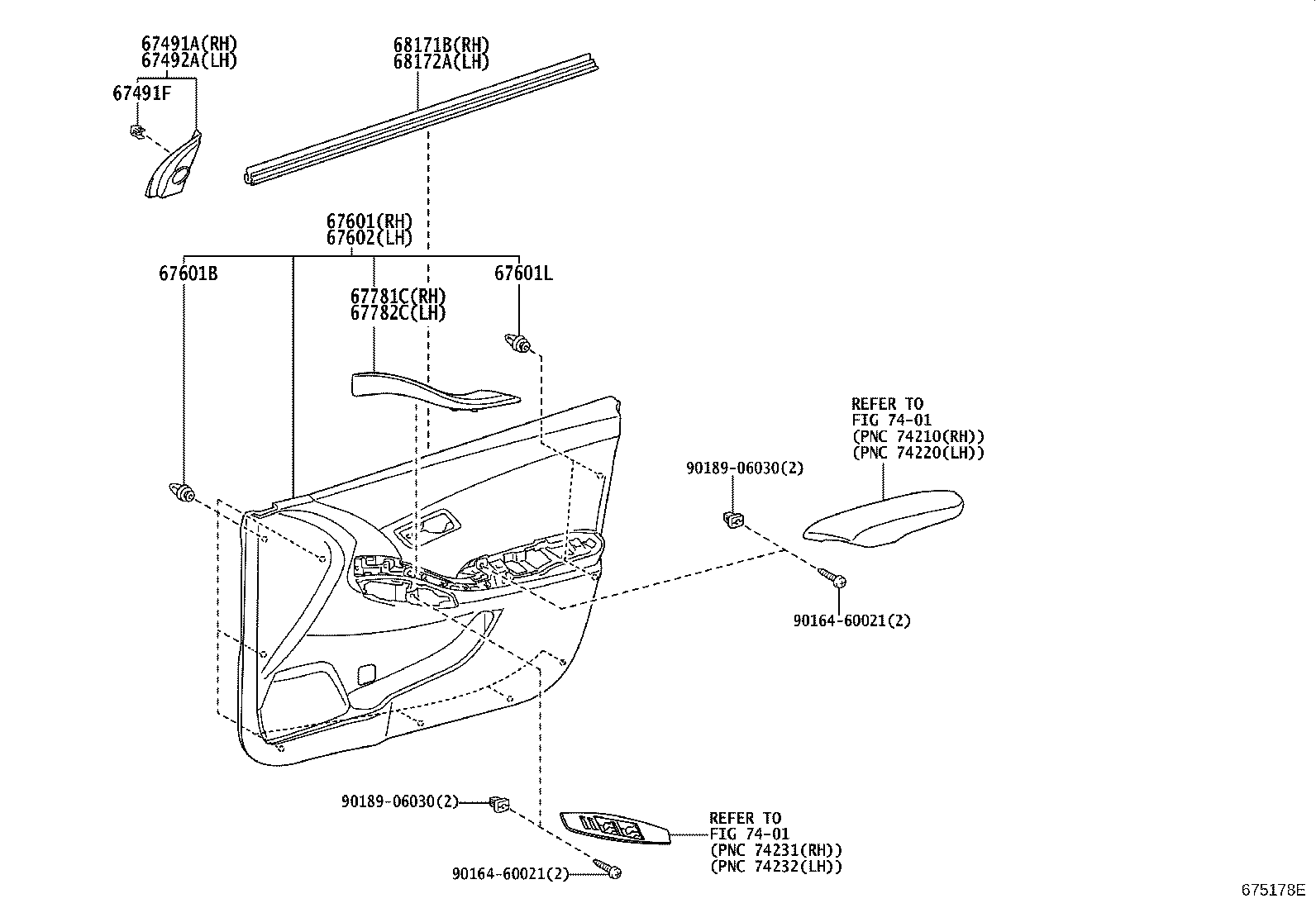

ILLUST NO. 2 OF 2(0705- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20420 |
NZT260,ZRT26#..CBU |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-10201 |
NZT260,ZRT26#..CBU |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20440 |
NZT260,ZRT26#..CBU |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-20A00B0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-20A00E0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67610-20A00B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-20A10B1 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67610-20A00E0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67610-20A20E0 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67610-20A00E1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67610-20A00B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-20A20E1 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67610-20A00E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 67610-20A00B1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-20A10B3 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67610-20A00E1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67610-20A00B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ |
14 | ||
| 90467-09206 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
14 | ||
| 90467-09206 |
NZT260,ZRT260,265..CBU |
14 | ||
| 90467-09206 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P) |
14 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ |
4 | ||
| 90467-09203 |
NZT260,ZRT260,265..CBU |
4 | ||
| 90467-09203 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ |
4 | ||
| 90467-09203 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P) |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-20A10E0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67620-20A10B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-20A10B0 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-20A20B1 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67620-20A10B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-20A10E0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67660-20260E0 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67620-20A10B1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-20A10E1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67620-20A10E1 |
NZT260,ZRT260,265..CBU L,Gﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 67620-20A10E1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE,TRIM4# |
1 | ||
| 67620-20A10B1 |
ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.GRAY,TRIM1# |
1 | ||
| 67660-20260E1 |
NZT260,ZRT260,265..CBU GREGE,TRIM4# |
1 | ||
| 67620-20A20B3 |
NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 67781C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67781-20740B0 |
NZT260,ZRT26#..CBU GRAY,TRIM1#,4# |
1 | ||
| 67782C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67782-20710B0 |
NZT260,ZRT26#..CBU GRAY,TRIM1#,4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-20140 |
NZT260,ZRT26#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-20130 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06030 | ||||
| Linked diagrams | ||||
| 7401 | ||||

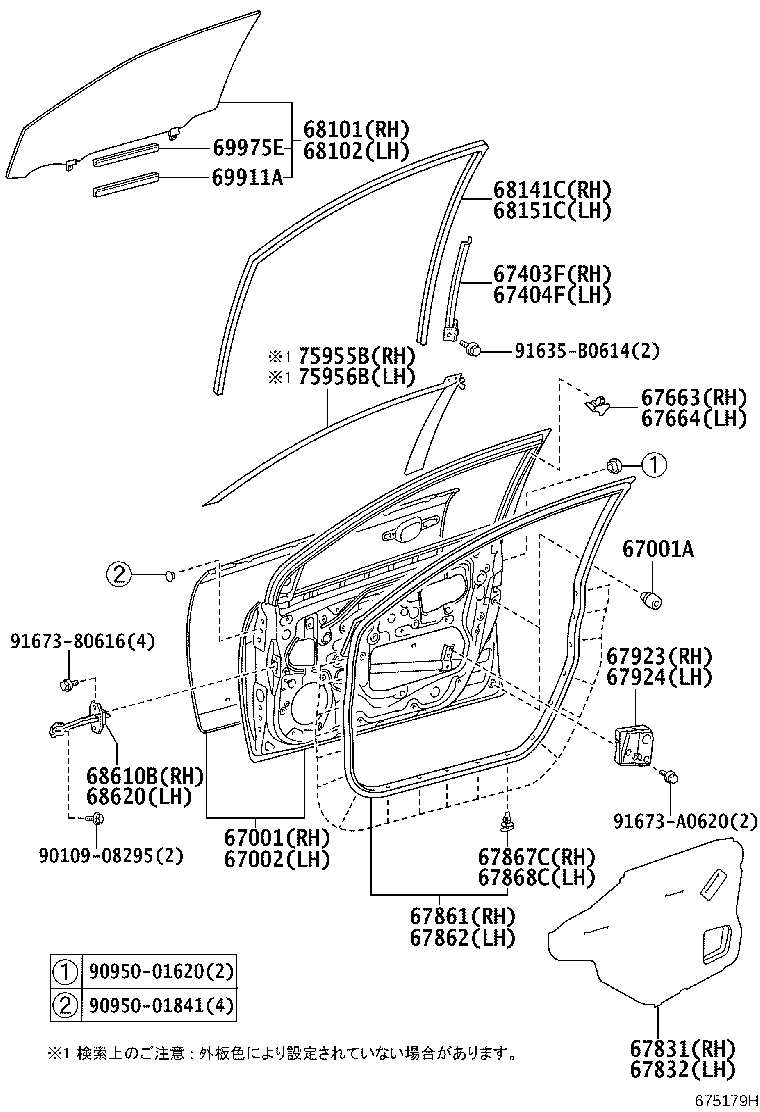

ILLUST NO. 1 OF 2(0705- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20A00 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09117 |
NZT260,ZRT26#..CBU |
4 | ||
| 90541-09138 |
NZT260,ZRT26#..CBU |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20A00 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-20160 |
NZT260,ZRT26#..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-20140 |
NZT260,ZRT26#..CBU |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-48010 |
NZT260,ZRT26#..CBU |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-48010 |
NZT260,ZRT26#..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20540 |
NZT260,ZRT26#..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20370 |
NZT260,ZRT26#..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20450 |
NZT260,ZRT26#..CBU |
1 | ||
| 67861-20460 |
NZT260,ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20460 |
NZT260,ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 67862-20450 |
NZT260,ZRT26#..CBU |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NZT260,ZRT26#..CBU |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NZT260,ZRT26#..CBU |
18 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-20100 |
NZT260,ZRT26#..CBU |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-20100 |
NZT260,ZRT26#..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-20330 |
NZT260,ZRT26#..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-20330 |
NZT260,ZRT26#..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-20330 |
NZT260,ZRT26#..CBU |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-20140 |
NZT260,ZRT26#..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-20210 |
NZT260,ZRT26#..CBU |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-20210 |
NZT260,ZRT26#..CBU |
1 | ||
| 69911A - CHANNEL, FRONT DOOR GLASS, NO.1 | ||||
| 69911-13010 |
NZT260,ZRT26#..CBU |
2 | ||
| 69955-47010 |
NZT260,ZRT26#..CBU |
2 | ||
| 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 | ||||
| 69975-47010 |
NZT260,ZRT26#..CBU |
2 | ||
| 69975-16020 |
NZT260,ZRT26#..CBU |
2 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-20040 |
NZT260,ZRT26#..CBU |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-20030 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91635-B0614 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
