ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

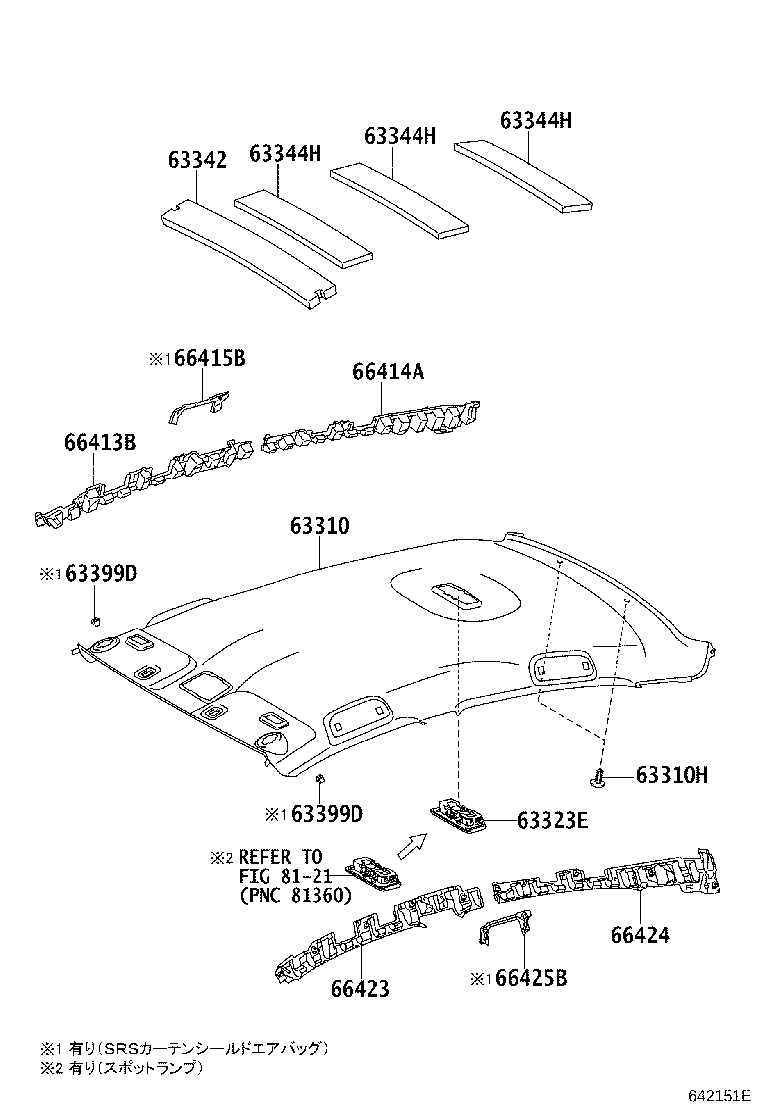

diagram 63310 63310H 63323E 63342 63344H 63344H 63344H 63399D 63399D 66413B 66414A 66415B 66423 66424 66425B 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-20A50E0

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 1
63310-20A50B0

NZT260,ZRT26#..CBU

LT.GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

NZT260,ZRT26#..CBU

LT.GRAY,TRIM1#

 2
90467-05164E2

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-20180

NZT260,ZRT26#..CBU

 1
63344H - PAD, ROOF SILENCER, NO.4
63344-33070

NZT260,ZRT26#..CBU

 3
63344H - PAD, ROOF SILENCER, NO.4
63344-33070

NZT260,ZRT26#..CBU

 3
63344H - PAD, ROOF SILENCER, NO.4
63344-33070

NZT260,ZRT26#..CBU

 3
63399D - CLIP, ROOF HEADLINING
63399-52020

NZT260,ZRT26#..CBU

SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)

 2
63399D - CLIP, ROOF HEADLINING
63399-52020

NZT260,ZRT26#..CBU

SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-20040

NZT260,ZRT26#..CBU

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-20040

NZT260,ZRT26#..CBU

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-20010

NZT260,ZRT26#..CBU

SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-20040

NZT260,ZRT26#..CBU

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-20040

NZT260,ZRT26#..CBU

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-20010

NZT260,ZRT26#..CBU

SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
Linked diagrams
8121
