ZRT265-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

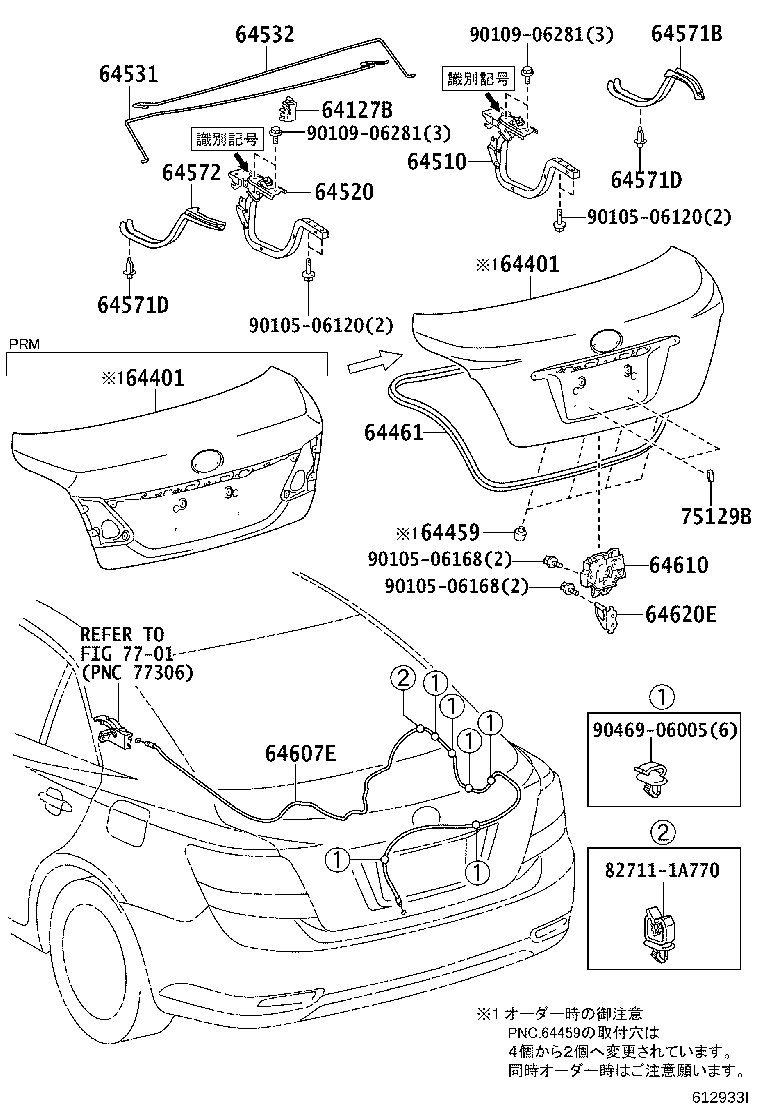

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-33041 |
NZT260,ZRT26#..CBU |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-20A40 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-20A40 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09116 |
NZT260,ZRT26#..CBU |
4 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20460 |
NZT260,ZRT26#..CBU |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-20250 |
NZT260,ZRT26#..CBU 識別記号=− |
1 | ||
| 64510-20230 |
NZT260,ZRT26#..CBU 識別記号=0 |
1 | ||
| 64510-20240 |
NZT260,ZRT26#..CBU 識別記号=+ |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-20230 |
NZT260,ZRT26#..CBU 識別記号=+ |
1 | ||
| 64520-20240 |
NZT260,ZRT26#..CBU 識別記号=− |
1 | ||
| 64520-20220 |
NZT260,ZRT26#..CBU 識別記号=0 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20660 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20670 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-20020 |
NZT260,ZRT26#..CBU |
1 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-07076C0 |
NZT260,ZRT26#..CBU BLACK |
6 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-07076C0 |
NZT260,ZRT26#..CBU BLACK |
6 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64572-20020 |
NZT260,ZRT26#..CBU |
1 | ||
| 64607E - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-20A00 |
NZT260,ZRT26#..CBU |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-12010 |
NZT260,ZRT26#..CBU |
1 | ||
| 64600-52010 |
NZT260,ZRT26#..CBU |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64621-33010 |
NZT260,ZRT26#..CBU |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-21010 |
NZT260,ZRT26#..CBU |
2 | ||
| 75129-13020 |
NZT260,ZRT26#..CBU |
2 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90109-06281 | ||||
| 90469-06005 | ||||
| Linked diagrams | ||||
| 7701 | ||||
