ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

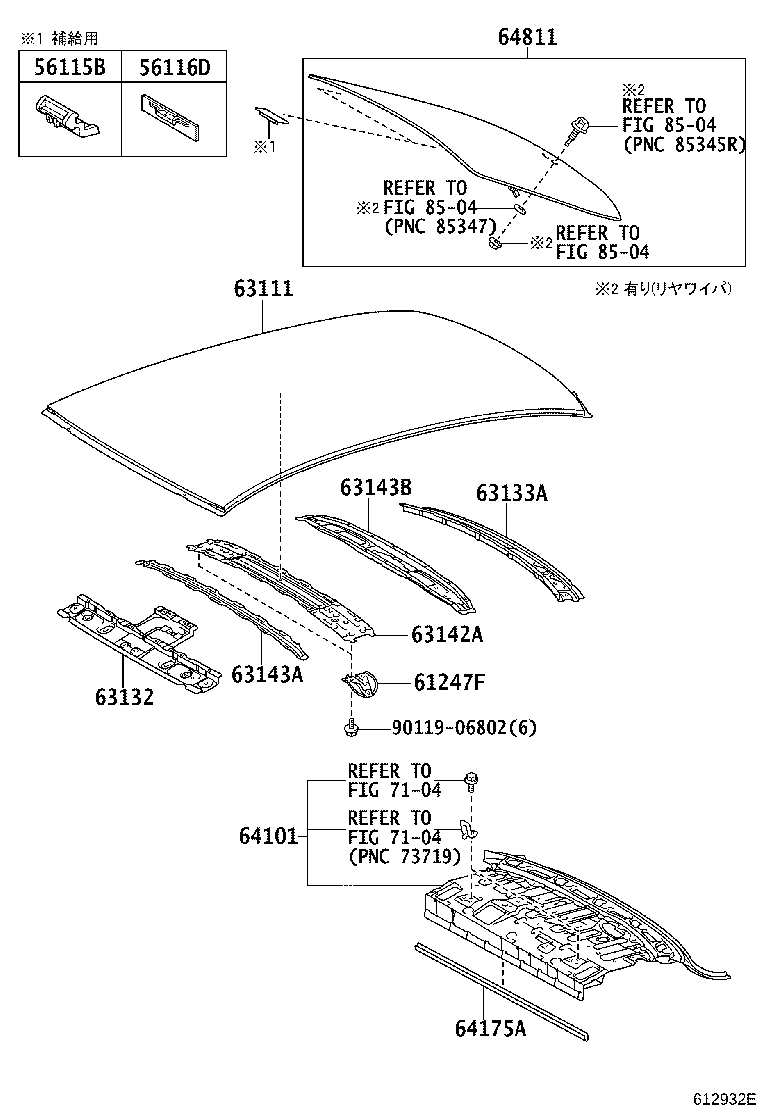

Click highlighted areas on diagram

diagram 56115B 56116D 61247F 63111 63132 63133A 63142A 63143A 63143B 64101 64175A 64811 7104 7104 8504 8504 8504 9011906802
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-22010

NZT260,ZRT26#..CBU

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

NZT260,ZRT26#..CBU

 2
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-20030

NZT260,ZRT26#..CBU

 2
63111 - PANEL, ROOF
63111-20680

NZT260,ZRT26#..CBU

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-20350

NZT260,ZRT26#..CBU

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20280

NZT260,ZRT26#..CBU

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63103-20180

NZT260,ZRT26#..CBU

 1
63143A - REINFORCEMENT, ROOF PANEL
63104-20090

NZT260,ZRT26#..CBU

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63144-20070

NZT260,ZRT26#..CBU

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20A00

NZT260,ZRT26#..CBU

 1
64175A - PROTECTOR, LOWER BACK RAIL
64279-20050B0

NZT260,ZRT26#..CBU

DK.GRAY,TRIM1#

 1
64279-20050E0

NZT260,ZRT26#..CBU

GREGE,TRIM4#

 1
64811 - GLASS, BACK WINDOW
64801-20240

NZT260,ZRT26#..CBU

*UVCEHT,厚さ=2.8,ｸﾞﾘｰﾝ,ﾃﾚﾋﾞ&一体型VTR−有り(ﾁｭｰﾅ)

 1
64801-20260

ZRT26#..PRM..CBU

*EHT,厚さ=2.8,ｸｰﾙ ｸﾞﾘｰﾝ,EXﾊﾟｯｹｰｼﾞ&ﾃﾚﾋﾞ&一体型VTR−有閨iﾁｭｰﾅ)

 1
64801-20230

NZT260,ZRT26#..CBU

*UVCEHT,厚さ=2.8,ｸﾞﾘｰﾝ

 1
64801-20250

ZRT260,265..PRM..CBU

*EHT,厚さ=2.8,ｸｰﾙ ｸﾞﾘｰﾝ,“L package･Prime Selction” *(P)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ

 1
64801-20260

ZRT26#..PRM..CBU

*EHT,厚さ=2.8,ｸｰﾙ ｸﾞﾘｰﾝ,EXﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞCAM,FM,CD,MD,6ｽﾋﾟｰｶ

 1
64801-20240

NZT260,ZRT26#..CBU

*UVCEHT,厚さ=2.8,ｸﾞﾘｰﾝ,ｵｰﾃﾞｨｵ−ﾅﾋﾞ,ﾃﾚﾋﾞ,AM,FM,CDCMD,6ｽﾋﾟｰｶ

 1
64801-20250

ZRT26#..PRM..CBU

*EHT,厚さ=2.8,ｸｰﾙ ｸﾞﾘｰﾝ,EXﾊﾟｯｹｰｼﾞ

 1
Common parts
90119-06802
Linked diagrams
7104
8504
