ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

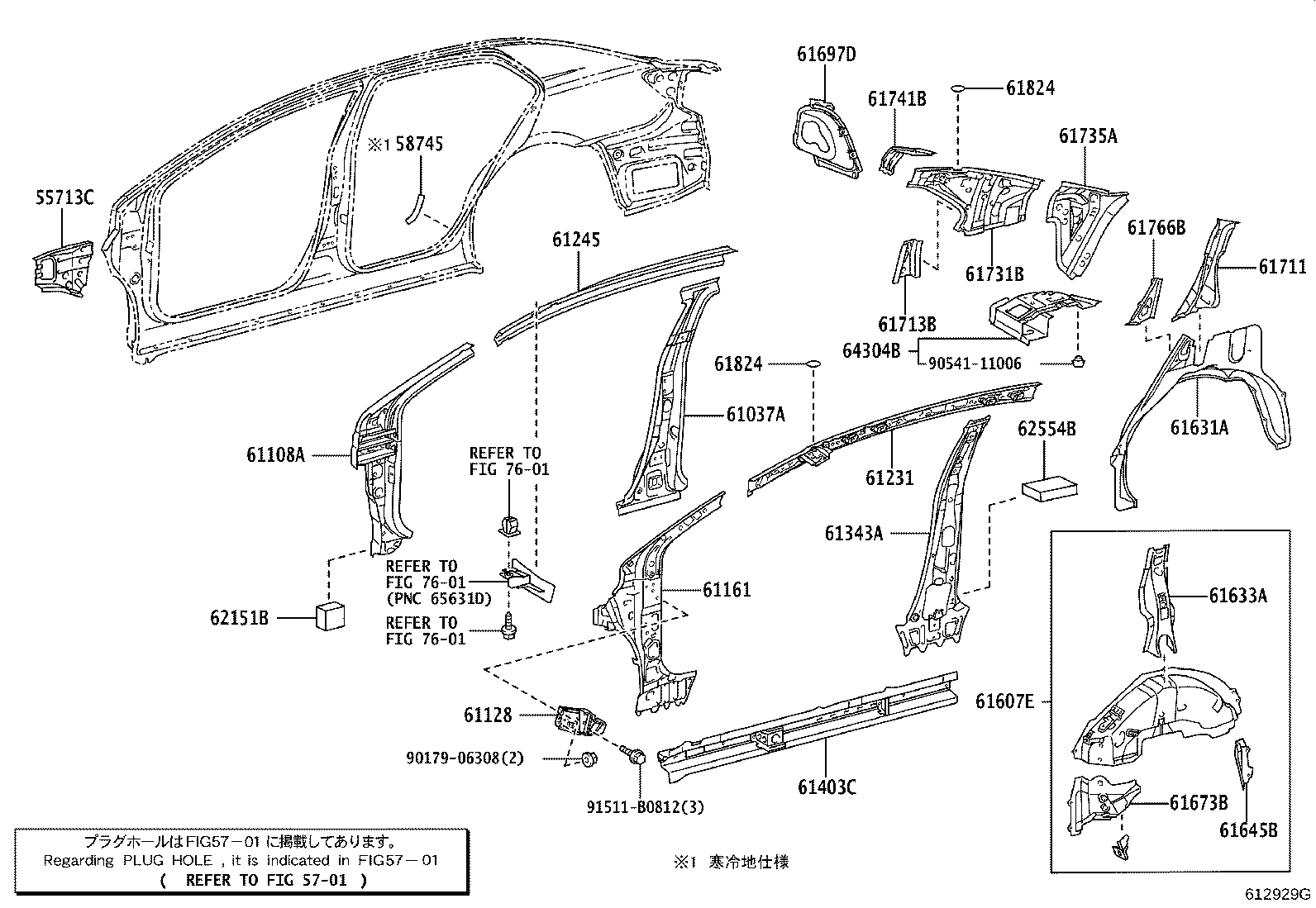

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ,RH

diagram 55713C 5701 58745 61037A 61108A 61128 61161 61231 61245 61343A 61403C 61607E 61631A 61633A 61645B 61673B 61697D 61711 61713B 61731B 61735A 61741B 61766B 61824 61824 62151B 62554B 64304B 7601 7601 7601 9017906308 9054111006 91511B0812
Part # Description Qty Price
55713C - PANEL, COWL TOP SIDE, RH
55713-20180

NZT260,ZRT26#..CBU

 1
58745 - PROTECTOR, QUARTER PANEL, FRONT RH
58741-20170

NZT260,ZRT26#..CBU

寒冷地仕様

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-20903

NZT260,ZRT26#..CBU

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-20160

NZT260,ZRT26#..CBU

 1
61128 - REINFORCEMENT, COWL SIDE PANEL, RH
61103-20330

NZT260,ZRT26#..CBU

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61023-20120

NZT260,ZRT26#..CBU

 1
61231 - RAIL, ROOF SIDE, INNER RH
61201-20080

NZT260,ZRT26#..CBU

 1
61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61245-20020

NZT260,ZRT26#..CBU

 1
61343A - PILLAR, CENTER BODY, INNER RH
61032-20040

NZT260,ZRT26#..CBU

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-20020

NZT260,ZRT26#..CBU

 1
61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-20935

ZRT265..CBU

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-20340

NZT260,ZRT26#..CBU

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61603-2B630

NZT260,ZRT26#..CBU

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-20160

NZT260,ZRT26#..CBU

 1
61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61673-32030

NZT260,ZRT26#..CBU

 1
61697D - HOUSING, QUARTER PANEL END, RH
61697-20901

NZT260,ZRT26#..CBU

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-20200

NZT260,ZRT26#..CBU

 1
61713B - REINFORCE, ROOF SIDE, OUTER RH
61713-20120

NZT260,ZRT26#..CBU

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-20380

NZT260,ZRT26#..CBU

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-20290

NZT260,ZRT26#..CBU

 1
61741B - REINFORCEMENT, BACK WINDOW OPENING, RH
61741-20040

NZT260,ZRT26#..CBU

 1
61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61766-20220

NZT260,ZRT26#..CBU

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12050

NZT260,ZRT26#..CBU

 4
61824 - PLATE, NOISE CONTROL, NO.1
61824-12050

NZT260,ZRT26#..CBU

 4
62151B - PAD, COWL SIDE SILENCER
62151-52010

NZT260,ZRT26#..CBU

 2
62554B - PAD, PILLAR, NO.4
62554-12180

NZT260,ZRT26#..CBU

 2
64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64304-20110

NZT260,ZRT26#..CBU

 1
Common parts
90179-06308
90541-11006
91511-B0812
Linked diagrams
5701
7601

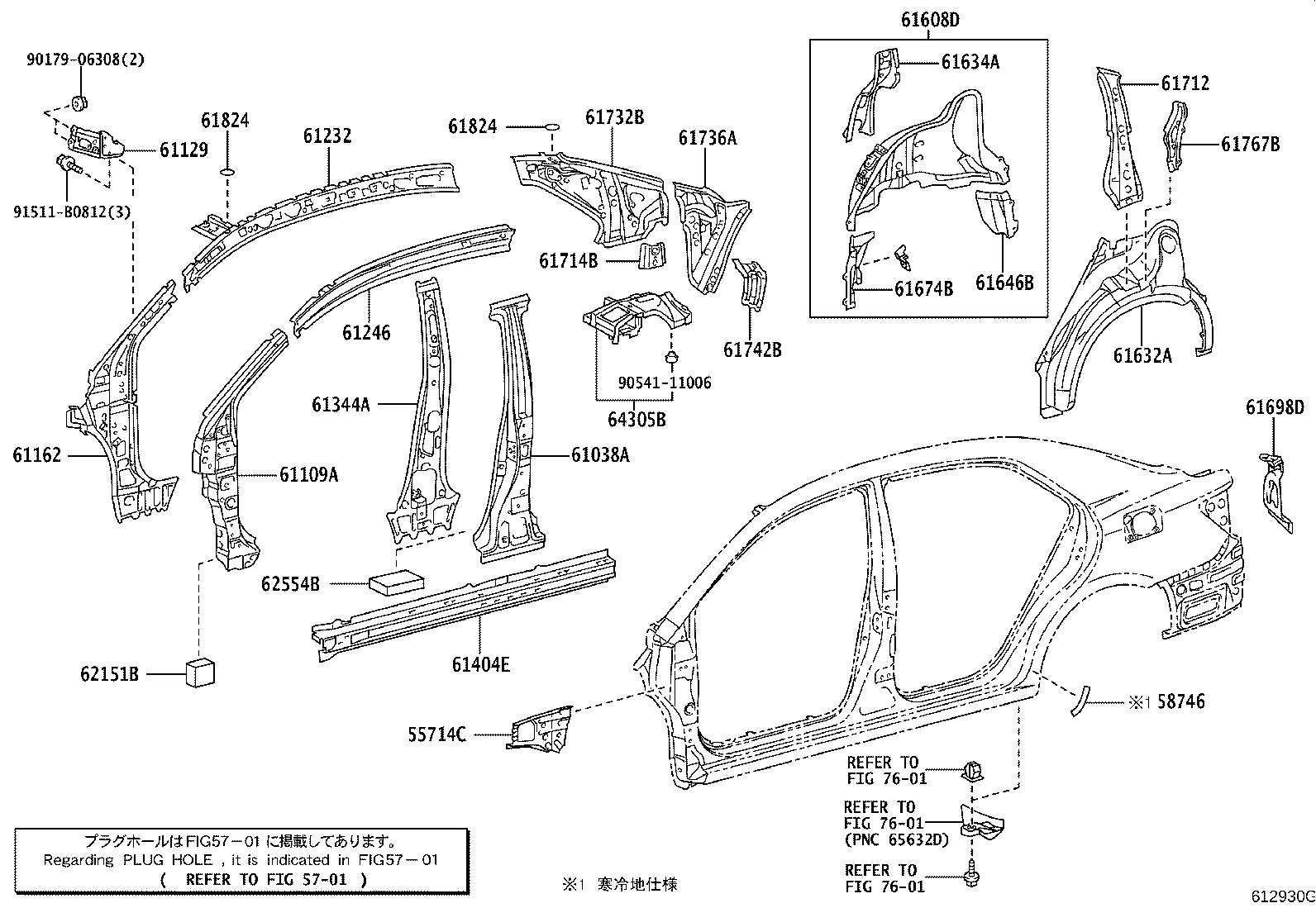

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ,LH

diagram 55714C 5701 58746 61038A 61109A 61129 61162 61232 61246 61344A 61404E 61608D 61632A 61634A 61646B 61674B 61698D 61712 61714B 61732B 61736A 61742B 61767B 61824 61824 62151B 62554B 64305B 7601 7601 7601 9017906308 9054111006 91511B0812
Part # Description Qty Price
55714C - PANEL, COWL TOP SIDE, LH
55714-20180

NZT260,ZRT26#..CBU

 1
58746 - PROTECTOR, QUARTER PANEL, FRONT LH
58742-20160

NZT260,ZRT26#..CBU

寒冷地仕様

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-20904

NZT260,ZRT26#..CBU

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-20170

NZT260,ZRT26#..CBU

 1
61129 - REINFORCEMENT, COWL SIDE PANEL, LH
61104-20260

NZT260,ZRT26#..CBU

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61024-20130

NZT260,ZRT26#..CBU

 1
61232 - RAIL, ROOF SIDE, INNER LH
61202-20080

NZT260,ZRT26#..CBU

 1
61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61246-20020

NZT260,ZRT26#..CBU

 1
61344A - PILLAR, CENTER BODY, INNER LH
61042-20040

NZT260,ZRT26#..CBU

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-20020

NZT260,ZRT26#..CBU

 1
61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-20936

ZRT265..CBU

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-20340

NZT260,ZRT26#..CBU

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61604-20A00

NZT260,ZRT26#..CBU

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-20160

NZT260,ZRT26#..CBU

 1
61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61674-32050

NZT260,ZRT26#..CBU

 1
61698D - HOUSING, QUARTER PANEL END, LH
61698-20901

NZT260,ZRT26#..CBU

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-20200

NZT260,ZRT26#..CBU

 1
61714B - REINFORCE, ROOF SIDE, OUTER LH
61714-20120

NZT260,ZRT26#..CBU

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-20380

NZT260,ZRT26#..CBU

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-20270

NZT260,ZRT26#..CBU

 1
61742B - REINFORCEMENT, BACK WINDOW OPENING, LH
61742-20030

NZT260,ZRT26#..CBU

 1
61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61767-20200

NZT260,ZRT26#..CBU

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12050

NZT260,ZRT26#..CBU

 4
61824 - PLATE, NOISE CONTROL, NO.1
61824-12050

NZT260,ZRT26#..CBU

 4
62151B - PAD, COWL SIDE SILENCER
62151-52010

NZT260,ZRT26#..CBU

 2
62554B - PAD, PILLAR, NO.4
62554-12180

NZT260,ZRT26#..CBU

 2
64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64305-20090

NZT260,ZRT26#..CBU

 1
Common parts
90179-06308
90541-11006
91511-B0812
Linked diagrams
5701
7601

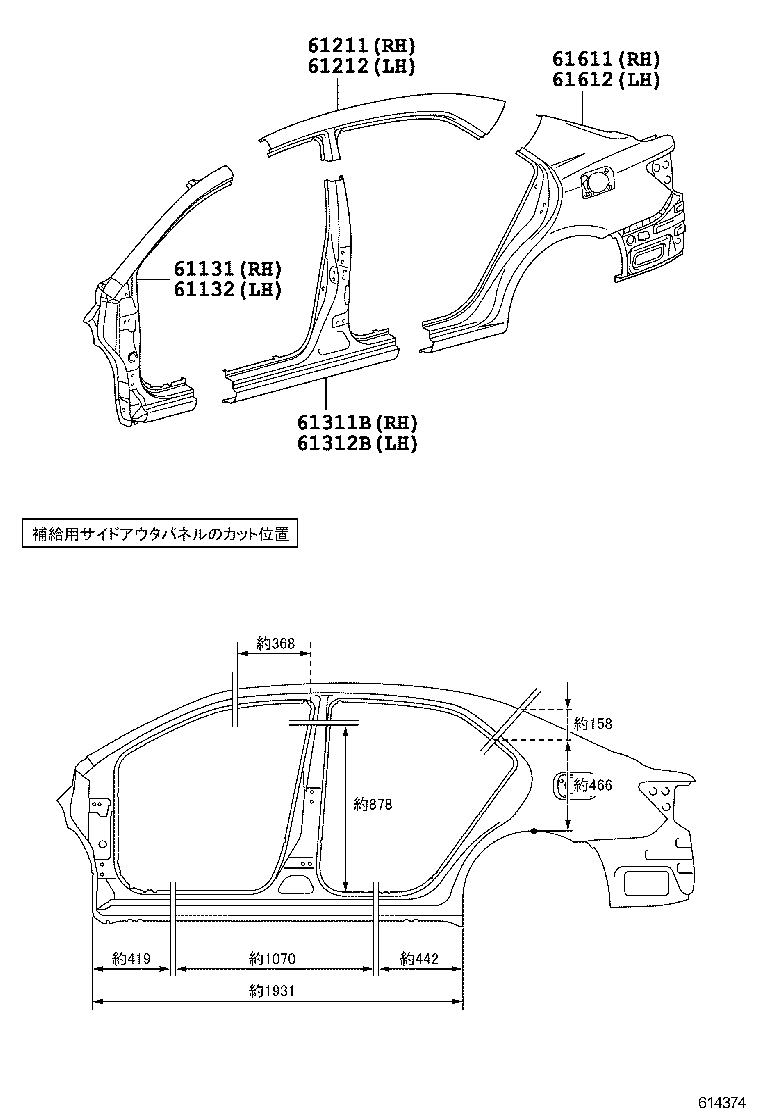

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

diagram 61131 61132 61211 61212 61311B 61312B 61611 61612
Part # Description Qty Price
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-20550

NZT260,ZRT26#..CBU

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-20490

NZT260,ZRT26#..CBU

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-20330

NZT260,ZRT26#..CBU

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-20310

NZT260,ZRT26#..CBU

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-20350

NZT260,ZRT26#..CBU

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-20420

NZT260,ZRT26#..CBU

 1
61611 - PANEL, QUARTER, RH
61601-2D110

NZT260,ZRT26#..CBU

 1
61612 - PANEL, QUARTER, LH
61602-20A00

NZT260,ZRT26#..CBU

 1
