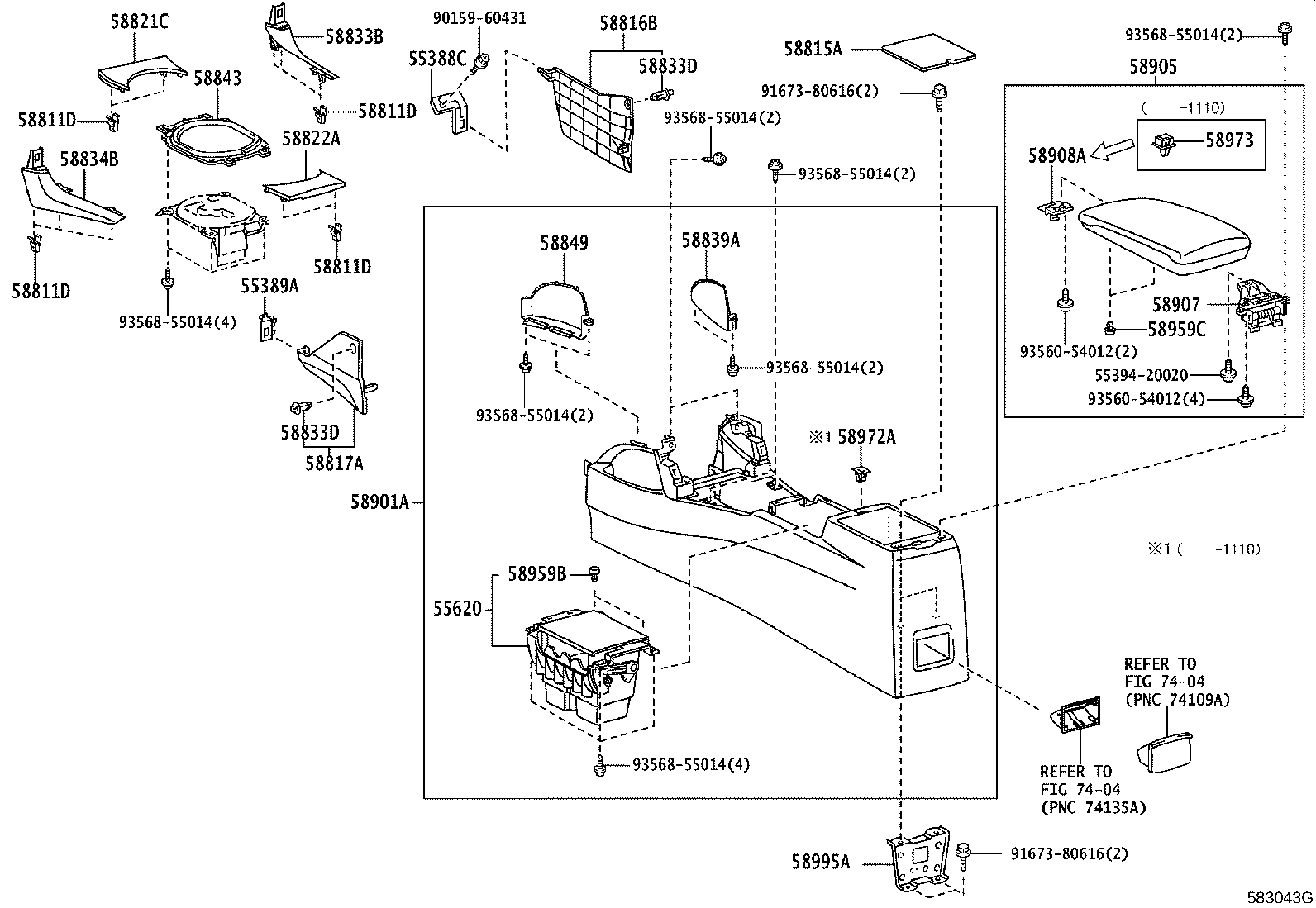

ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705-1606)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55389-42020 |
NZT260,ZRT26#..CBU |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55388-42020 |
NZT260,ZRT26#..CBU |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-20020C0 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 55620-20021C0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 55620-20021C0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 55620-20021C0 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),DK.RED,TRIM40 |
1 | ||
| 55620-20021E1 |
NZT260,ZRT260,265..PRM..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 55620-20020E1 |
NZT260,ZRT26#..CBU YELLOWISH BROWN,TRIM4# |
1 | ||
| 55620-20021C0 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
10 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 58815-20081 |
NZT260,ZRT26#..CBU |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58816-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-20010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 58817-20010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-20350E0 |
NZT260,ZRT260,265..PRM..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 58821-20350C0 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 58821-20350C0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-20180E0 |
NZT260,ZRT260,265..PRM..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 58822-20180C0 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 58822-20180C0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-20040B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58833-20040E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 58833D - CLIP(FOR CONSOLE COVER) | ||||
| 90467-07066P6 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 90467-07066L2 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 58833D - CLIP(FOR CONSOLE COVER) | ||||
| 90467-07066P6 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
2 | ||
| 90467-07066L2 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
2 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-20010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 58834-20010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-20060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58839-20060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-20240 |
NZT260,ZRT26#..CBU |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-20010E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 58849-20010B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-20200E1 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM4# |
1 | ||
| 58901-20200B1 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58901-20200E1 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM40 |
1 | ||
| 58901-20220E0 |
NZT260,ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C),GREGE/DK.RED,TRIM40 |
1 | ||
| 58901-20220E0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE/DK.RED,TRIM40 |
1 | ||
| 58901-20220E1 |
NZT260,ZRT260,265..PRM..CBU GREGE,TRIM40 |
1 | ||
| 58901-20200E2 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),GREGE/DK.RED,TRIM40 |
1 | ||
| 58901-20220B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-20470B1 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 58905-20470E1 |
NZT260,ZRT26#..CBU GREGE,TRIM40 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-20040 |
NZT260,ZRT26#..CBU |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NZT260,ZRT26#..CBU |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NZT260,ZRT26#..CBU |
2 | ||
| 58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58972-34010 |
NZT260,ZRT26#..CBU |
1 | ||
| 58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58973-34010 |
NZT260,ZRT26#..CBU |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20090 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 55394-20020 | ||||
| 90159-60431 | ||||
| 91673-80616 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
