ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )

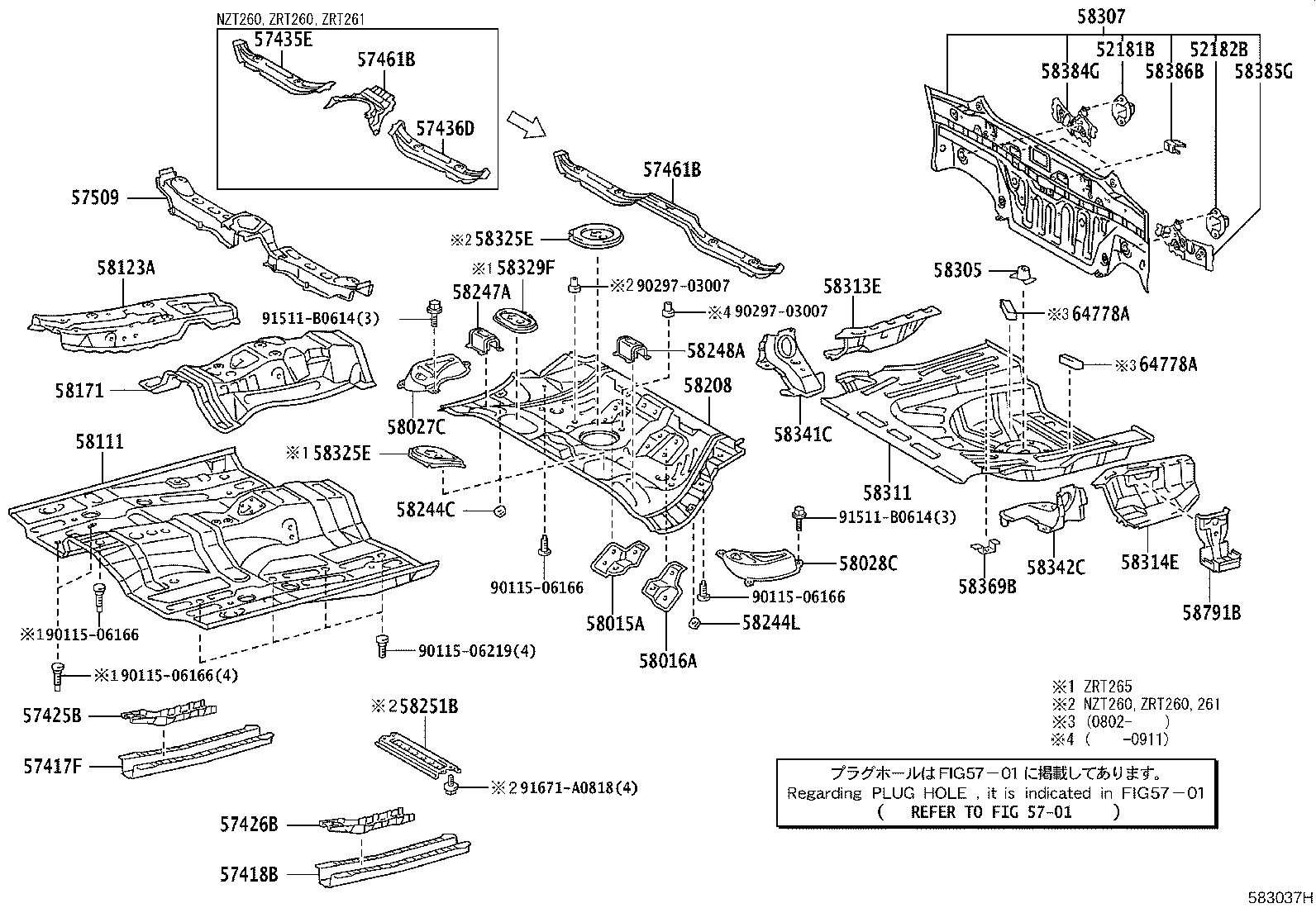

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52181B - ARM, REAR BUMPER, RH | ||||
| 52181-20390 |
NZT260,ZRT26#..CBU |
1 | ||
| 52182B - ARM, REAR BUMPER LH | ||||
| 52181-20390 |
NZT260,ZRT26#..CBU |
1 | ||
| 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-20110 |
NZT260,ZRT26#..CBU |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57423-21010 |
NZT260,ZRT26#..CBU |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57423-21010 |
NZT260,ZRT26#..CBU |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-21040 |
ZRT265..CBU |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-21040 |
ZRT265..CBU |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-21020 |
ZRT265..CBU |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-12070 |
NZT260,ZRT26#..CBU |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-13040 |
NZT260,ZRT26#..CBU |
1 | ||
| 58027C - PANEL SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 58027-21030 |
NZT260,ZRT26#..CBU |
1 | ||
| 58028C - PANEL SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 58028-21010 |
NZT260,ZRT26#..CBU |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-20926 |
ZRT265..CBU |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-20122 |
ZRT265..CBU |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-20170 |
ZRT265..CBU |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-20530 |
ZRT265..CBU |
1 | ||
| 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-13030 |
NZT260,ZRT26#..CBU |
1 | ||
| 58244L - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-13030 |
NZT260,ZRT26#..CBU |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-20040 |
NZT260,ZRT26#..CBU |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-20040 |
NZT260,ZRT26#..CBU |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-33010 |
NZT260,ZRT26#..CBU |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-20A00 |
NZT260,ZRT26#..CBU |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-20410 |
NZT260,ZRT26#..CBU |
1 | ||
| 58313E - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58313-20430 |
NZT260,ZRT26#..CBU |
1 | ||
| 58314E - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58314-20390 |
NZT260,ZRT26#..CBU |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-32050 |
ZRT265..CBU |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-32050 |
ZRT265..CBU |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-32020 |
ZRT265..CBU |
1 | ||
| 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-20070 |
ZRT265..CBU |
1 | ||
| 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-20070 |
ZRT265..CBU |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20020 |
NZT260,ZRT26#..CBU |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-20071 |
NZT260,ZRT26#..CBU |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-20071 |
NZT260,ZRT26#..CBU |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
NZT260,ZRT26#..CBU |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-20150 |
NZT260,ZRT26#..CBU |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-20110 |
NZT260,ZRT26#..CBU |
2 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-20110 |
NZT260,ZRT26#..CBU |
2 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90297-03007 | ||||
| 91511-B0614 | ||||
| 91671-A0818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
