ZRT265-AEXEK (2007)
Toyota Premio/Allion

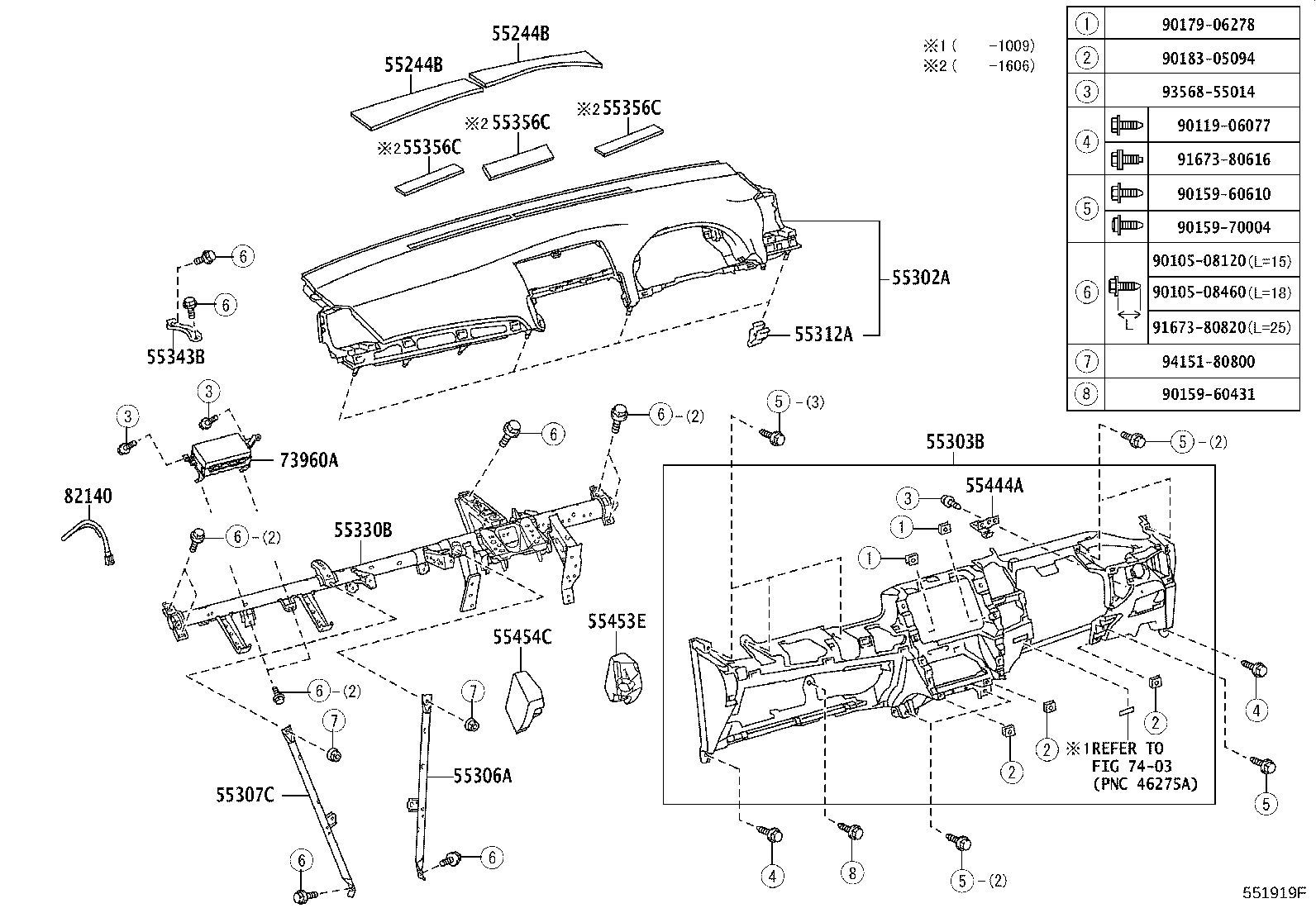

ILLUST NO. 1 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55244B - SILENCER, FRONT PANEL SIDE, NO.2 | ||||
| 55244-63010 |
NZT260,ZRT26#..CBU |
2 | ||
| 55244B - SILENCER, FRONT PANEL SIDE, NO.2 | ||||
| 55244-63010 |
NZT260,ZRT26#..CBU |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-20080B0 |
ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| 55302-20080E0 |
ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-20130E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55303-20130B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-20340 |
NZT260,ZRT26#..CBU |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-20220 |
NZT260,ZRT26#..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-20360 |
NZT260,ZRT26#..CBU |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-20060 |
NZT260,ZRT26#..CBU |
3 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-20060 |
NZT260,ZRT26#..CBU |
3 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-20060 |
NZT260,ZRT26#..CBU |
3 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-20100 |
NZT260,ZRT26#..CBU |
1 | ||
| 55453E - PAD, INSTRUMENT, LOWER RH | ||||
| 55453-20100 |
NZT260,ZRT26#..CBU |
1 | ||
| 55454C - PAD, INSTRUMENT, LOWER LH | ||||
| 55454-20060 |
NZT260,ZRT26#..CBU |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-20030 |
NZT260,ZRT26#..CBU |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-52020 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08460 | ||||
| 90119-06077 | ||||
| 90159-60431 | ||||
| 90159-60610 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7403 | ||||

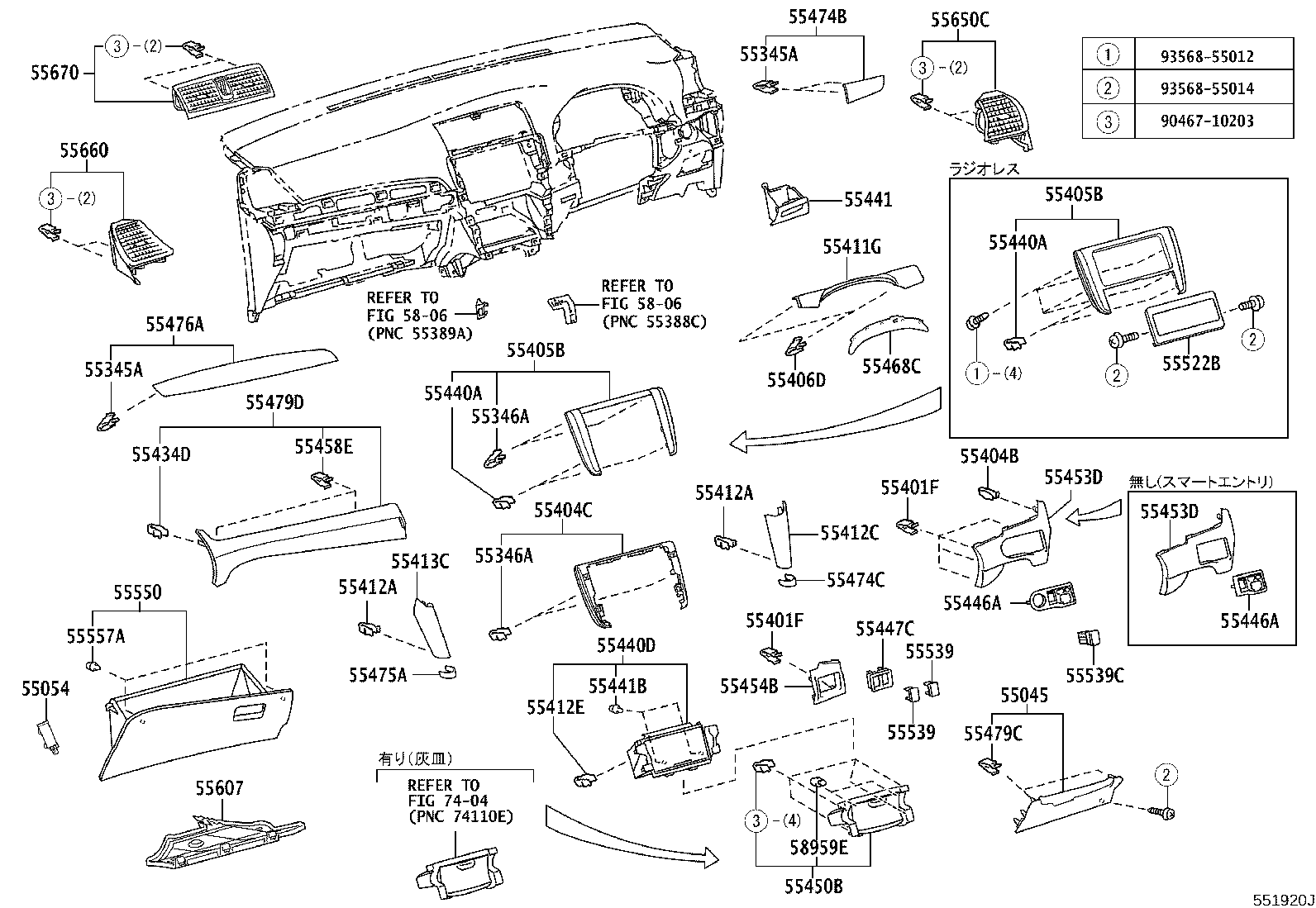

ILLUST NO. 2 OF 2(0705-1606)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-20100E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55045-20100B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12020 |
NZT260,ZRT26#..CBU |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
6 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
6 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90468-05135 |
NZT260,ZRT26#..CBU |
4 | ||
| 90468-05135 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 90468-05135 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
2 | ||
| 90468-05135 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90468-05135 |
NZT260,ZRT26#..CBU |
4 | ||
| 90468-05135 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 90468-05135 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
2 | ||
| 90468-05135 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
5 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
5 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 90468-05135 |
NZT260,ZRT26#..CBU |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-20370 |
NZT260,ZRT26#..CBU |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20410 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-20410 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55405-20410 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55405-20400 |
NZT260,ZRT26#..CBU |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20410 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-20410 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55405-20410 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55405-20400 |
NZT260,ZRT26#..CBU |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-20700 |
NZT260,ZRT26#..CBU |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-20730E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55412-20730B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55412E - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
4 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-20110B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55413-20110E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90468-05135 |
NZT260,ZRT26#..CBU |
1 | ||
| 55440A - CLIP(FOR INSTRUMENT PANEL CENTER GARNISH) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55440A - CLIP(FOR INSTRUMENT PANEL CENTER GARNISH) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-20140C1 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 55440-20140C1 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 55440-20150C1 |
NZT260,ZRT26#..CBU ETC−有り,DK.RED,TRIM1# |
1 | ||
| 55440-20150C1 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P)&ETC−有り,DK.RED,TRIM40 |
1 | ||
| 55440-20140E1 |
NZT260,ZRT260,265..PRM..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 55440-20150E1 |
NZT260,ZRT260,265..PRM..CBU ETC−有り,YELLOWISH BROWN,TRIM40 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-20210B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55441-20210E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
NZT260,ZRT26#..CBU |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-20160B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55446-20170B0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),DK.GRAY,TRIM1# |
1 | ||
| 55446-20160E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55446-20170E0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),GREGE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-20160B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55446-20170B0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),DK.GRAY,TRIM1# |
1 | ||
| 55446-20160E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55446-20170E0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),GREGE,TRIM4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-20080B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55447-20080E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-20090B0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),DK.GRAY,TRIM1# |
1 | ||
| 55453-20090E0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),GREGE,TRIM4# |
1 | ||
| 55453-20080B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55453-20080E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-20090B0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),DK.GRAY,TRIM1# |
1 | ||
| 55453-20090E0 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C),GREGE,TRIM4# |
1 | ||
| 55453-20080B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55453-20080E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-20050B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55454-20050E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-20140E0 |
NZT260,ZRT260,265..PRM..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 55474-20140C0 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 55474-20140C0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-20150 |
NZT260,ZRT26#..CBU |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-20150 |
NZT260,ZRT26#..CBU |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-20150C0 |
NZT260,ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),DK.RED,TRIM40 |
1 | ||
| 55476-20150C0 |
NZT260,ZRT26#..CBU DK.RED,TRIM1# |
1 | ||
| 55476-20150E0 |
NZT260,ZRT260,265..PRM..CBU YELLOWISH BROWN,TRIM40 |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NZT260,ZRT26#..CBU |
2 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-20130E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55479-20130B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NZT260,ZRT26#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
NZT260,ZRT260,265..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
NZT260,ZRT260,265..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55539-52060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55539-52060B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160B1 |
NZT260,ZRT26#..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
NZT260,ZRT26#..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-20220B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55550-20220E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55550-20240B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55550-20240E0 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NZT260,ZRT26#..CBU |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12060 |
NZT260,ZRT26#..CBU |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20360B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55650-20360E0 |
ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-20290B0 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 55660-20290E0 |
ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-20290E0 |
ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4# |
1 | ||
| 55670-20290B0 |
ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
