ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

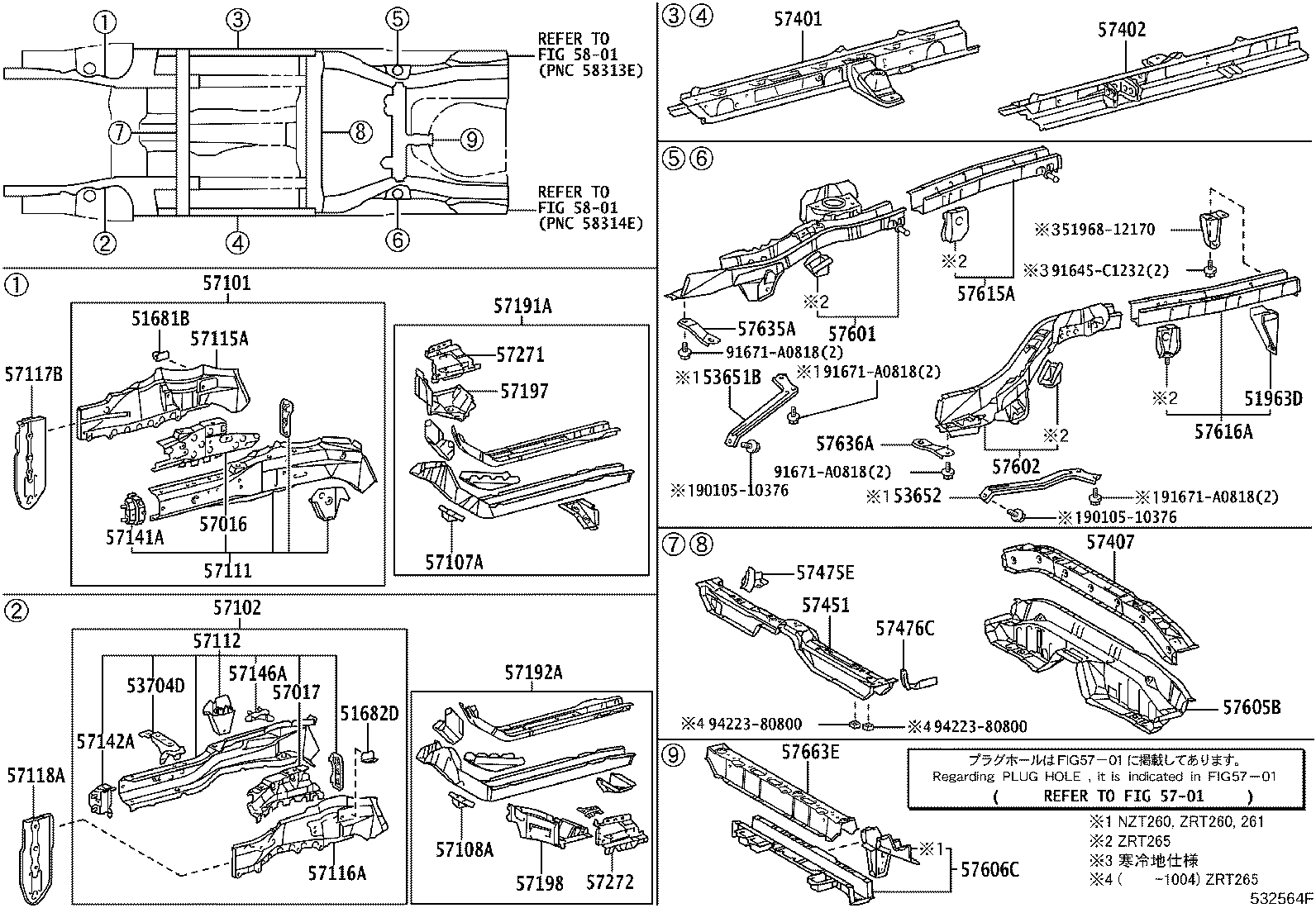

Click highlighted areas on diagram

diagram 51681B 51682D 51963D 5196812170 53651B 53652 53704D 5701 57016 57017 57101 57102 57107A 57108A 57111 57112 57115A 57116A 57117B 57118A 57141A 57142A 57146A 57191A 57192A 57197 57198 57271 57272 57401 57402 57407 57451 57475E 57476C 57601 57602 57605B 57606C 57615A 57616A 57635A 57636A 57663E 5801 5801 9010510376 9010510376 91645C1232 91671A0818 91671A0818 91671A0818 91671A0818 9422380800 9422380800
Part # Description Qty Price
51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51681-32050

NZT260,ZRT26#..CBU

 1
51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51682-32040

NZT260,ZRT26#..CBU

 1
51963D - HOOK, TRANSPORT, REAR LH
51968-32030

NZT260,ZRT26#..CBU

 1
53704D - SUPPORT SUB-ASSY, BATTERY, LH
53771-63011

NZT260,ZRT26#..CBU

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-20060

NZT260,ZRT26#..CBU

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-12050

NZT260,ZRT26#..CBU

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-2B908

NZT260,ZRT26#..CBU

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-21906

NZT260,ZRT26#..CBU

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-32060

NZT260,ZRT26#..CBU

 1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-32060

NZT260,ZRT26#..CBU

 1
57111 - MEMBER, FRONT SIDE, RH
57111-21906

NZT260,ZRT26#..CBU

 1
57112 - MEMBER, FRONT SIDE, LH
57112-21905

NZT260,ZRT26#..CBU

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-32900

NZT260,ZRT26#..CBU

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-20250

NZT260,ZRT26#..CBU

 1
57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH
57117-63010

NZT260,ZRT26#..CBU

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57118-63010

NZT260,ZRT26#..CBU

 1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57141-63010

NZT260,ZRT26#..CBU

 1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57142-63010

NZT260,ZRT26#..CBU

 1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-12020

NZT260,ZRT26#..CBU

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57033-20900

NZT260,ZRT26#..CBU

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57034-20900

NZT260,ZRT26#..CBU

 1
57197 - BOX, TORQUE, FRONT RH
57197-20102

NZT260,ZRT26#..CBU

 1
57198 - BOX, TORQUE, FRONT LH
57198-20112

NZT260,ZRT26#..CBU

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-20070

NZT260,ZRT26#..CBU

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-20070

NZT260,ZRT26#..CBU

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-21050

NZT260,ZRT26#..CBU

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-21050

NZT260,ZRT26#..CBU

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-21040

NZT260,ZRT26#..CBU

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-63011

ZRT265..CBU

 1
57475E - PLATE, FRONT FLOOR CROSSMEMBER, RH
57475-20070

NZT260,ZRT26#..CBU

 1
57476C - PLATE, FRONT FLOOR CROSSMEMBER, LH
57476-20070

NZT260,ZRT26#..CBU

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20910

ZRT265..CBU

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20913

ZRT265..CBU

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-21040

ZRT265..CBU

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-20250

ZRT265..CBU

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-32918

ZRT265..CBU

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-32924

ZRT265..CBU

 1
57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57635-63010

NZT260,ZRT26#..CBU

 1
57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57636-63010

NZT260,ZRT26#..CBU

 1
57663E - MEMBER, REAR FLOOR CROSS, CENTER
57663-63010

NZT260,ZRT26#..CBU

 1
Common parts
51968-12170
90105-10376
91645-C1232
91671-A0818
94223-80800
Linked diagrams
5701
5801
