ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20360 |
NZT260,ZRT26#..CBU |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20310 |
NZT260,ZRT26#..CBU |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-20070 |
NZT260,ZRT26#..CBU |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-20020 |
NZT260,ZRT26#..CBU |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-52050 |
NZT260,ZRT26#..CBU |
1 | ||
| 53481A - BRACKET, HOOD SUPPORT, RH | ||||
| 53481-20010 |
NZT260,ZRT26#..CBU |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
NZT260,ZRT26#..CBU 厚さ=0.5 |
4 | ||
| 53497-20070 |
NZT260,ZRT26#..CBU 厚さ=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
NZT260,ZRT26#..CBU 厚さ=0.5 |
4 | ||
| 53497-20070 |
NZT260,ZRT26#..CBU 厚さ=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20630 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
NZT260,ZRT26#..CBU 線径=1.6,ｺｲﾙ巻数=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 90506-12063 |
NZT260,ZRT26#..CBU 線径=1.2,ｺｲﾙ巻数=8.5,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90506-09055 |
NZT260,ZRT26#..CBU 線径=0.9,ｺｲﾙ巻数=21,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
NZT260,ZRT26#..CBU 線径=1.6,ｺｲﾙ巻数=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 90506-12063 |
NZT260,ZRT26#..CBU 線径=1.2,ｺｲﾙ巻数=8.5,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90506-09055 |
NZT260,ZRT26#..CBU 線径=0.9,ｺｲﾙ巻数=21,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
NZT260,ZRT26#..CBU 線径=1.6,ｺｲﾙ巻数=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 90506-12063 |
NZT260,ZRT26#..CBU 線径=1.2,ｺｲﾙ巻数=8.5,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90506-09055 |
NZT260,ZRT26#..CBU 線径=0.9,ｺｲﾙ巻数=21,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010B3 |
NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
1 | ||
| 53601-52010E4 |
NZT260,ZRT26#..CBU GREGE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20630 |
NZT260,ZRT26#..CBU |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NZT260,ZRT26#..CBU |
3 | ||
| Common parts | ||||
| 53326-52010 | ||||
| 82711-1A770 | ||||
| 82711-1E350 | ||||
| 90105-08087 | ||||
| 90119-06939 | ||||
| 91626-A0616 | ||||

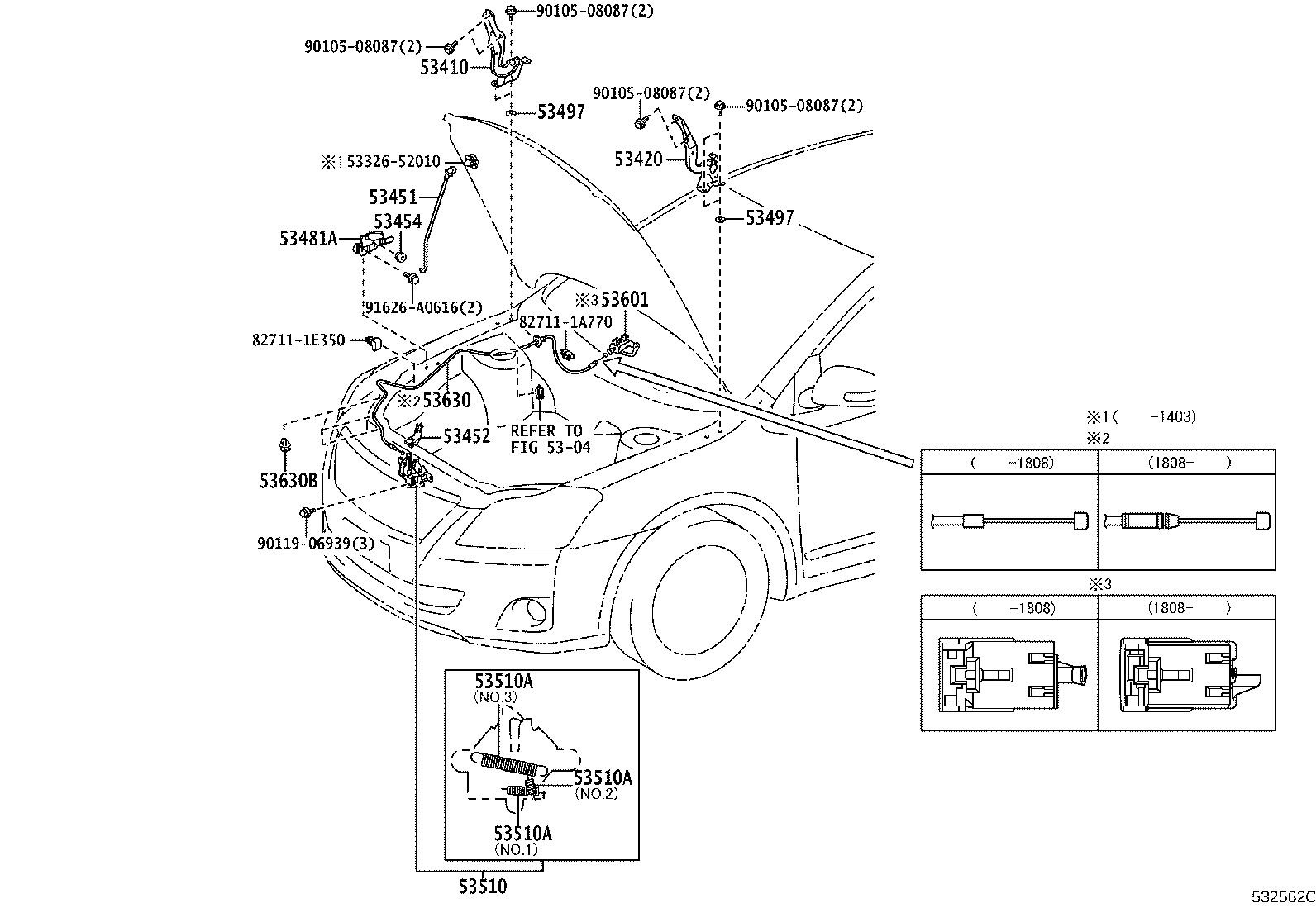

| Linked diagrams | ||||
| 5304 | ||||
