ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

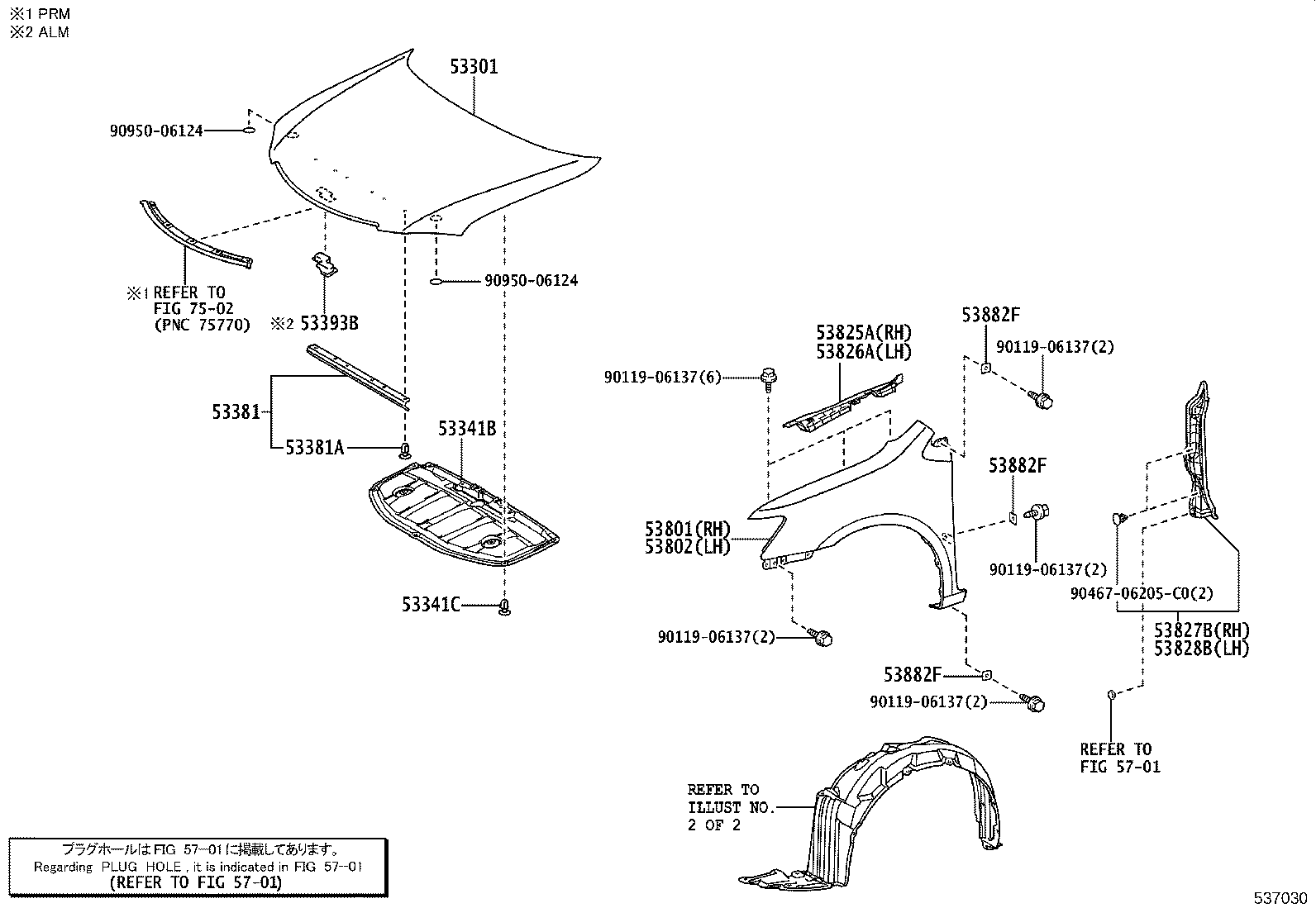

ILLUST NO. 1 OF 2(0705-1606)

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53393B 53801 53802 53825A 53826A 53827B 53828B 53882F 53882F 53882F 5701 5701 7502 9011906137 9011906137 9011906137 9011906137 9011906137 9046706205C0 9095006124 9095006124
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-20630

NZT260,ZRT26#..PRM..CBU

 1
53341B - INSULATOR, HOOD
53341-20350

NZT260,ZRT26#..CBU

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

NZT260,ZRT26#..CBU

 9
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20170

NZT260,ZRT26#..CBU

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

NZT260,ZRT26#..CBU

 6
53801 - FENDER SUB-ASSY, FRONT RH
53811-20A00

NZT260,ZRT26#..PRM..CBU

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-20A00

NZT260,ZRT26#..PRM..CBU

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-20040

NZT260,ZRT26#..CBU

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-20040

NZT260,ZRT26#..CBU

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-20110

NZT260,ZRT26#..CBU

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-20110

NZT260,ZRT26#..CBU

 1
53882F - SEAL, FRONT FENDER
53882-16030

NZT260,ZRT26#..CBU

 6
53882F - SEAL, FRONT FENDER
53882-16030

NZT260,ZRT26#..CBU

 6
53882F - SEAL, FRONT FENDER
53882-16030

NZT260,ZRT26#..CBU

 6
Common parts
90119-06137
90467-06205C0
90950-06124
Linked diagrams
5701
7502

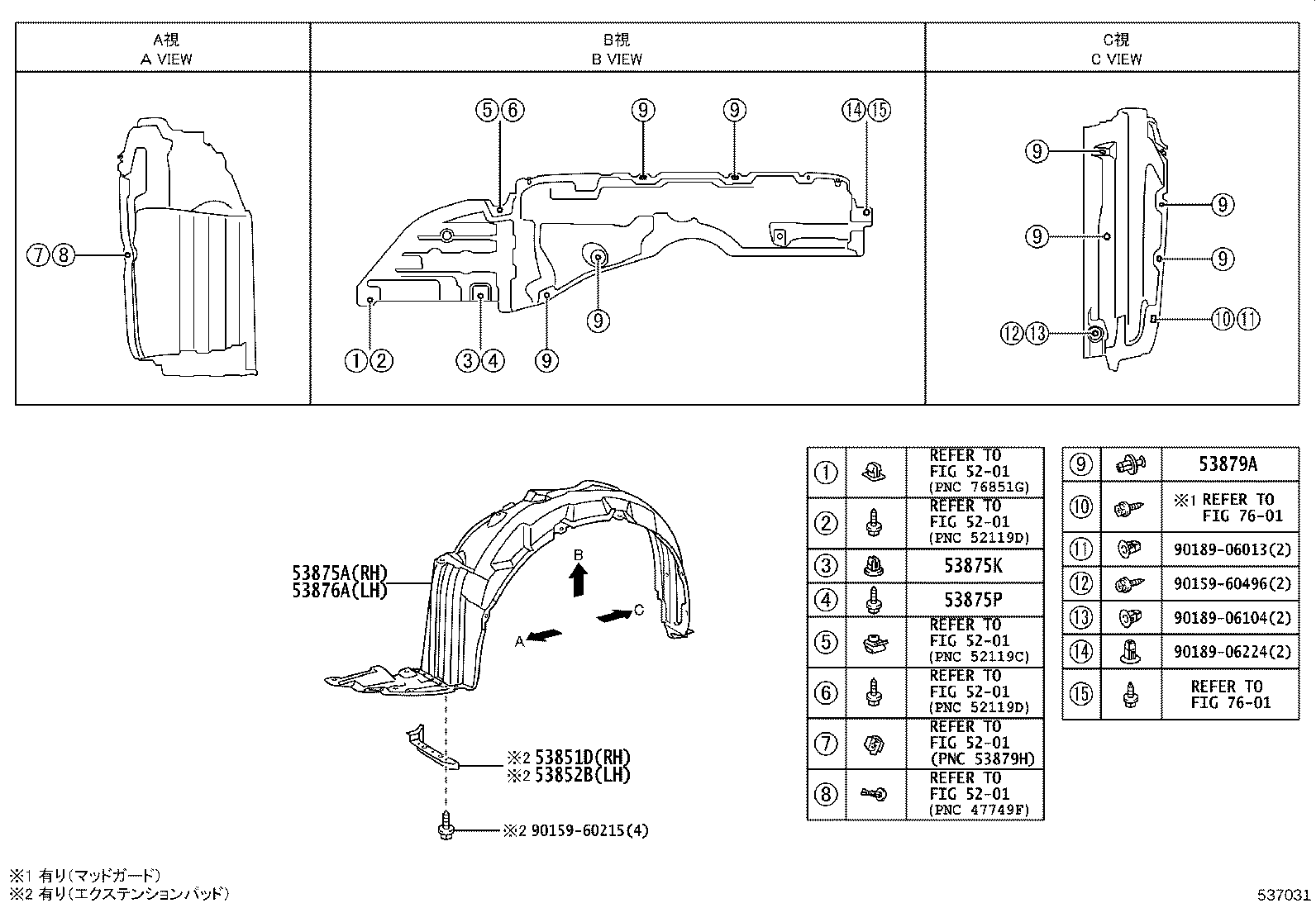

ILLUST NO. 2 OF 2(0705-1606)

Click highlighted areas on diagram

ﾌｪﾝﾀﾞﾗｲﾅ

diagram 5201 5201 5201 5201 5201 5201 53851D 53852B 53875A 53875K 53875P 53876A 53879A 7601 7601 9015960215 9015960496 9018906013 9018906104 9018906224
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-21010

ZRT26#..CBU

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-21010

ZRT26#..CBU

 1
53875A - LINER, FRONT FENDER, RH
53875-20370

NZT260,ZRT26#..CBU

 1
53875K - GROMMET, SCREW
90189-06208

NZT260,ZRT26#..CBU

 2
53875P - SCREW, NO.1
90159-60383

NZT260,ZRT26#..CBU

 2
53876A - LINER, FRONT FENDER, LH
53876-20420

NZT260,ZRT26#..CBU

 1
53879A - RETAINER, FRONT FENDER LINER
90467-07164

NZT260,ZRT26#..CBU

 16
90467-07214

NZT260,ZRT26#..CBU

 16
Common parts
90159-60215
90159-60496
90189-06013
90189-06104
90189-06224
Linked diagrams
5201
7601
