ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1606)

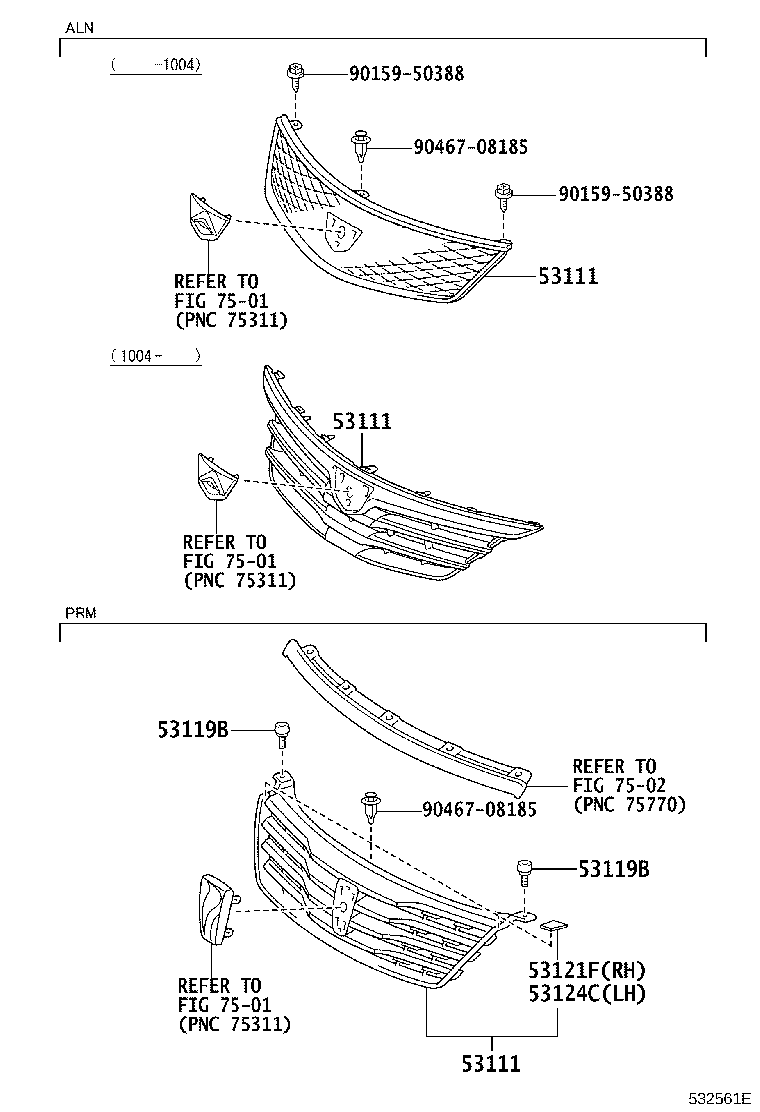

Click highlighted areas on diagram

diagram 53111 53111 53111 53119B 53119B 53121F 53124C 7501 7501 7501 7502 9015950388 9015950388 9046708185 9046708185
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-20B50

NZT260,ZRT26#..PRM..CBU

ﾒｯｷ

 1
53111 - GRILLE, RADIATOR
53111-20B50

NZT260,ZRT26#..PRM..CBU

ﾒｯｷ

 1
53111 - GRILLE, RADIATOR
53111-20B50

NZT260,ZRT26#..PRM..CBU

ﾒｯｷ

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150

NZT260,ZRT26#..PRM..CBU

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150

NZT260,ZRT26#..PRM..CBU

 2
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-20220

NZT260,ZRT26#..PRM..CBU

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-20040

NZT260,ZRT26#..PRM..CBU

 1
Common parts
90159-50388
90467-08185
Linked diagrams
7501
7502
