ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )PRM

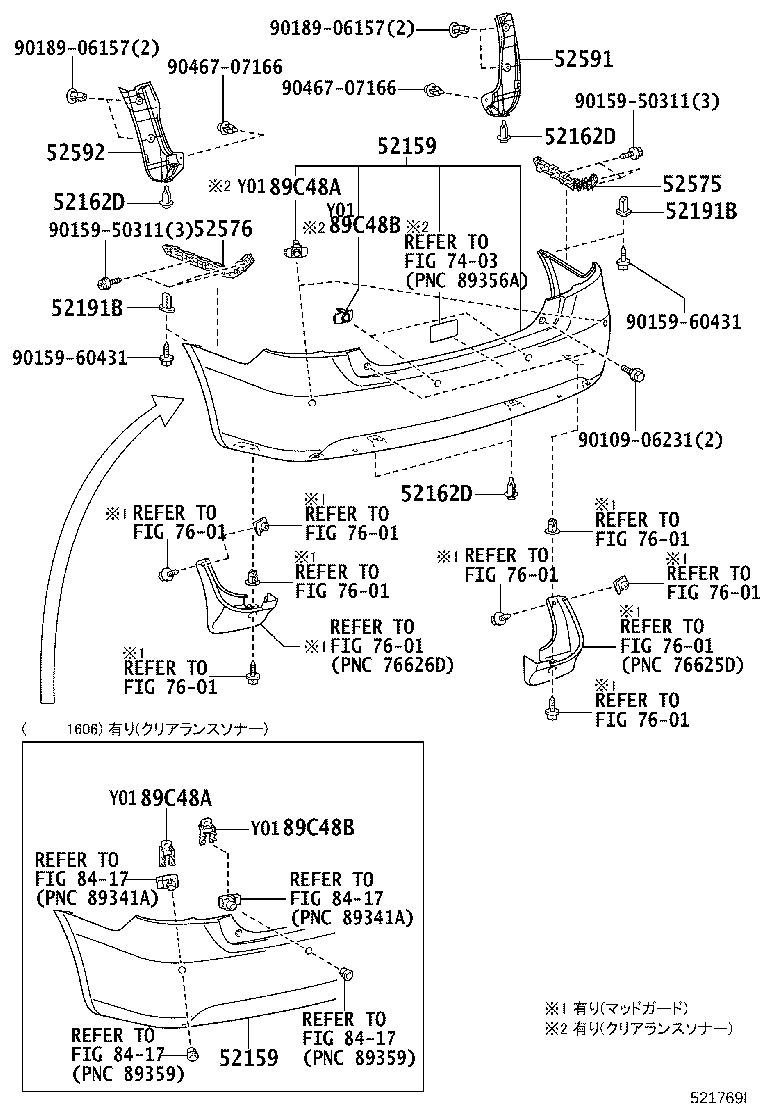

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20A00B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
1 | ||
| 52159-20A10D1 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 52159-20A00D1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
1 | ||
| 52159-20A00A1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
1 | ||
| 52159-20A00A0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
1 | ||
| 52159-20A00D0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-20A00J0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
1 | ||
| 52159-20A10B1 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 52159-20A00C0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
1 | ||
| 52159-20A10A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 52159-20A10D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52159-20A00B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52159-20A10B0 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 52159-20A10A1 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-20A10J0 |
NZT260,ZRT26#..PRM..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52159-20A10C0 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20A00B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
1 | ||
| 52159-20A10D1 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 52159-20A00D1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
1 | ||
| 52159-20A00A1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
1 | ||
| 52159-20A00A0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
1 | ||
| 52159-20A00D0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-20A00J0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
1 | ||
| 52159-20A10B1 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 52159-20A00C0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
1 | ||
| 52159-20A10A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 52159-20A10D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52159-20A00B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52159-20A10B0 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 52159-20A10A1 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-20A10J0 |
NZT260,ZRT26#..PRM..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52159-20A10C0 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NZT260,ZRT26#..CBU |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NZT260,ZRT26#..CBU |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NZT260,ZRT26#..CBU |
4 | ||
| 52191B - GROMMET, REAR BUMPER STAY | ||||
| 52197-22020 |
NZT260,ZRT26#..CBU |
2 | ||
| 52191B - GROMMET, REAR BUMPER STAY | ||||
| 52197-22020 |
NZT260,ZRT26#..CBU |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-20080 |
NZT260,ZRT26#..CBU |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-20090 |
NZT260,ZRT26#..CBU |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-20060 |
NZT260,ZRT26#..CBU |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-33020 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-33020 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-33020 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-33020 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
2 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90189-06157 | ||||
| 90467-07166 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 7601 | ||||
| 8417 | ||||
