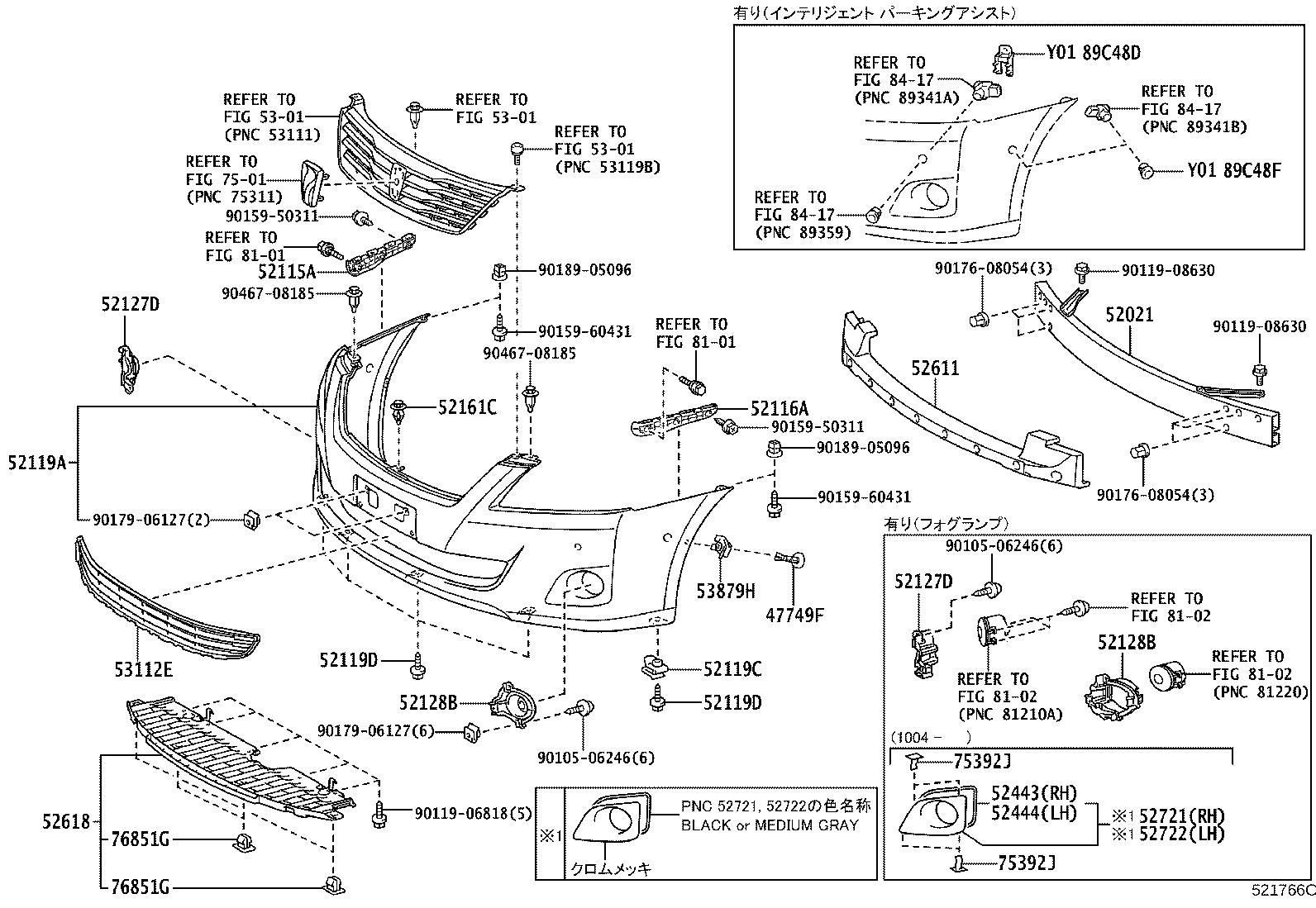

ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705-1606)PRM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-58010 |
NZT260,ZRT26#..CBU |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-20270 |
NZT260,ZRT26#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20410 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20280 |
NZT260,ZRT26#..PRM..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-20A50D1 |
ZRT26#..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
1 | ||
| 52119-20A50J0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-20A50A1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
1 | ||
| 52119-20A50B1 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
1 | ||
| 52119-20A50C0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
1 | ||
| 52119-20A50D0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-20A50B0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52119-20A40D1 |
NZT260,ZRT26#..PRM..CBU RED M.M.,3R3 |
1 | ||
| 52119-20A40B1 |
NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2 |
1 | ||
| 52119-20A40A0 |
NZT260,ZRT26#..PRM..CBU SUPER WHITE 2,040 |
1 | ||
| 52119-20A40A1 |
NZT260,ZRT26#..PRM..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-20A50A0 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
1 | ||
| 52119-20A40D0 |
NZT260,ZRT26#..PRM..CBU BLACKISH RED MC.,3R0 |
1 | ||
| 52119-20A40B0 |
NZT260,ZRT26#..PRM..CBU SILVER ME.,1F7 |
1 | ||
| 52119-20A40J0 |
NZT260,ZRT26#..PRM..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52119-20A40C0 |
NZT260,ZRT26#..PRM..CBU BLACK MC.,209 |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
NZT260,ZRT26#..CBU |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60215 |
NZT260,ZRT26#..CBU |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60215 |
NZT260,ZRT26#..CBU |
6 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-20210 |
ZRT26#..PRM..CBU |
1 | ||
| 52127-20220 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 52127-20220 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-20210 |
ZRT26#..PRM..CBU |
1 | ||
| 52127-20220 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 52127-20220 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-20190 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 52128-20190 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 52128-20180 |
ZRT26#..PRM..CBU |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-20190 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 52128-20190 |
ZRT260,265..PRM..CBU Standard Package *(U) or “Version C”*(C)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 52128-20180 |
ZRT26#..PRM..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZT260,ZRT26#..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-20260 |
NZT260,ZRT26#..CBU |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-20010 |
NZT260,ZRT26#..CBU |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-20290 |
NZT260,ZRT26#..PRM..CBU 塗装不要 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
NZT260,ZRT26#..CBU |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
NZT260,ZRT26#..CBU |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
NZT260,ZRT26#..CBU |
4 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-33020 |
ZRT260,265..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-12010D0 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),RED M.M.,3R3 |
2 | ||
| 89348-12010B0 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
2 | ||
| 89348-12010A0 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SUPER WHITE 2,040 |
2 | ||
| 89348-12010A1 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,070 |
2 | ||
| 89348-12010J1 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),LT.BLUE M.M.,8S7 |
2 | ||
| 89348-12010C0 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK MC.,209 |
2 | ||
| 89348-12010B2 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),GRAY ME.,1G2 |
2 | ||
| 89348-12010D1 |
ZRT260,265..PRM..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き&ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACKISH RED MC.,3R0 |
2 | ||
| Common parts | ||||
| 90105-06246 | ||||
| 90119-06818 | ||||
| 90119-08630 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05096 | ||||
| 90467-08185 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||
| 8417 | ||||
