ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ZRT265

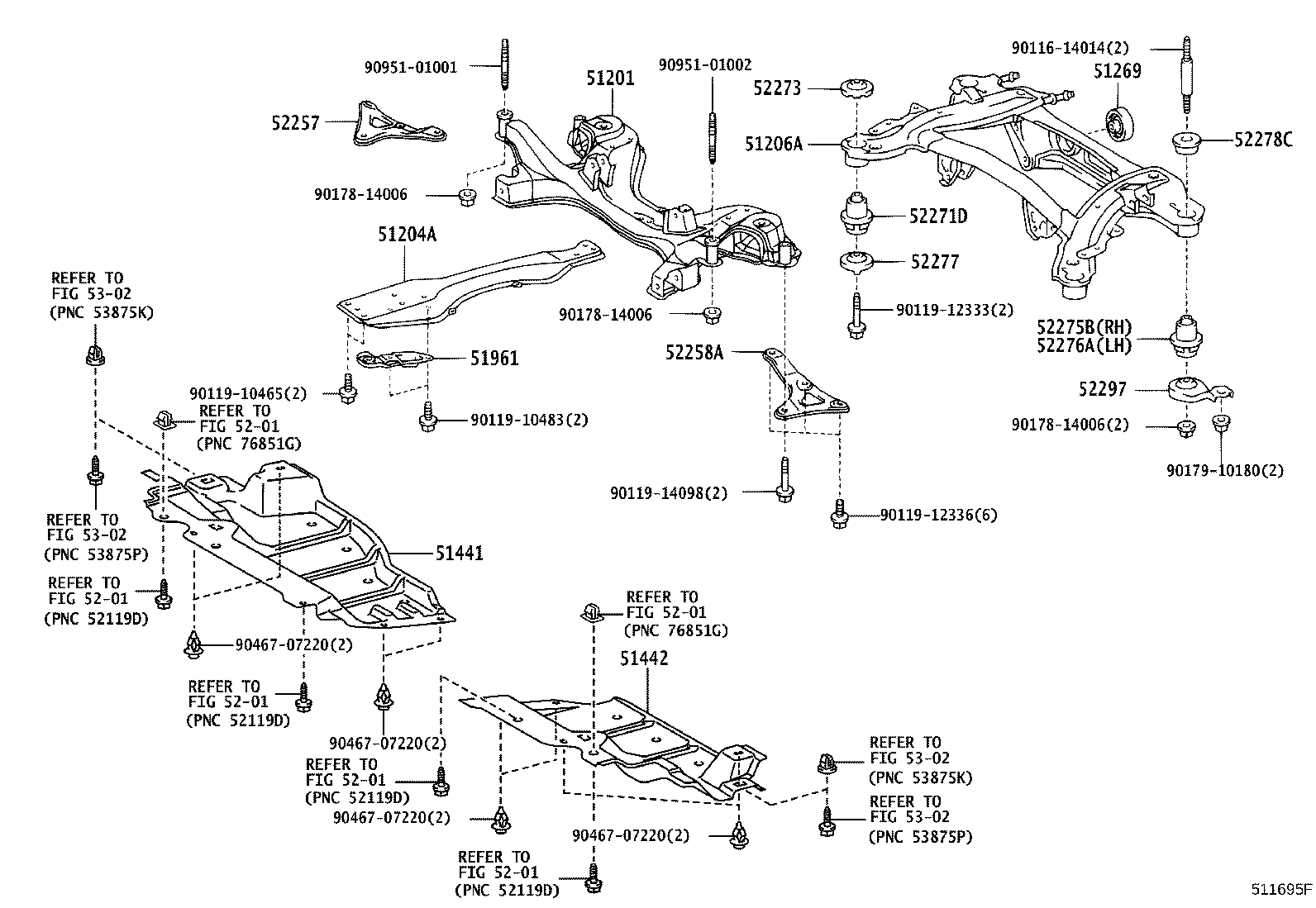

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51269 51441 51442 51961 5201 5201 5201 5201 5201 5201 52257 52258A 52271D 52273 52275B 52276A 52277 52278C 52297 5302 5302 5302 5302 9011614014 9011910465 9011910483 9011912333 9011912336 9011914098 9017814006 9017814006 9017814006 9017910180 9046707220 9046707220 9046707220 9046707220 9095101001 9095101002
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20370

ZRT265..CBU

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-44020

ZRT265..CBU

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20112

ZRT265..CBU

 1
51206-20110

ZRT265..CBU

 1
51206-20111

ZRT265..CBU

 1
51269 - DAMPER, DIFFERENTIAL SUPPORT MEMBER
51269-32030

ZRT265..CBU

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20450

NZT260,ZRT26#..CBU

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20570

NZT260,ZRT26#..CBU

 1
51961 - HOOK, NO.1
51963-32040

NZT260,ZRT26#..CBU

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20070

NZT260,ZRT26#..CBU

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20070

NZT260,ZRT26#..CBU

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-32040

ZRT265..CBU

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-32020

ZRT265..CBU

 2
52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52275-32060

ZRT265..CBU

 1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-32010

ZRT265..CBU

 1
52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52277-32030

ZRT265..CBU

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-32020

ZRT265..CBU

 2
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52297-32010

ZRT265..CBU

 2
Common parts
90116-14014
90119-10465
90119-10483
90119-12333
90119-12336
90119-14098
90178-14006
90179-10180
90467-07220
90951-01001
90951-01002
Linked diagrams
5201
5302
