ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2T430 |
ZRT265..CBU |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2T430 |
ZRT265..CBU |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12080 |
NZT260,ZRT26#..CBU |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12080 |
NZT260,ZRT26#..CBU |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47010 |
NZT260,ZRT26#..CBU |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
NZT260,ZRT26#..CBU |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-63020 |
NZT260,ZRT26#..CBU |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-63020 |
NZT260,ZRT26#..CBU |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-12110 |
NZT260,ZRT26#..CBU |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-12110 |
NZT260,ZRT26#..CBU |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80376 |
ZRT265..CBU ﾏｰｸ 48510−20A50 |
1 | ||
| 48510-80520 |
ZRT265..CBU ﾏｰｸ 48510−20A80 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80139 |
ZRT265..CBU ﾏｰｸ 48520−20A50 |
1 | ||
| 48520-80250 |
ZRT265..CBU ﾏｰｸ 48520−20A80 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-20500 |
NZT260,ZRT26#..CBU |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
NZT260,ZRT26#..CBU |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
NZT260,ZRT26#..CBU |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-20500 |
NZT260,ZRT26#..CBU |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
NZT260,ZRT26#..CBU |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
NZT260,ZRT26#..CBU |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
NZT260,ZRT26#..CBU |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
NZT260,ZRT26#..CBU |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47010 |
NZT260,ZRT26#..CBU |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-2B110 |
ZRT265..CBU |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20290 |
NZT260,ZRT26#..CBU |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
NZT260,ZRT26#..CBU |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
NZT260,ZRT26#..CBU |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47010 |
NZT260,ZRT26#..CBU |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-20120 |
NZT260,ZRT26#..CBU |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-20120 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-08010 | ||||

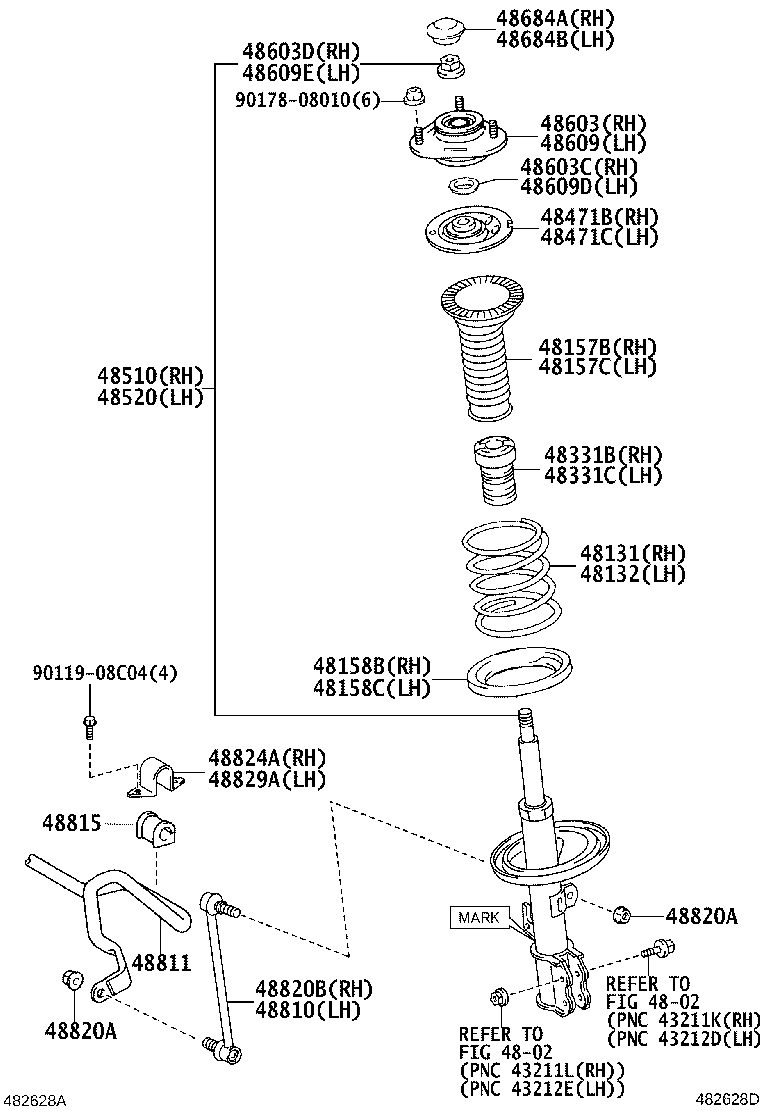

| Linked diagrams | ||||
| 4802 | ||||
