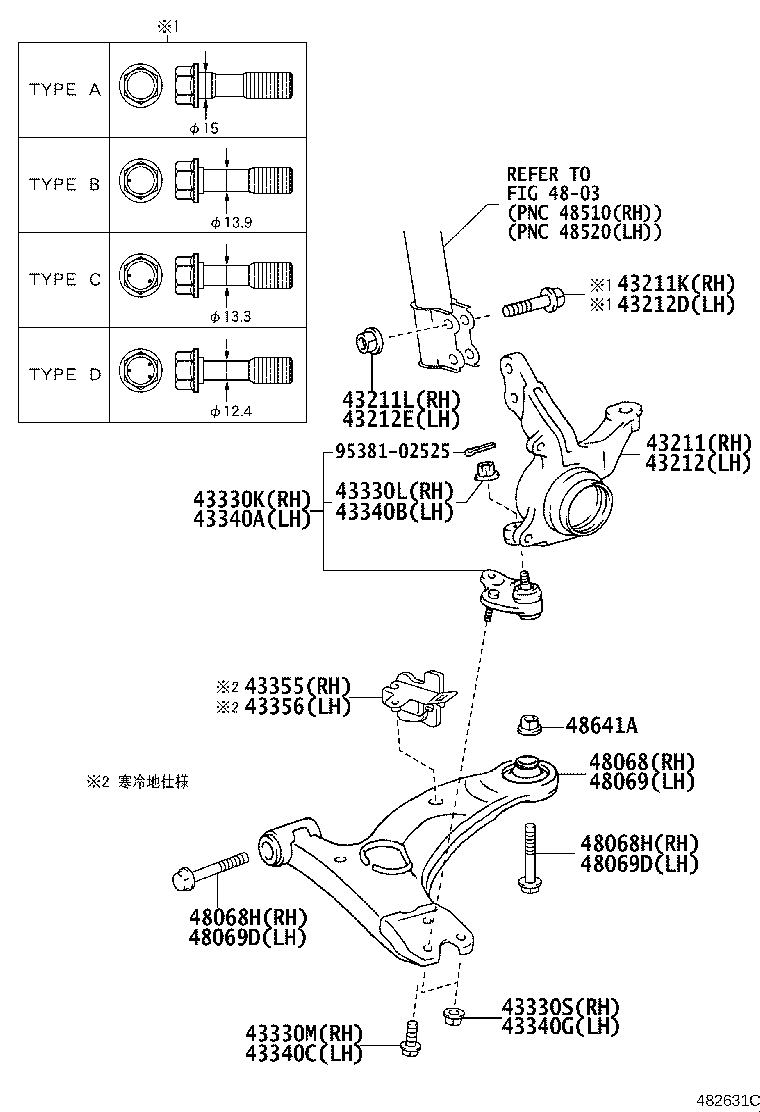

ZRT265-AEXEK (2007)
Toyota Premio/Allion
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-12470 |
ZRT265..CBU |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90109-15003 |
NZT260,ZRT26#..CBU 外径=13.3,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90901-05001 |
NZT260,ZRT26#..CBU 外径=15.0,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90109-15002 |
NZT260,ZRT26#..CBU 外径=13.9,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90109-15004 |
NZT260,ZRT26#..CBU 外径=12.4,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15004 |
NZT260,ZRT26#..CBU |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-12420 |
ZRT265..CBU |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90109-15003 |
NZT260,ZRT26#..CBU 外径=13.3,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90109-15002 |
NZT260,ZRT26#..CBU 外径=13.9,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90109-15004 |
NZT260,ZRT26#..CBU 外径=12.4,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 90901-05001 |
NZT260,ZRT26#..CBU 外径=15.0,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15004 |
NZT260,ZRT26#..CBU |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19115 |
NZT260,ZRT26#..CBU |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
NZT260,ZRT26#..CBU |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12336 |
NZT260,ZRT26#..CBU |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-12015 |
NZT260,ZRT26#..CBU |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-19115 |
NZT260,ZRT26#..CBU |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
NZT260,ZRT26#..CBU |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12336 |
NZT260,ZRT26#..CBU |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-12015 |
NZT260,ZRT26#..CBU |
2 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-20040 |
ZRT265..CBU 寒冷地仕様 |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43356-20020 |
ZRT265..CBU 寒冷地仕様 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-47040 |
NZT260,ZRT26#..CBU |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14108 |
NZT260,ZRT26#..CBU |
2 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14108 |
NZT260,ZRT26#..CBU |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-47040 |
NZT260,ZRT26#..CBU |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14108 |
NZT260,ZRT26#..CBU |
2 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14108 |
NZT260,ZRT26#..CBU |
2 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90179-14068 |
NZT260,ZRT26#..CBU |
2 | ||
| Common parts | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
