ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

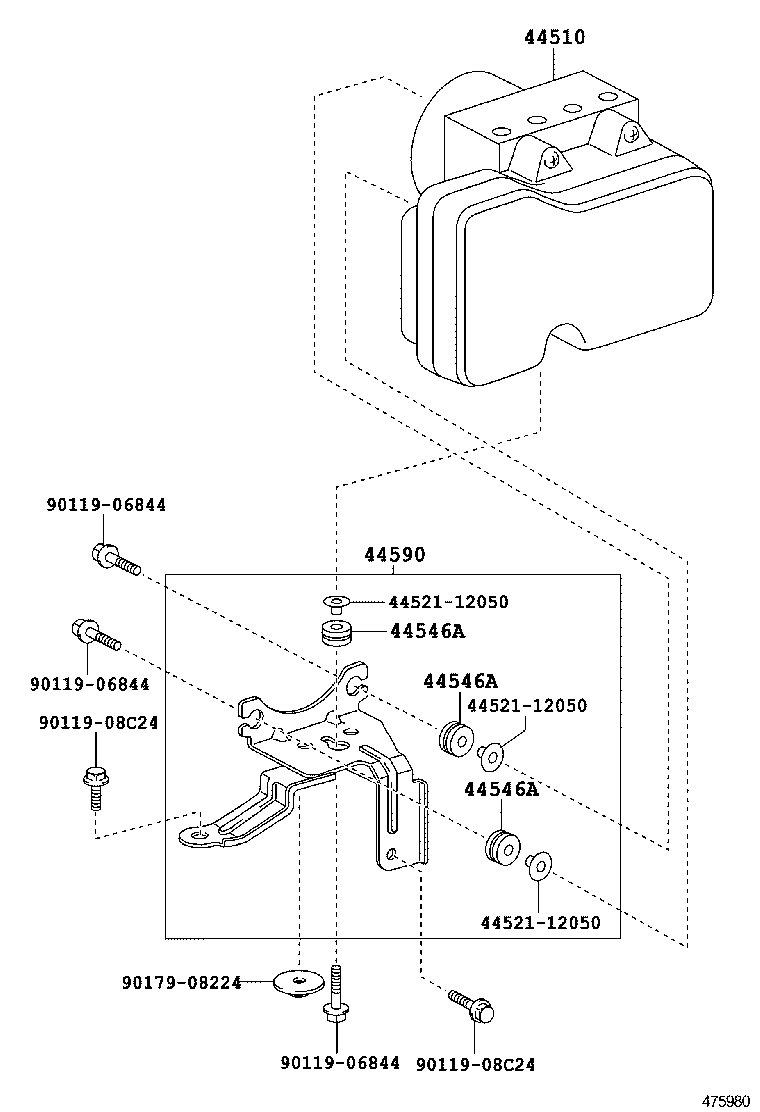

ILLUST NO. 2 OF 2(0705-1409)

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9011908C24 9011908C24 9017908224
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-20130

ZRT265..CBU

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NZT260,ZRT26#..CBU

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NZT260,ZRT26#..CBU

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NZT260,ZRT26#..CBU

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20070

NZT260,ZRT26#..CBU

 1
Common parts
44521-12050
90119-06844
90119-08C24
90179-08224

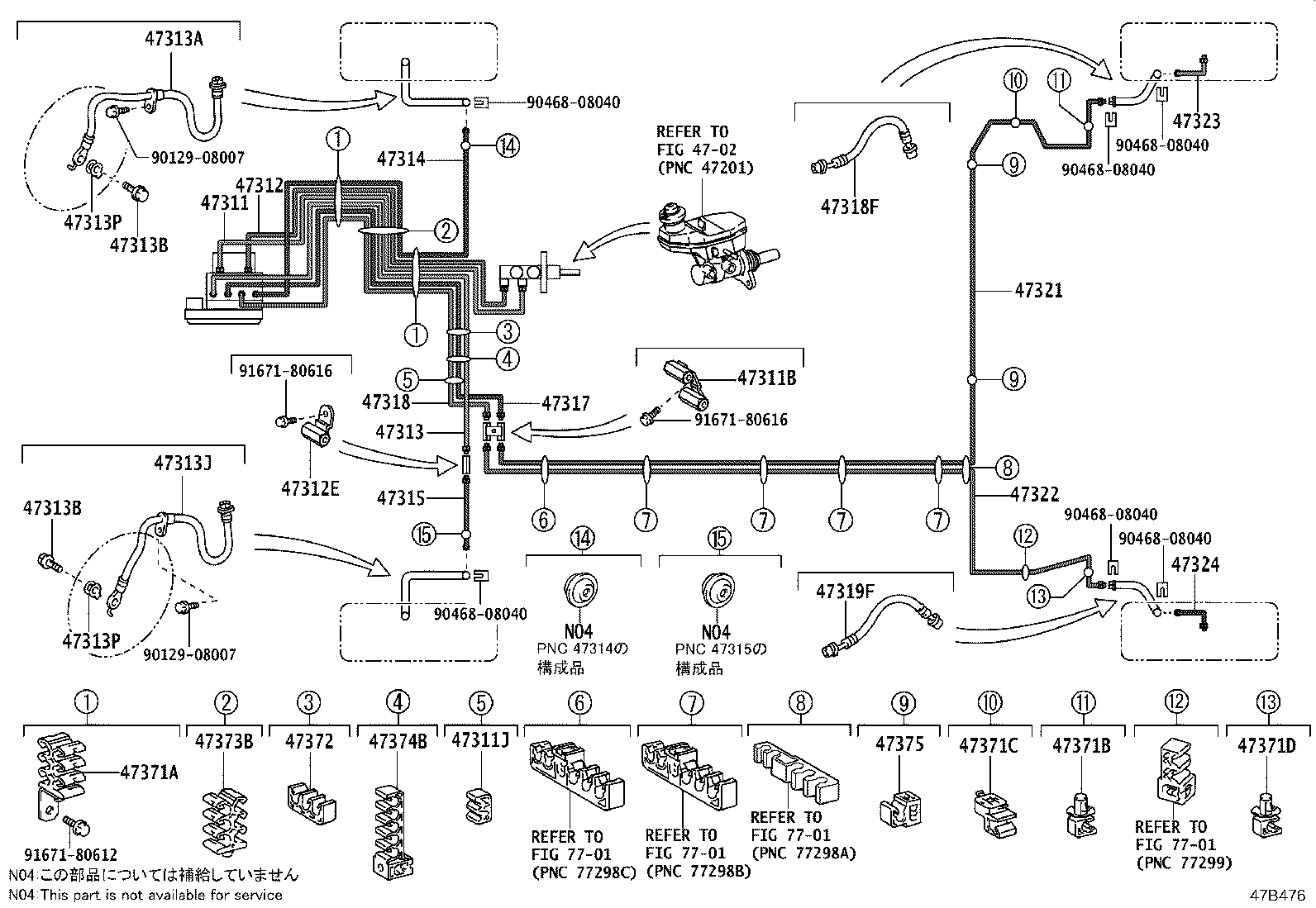

ILLUST NO. 1 OF 2(0705-1409)

Click highlighted areas on diagram

diagram 4702 47311 47311B 47311J 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47315 47317 47318 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47371D 47372 47373B 47374B 47375 7701 7701 7701 7701 9012908007 9012908007 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9167180612 9167180616 9167180616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-2B390

NZT260,ZRT26#..CBU

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NZT260,ZRT26#..CBU

 1
47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE)
90480-01621

NZT260,ZRT26#..CBU

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20430

NZT260,ZRT26#..CBU

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10272

NZT260,ZRT26#..CBU

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20A00

NZT260,ZRT26#..CBU

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E63

NZT260,ZRT26#..CBU

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NZT260,ZRT26#..CBU

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NZT260,ZRT26#..CBU

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02E64

NZT260,ZRT26#..CBU

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NZT260,ZRT26#..CBU

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NZT260,ZRT26#..CBU

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20810

NZT260,ZRT26#..CBU

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12610

NZT260,ZRT26#..CBU

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-20380

NZT260,ZRT26#..CBU

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-20430

NZT260,ZRT26#..CBU

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E89

ZRT265..CBU

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E89

ZRT265..CBU

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20480

ZRT265..CBU

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20580

ZRT265..CBU

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12280

ZRT265..CBU

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12240

ZRT265..CBU

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-12240

NZT260,ZRT26#..CBU

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D17

NZT260,ZRT26#..CBU

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-04032

NZT260,ZRT26#..CBU

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D17

NZT260,ZRT26#..CBU

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00857

NZT260,ZRT26#..CBU

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00880

NZT260,ZRT26#..CBU

 1
90949-01C51

NZT260,ZRT26#..CBU

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D28

NZT260,ZRT26#..CBU

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01C82

NZT260,ZRT26#..CBU

 2
Common parts
90129-08007
90468-08040
91671-80612
91671-80616
Linked diagrams
4702
7701
