ZRT265-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )ZRT265

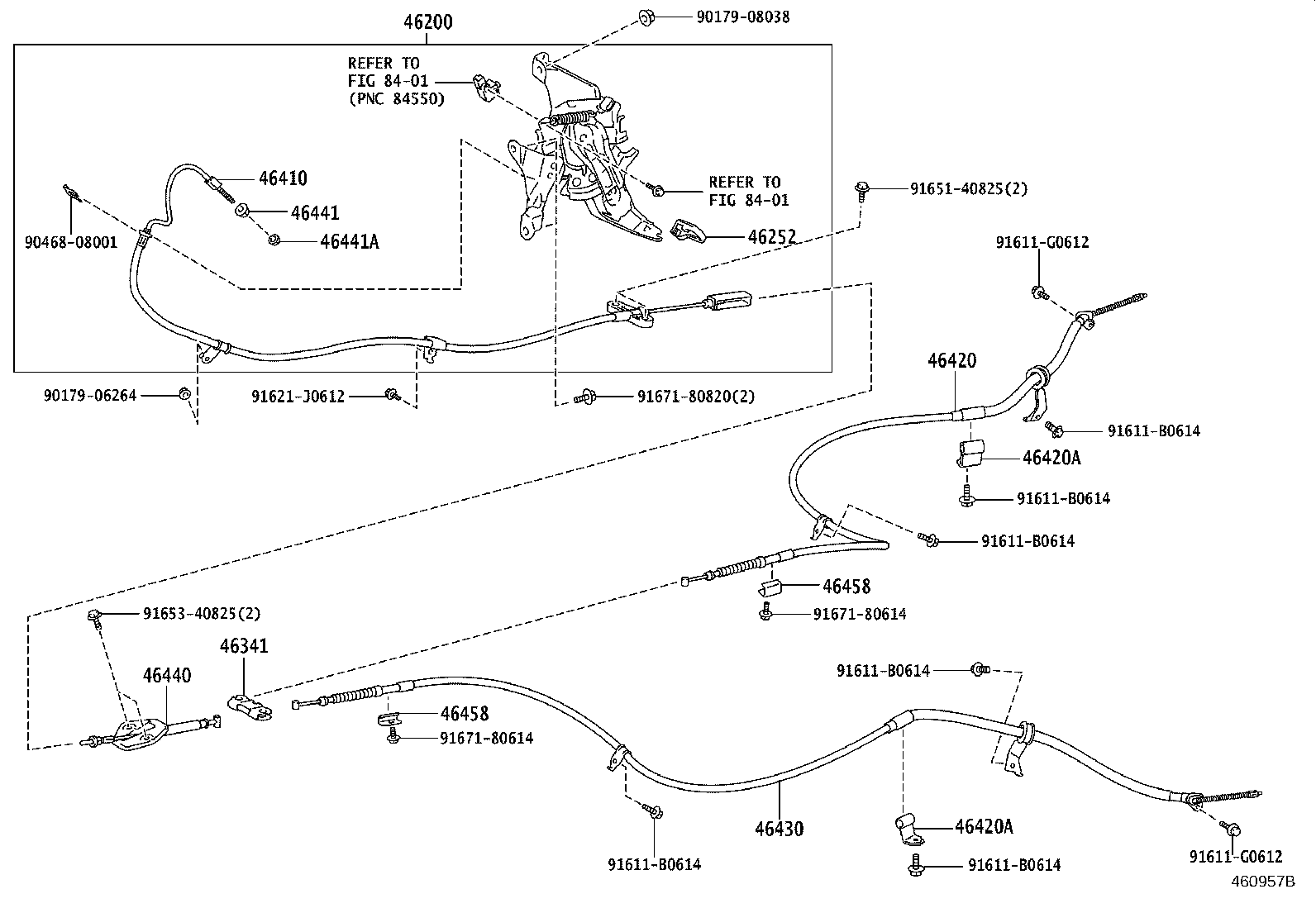

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-20050 |
NZT260,ZRT26#..CBU |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-22010 |
NZT260,ZRT26#..CBU |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
NZT260,ZRT26#..CBU |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-20470 |
NZT260,ZRT26#..CBU |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20670 |
ZRT265..CBU |
1 | ||
| 46420-20671 |
ZRT265..CBU |
1 | ||
| 46420-20672 |
ZRT265..CBU |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C31 |
ZRT265..CBU |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C31 |
ZRT265..CBU |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20671 |
ZRT265..CBU |
1 | ||
| 46430-20670 |
ZRT265..CBU |
1 | ||
| 46430-20672 |
ZRT265..CBU |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-21010 |
NZT260,ZRT26#..CBU |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
NZT260,ZRT26#..CBU |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NZT260,ZRT26#..CBU |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
NZT260,ZRT26#..CBU |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
NZT260,ZRT26#..CBU |
2 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 90179-08038 | ||||
| 90468-08001 | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||
| 91621-J0612 | ||||
| 91651-40825 | ||||
| 91653-40825 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
