ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ZRT265

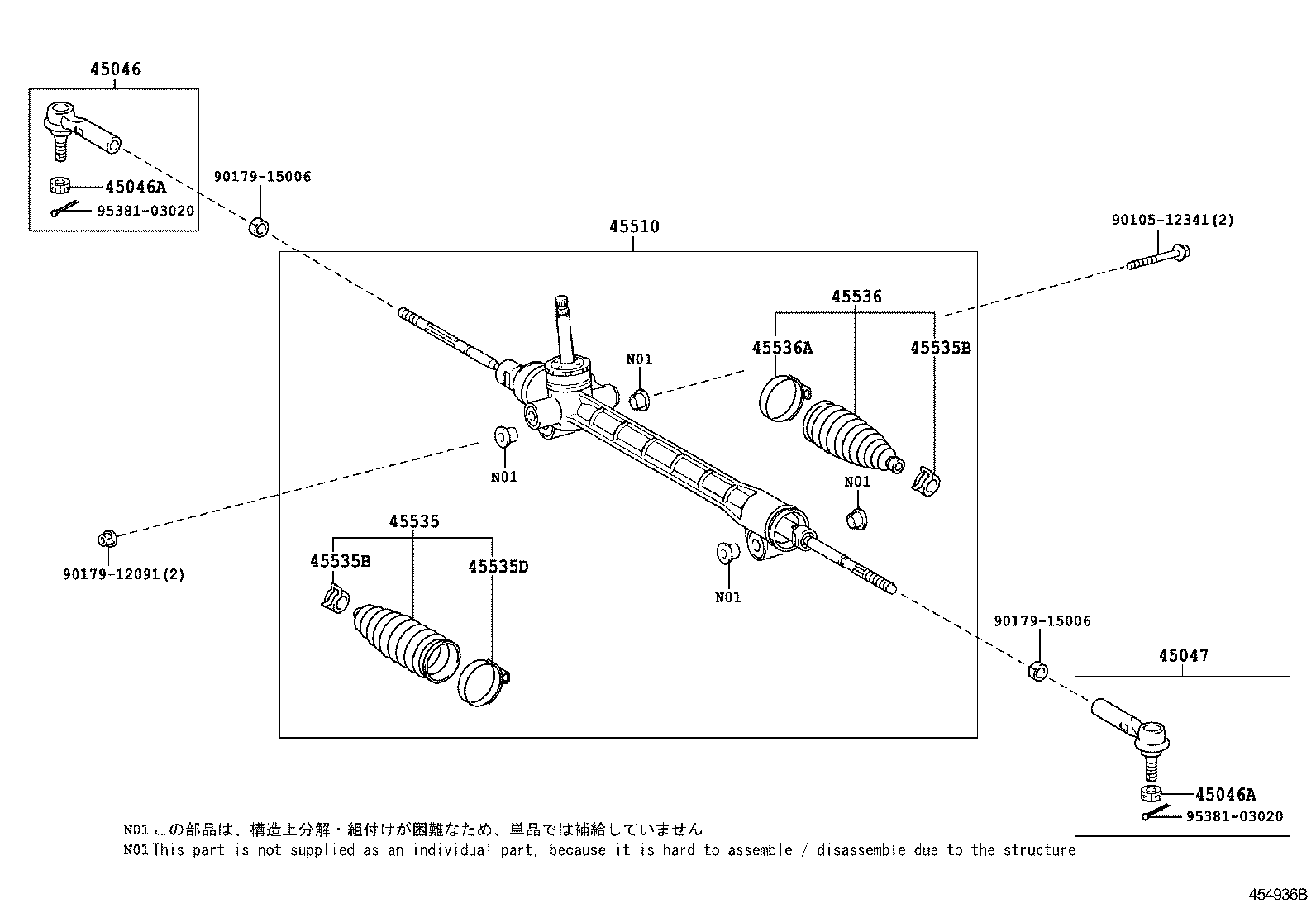

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 9010512341 9017912091 9017915006 9017915006 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-59115

ZRT265..CBU

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NZT260,ZRT26#..CBU

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NZT260,ZRT26#..CBU

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-59115

ZRT265..CBU

 1
45510 - GEAR ASSY, STEERING
45510-20110

ZRT265..CBU

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59025

ZRT265..CBU

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

NZT260,ZRT26#..CBU

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

NZT260,ZRT26#..CBU

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-52010

NZT260,ZRT26#..CBU

 1
45536 - BOOT, STEERING RACK, NO.2
45535-59025

ZRT265..CBU

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-52010

NZT260,ZRT26#..CBU

 1
Common parts
90105-12341
90179-12091
90179-15006
95381-03020
