ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1606)

Click highlighted areas on diagram

4ﾎﾝｽﾎﾟｰｸ

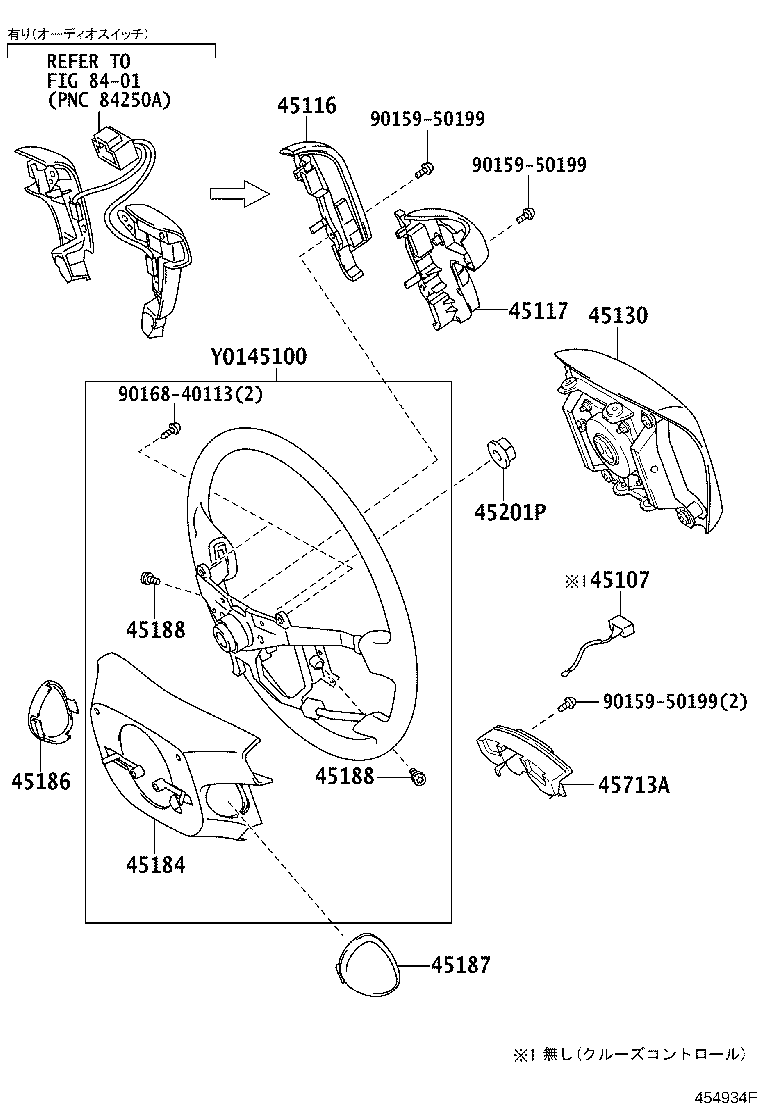

diagram 45100 45107 45116 45117 45130 45184 45186 45187 45188 45188 45201P 45713A 8401 9015950199 9015950199 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-20A30E1

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM4#

 1
45100-12D00B0

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#

 1
45100-12D40E0

ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ASH BROWN,TRIM4#

 1
45100-12D00E0

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,L,Gﾊﾟｯｹｰｼﾞ,ASH BROWN,TRIM4#

 1
45100-20A30E4

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,EXﾊﾟｯｹｰｼﾞ,ASH BROWN & DK.RED,TRIM40

 1
45100-12D40B0

ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#

 1
45100-20A30E1

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“L package･Prime Selectionh *(P),GREGE,TRIM40

 1
45100-20A30E4

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“L package･Prime Selectionh *(P),ASH BROWN & DK.RED,TRIM40

 1
45100-20A30E1

ZRT260,265..PRM..CBU

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,EXﾊﾟｯｹｰｼﾞ,GREGE,TRIM40

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-28030

NZT260,ZRT260,265..CBU

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-48010B0

NZT260,ZRT26#..CBU

DK.GRAY,TRIM1#

 1
45116-48010E1

NZT260,ZRT26#..CBU

ASH BROWN,TRIM4#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-48010B0

NZT260,ZRT26#..CBU

DK.GRAY,TRIM1#

 1
45117-48010E1

NZT260,ZRT26#..CBU

ASH BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-12B60E0

ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU

ASH BROWN,TRIM4#

 1
45130-12B60B0

ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU

DK.GRAY,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-33100B0

NZT260,ZRT26#..CBU

DK.GRAY,TRIM1#

 1
45184-33100E0

NZT260,ZRT26#..CBU

ASH BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33070E0

ZRT260,265..CBU

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,ASH BROWN,TRIM4#

 1
45186-33070B0

ZRT260,265..CBU

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,DK.GRAY,TRIM1#

 1
45186-33080B0

NZT260,ZRT260,265..CBU

DK.GRAY,TRIM1#

 1
45186-33080E0

NZT260,ZRT260,265..CBU

ASH BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33050E0

ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU

ASH BROWN,TRIM4#

 1
45187-33050B0

ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NZT260,ZRT26#..CBU

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NZT260,ZRT26#..CBU

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NZT260,ZRT26#..CBU

 1
45713A - DAMPER, STEERING SHAKE
45713-28050

NZT260,ZRT26#..CBU

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
