Toyota Premio/allion ZRT265 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
JP
PREMIO/ALLION
ZRT265-AEXEK (2007)
4501 - STEERING COLUMN & SHAFT

ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010

Engine 2ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0705- )

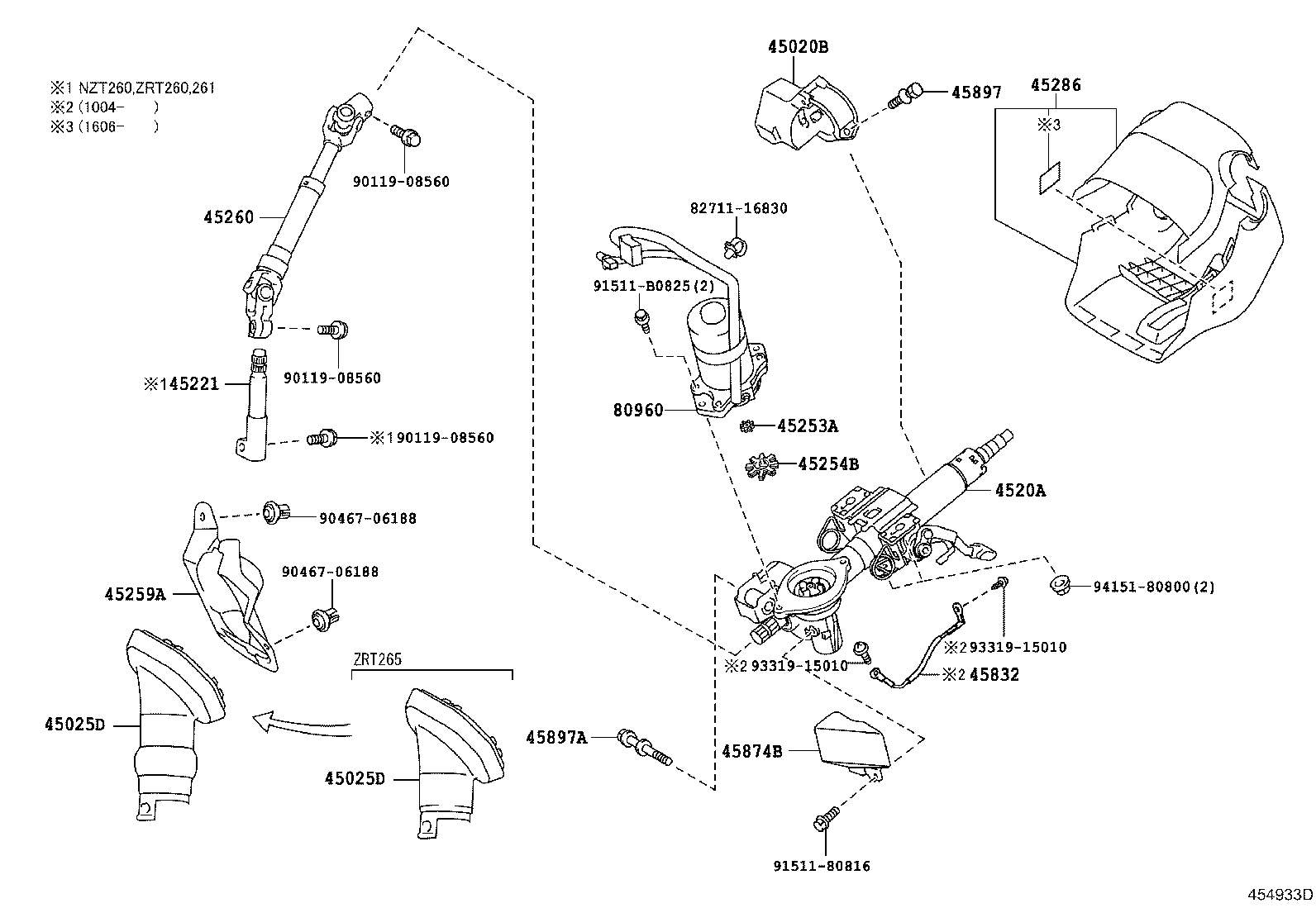

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-42130	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	12/2007 - 04/2010	1
45020-42150	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12320	ZRT265..CBU	05/2007 - 10/2007	1
45025-12321	ZRT265..CBU	11/2007 - 04/2010	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12320	ZRT265..CBU	05/2007 - 10/2007	1
45025-12321	ZRT265..CBU	11/2007 - 04/2010	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-12010	NZT260,ZRT26#..CBU	01/2008 - 04/2010	1
4520A-12010	NZT260,ZRT26#..CBU	09/2007 - 12/2007	1
4520A-12020	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	12/2007 - 01/2008	1
4520A-12020	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	01/2008 - 04/2010	1
4520A-12010	NZT260,ZRT26#..CBU	05/2007 - 08/2007	1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12090	ZRT265..CBU	05/2007 - 04/2010	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-20540	ZRT265..CBU	05/2007 - 04/2010	1
45286 - COVER, STEERING COLUMN
45286-12983E0	ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4#	05/2007 - 04/2010	1
45286-12982B0	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C),DK.GRAY,TRIM1#	12/2007 - 04/2010	1
45286-12983B0	NZT260,ZRT26#..CBU DK.GRAY,TRIM1#	05/2007 - 04/2010	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-12090	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
80960 - MOTOR ASSY, POWER STEERING
80960-12150	NZT260,ZRT26#..CBU	02/2008 - 04/2010	1
80960-12100	NZT260,ZRT26#..CBU	05/2007 - 01/2008	1
Common parts
82711-16830
90119-08560
90467-06188
91511-80816
91511-B0825
93319-15010
94151-80800

(0712- )NZT260,ZRT260,265

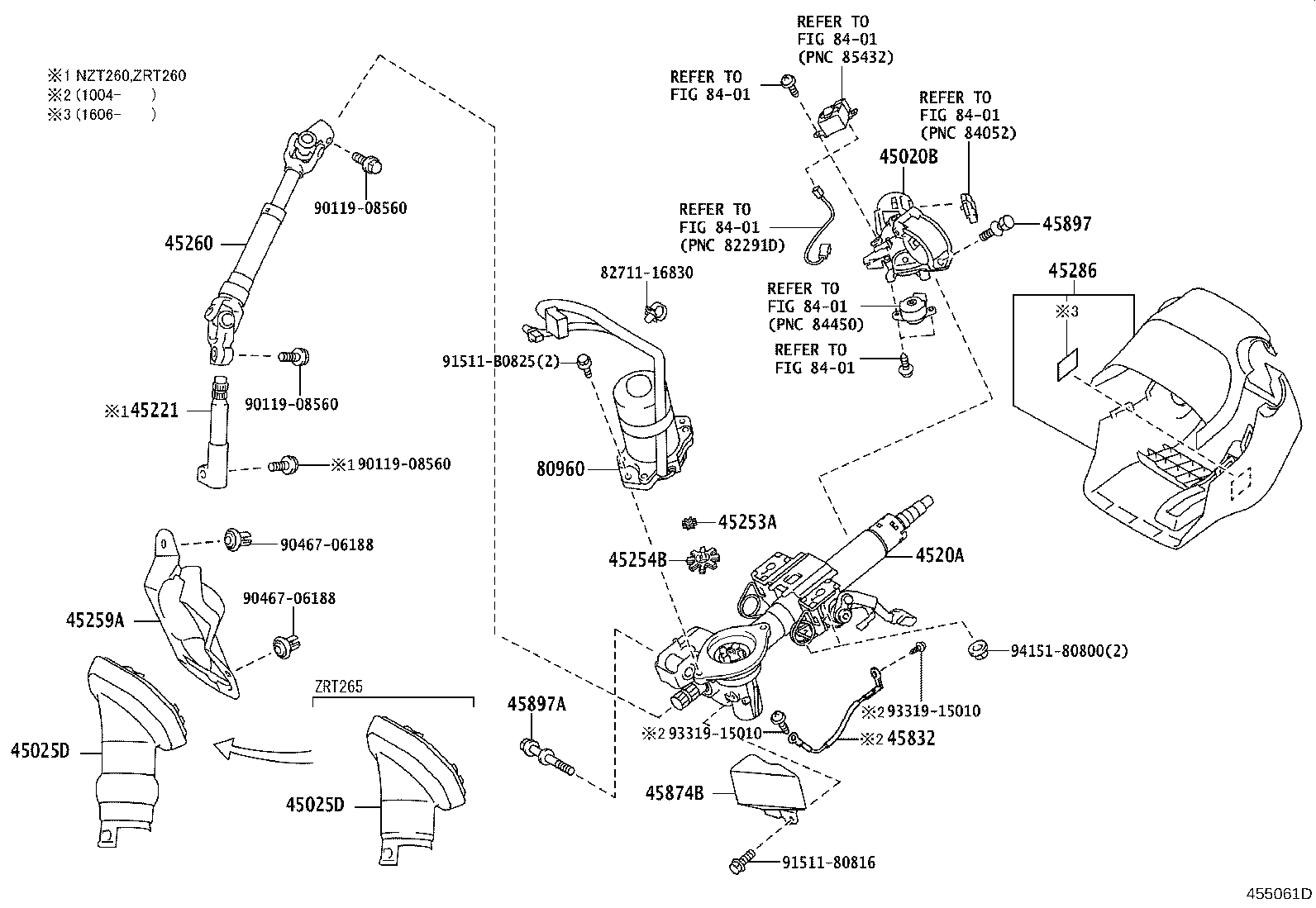

Click highlighted areas on diagram

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-42130	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	12/2007 - 04/2010	1
45020-42150	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12320	ZRT265..CBU	05/2007 - 10/2007	1
45025-12321	ZRT265..CBU	11/2007 - 04/2010	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12320	ZRT265..CBU	05/2007 - 10/2007	1
45025-12321	ZRT265..CBU	11/2007 - 04/2010	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-12010	NZT260,ZRT26#..CBU	01/2008 - 04/2010	1
4520A-12010	NZT260,ZRT26#..CBU	09/2007 - 12/2007	1
4520A-12020	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	12/2007 - 01/2008	1
4520A-12020	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	01/2008 - 04/2010	1
4520A-12010	NZT260,ZRT26#..CBU	05/2007 - 08/2007	1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12090	ZRT265..CBU	05/2007 - 04/2010	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-20540	ZRT265..CBU	05/2007 - 04/2010	1
45286 - COVER, STEERING COLUMN
45286-12983E0	ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4#	05/2007 - 04/2010	1
45286-12982B0	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C),DK.GRAY,TRIM1#	12/2007 - 04/2010	1
45286-12983B0	NZT260,ZRT26#..CBU DK.GRAY,TRIM1#	05/2007 - 04/2010	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-12090	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
80960 - MOTOR ASSY, POWER STEERING
80960-12150	NZT260,ZRT26#..CBU	02/2008 - 04/2010	1
80960-12100	NZT260,ZRT26#..CBU	05/2007 - 01/2008	1
Common parts
82711-16830
90119-08560
90467-06188
91511-80816
91511-B0825
93319-15010
94151-80800
Linked diagrams
8401

ZRT265-AEXEK (2007)

(0705- )

(0712- )NZT260,ZRT260,265
