ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

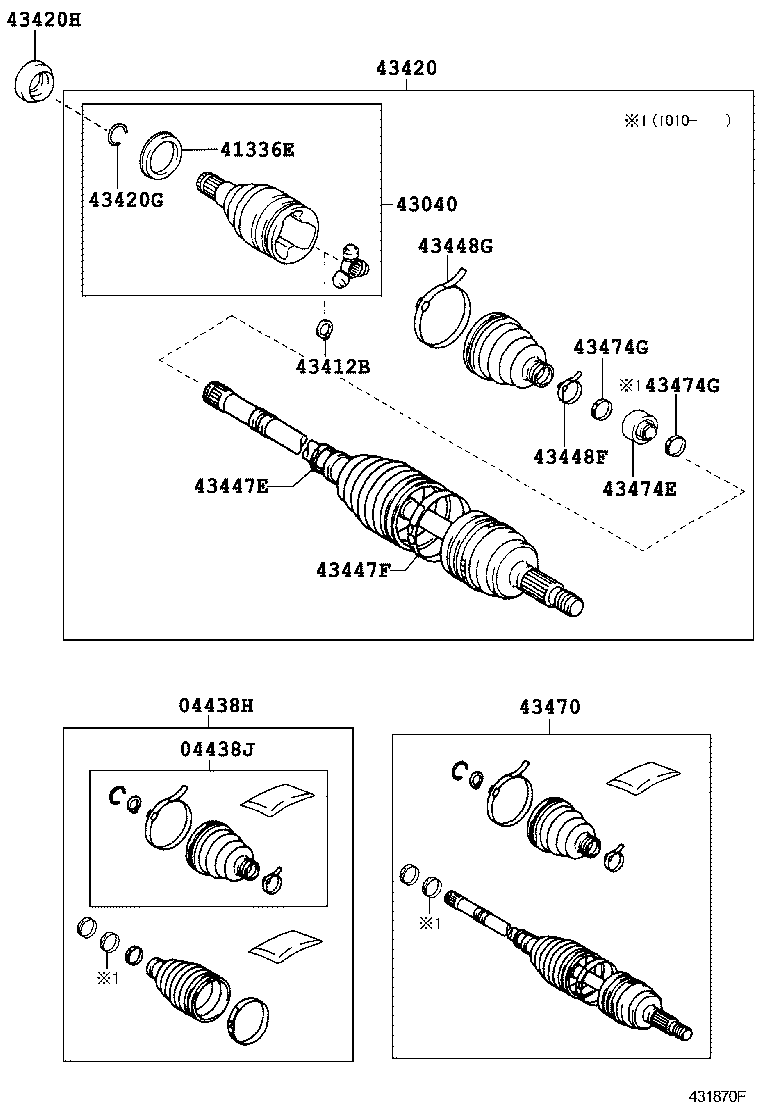

ILLUST NO. 2 OF 2(0705- )NZT260,ZRT260,265

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-12540

ZRT260,265..CBU

 1
04428-12740

ZRT260,265..CBU

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-12310

ZRT260,265..CBU

 1
04438-12A00

ZRT260,265..CBU

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060

ZRT260,265..CBU

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12120

ZRT260,265..CBU

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

ZRT260,265..CBU

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12750

ZRT265..CBU

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

ZRT260,265..CBU

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35054

ZRT260,265..CBU

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230

ZRT260,265..CBU

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240

ZRT260,265..CBU

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

ZRT260,265..CBU

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

ZRT260,265..CBU

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80146

ZRT265..CBU

 1
43470-80312

ZRT265..CBU

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12200

ZRT260,265..CBU

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NZT260,ZRT260,265..CBU

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NZT260,ZRT260,265..CBU

 1

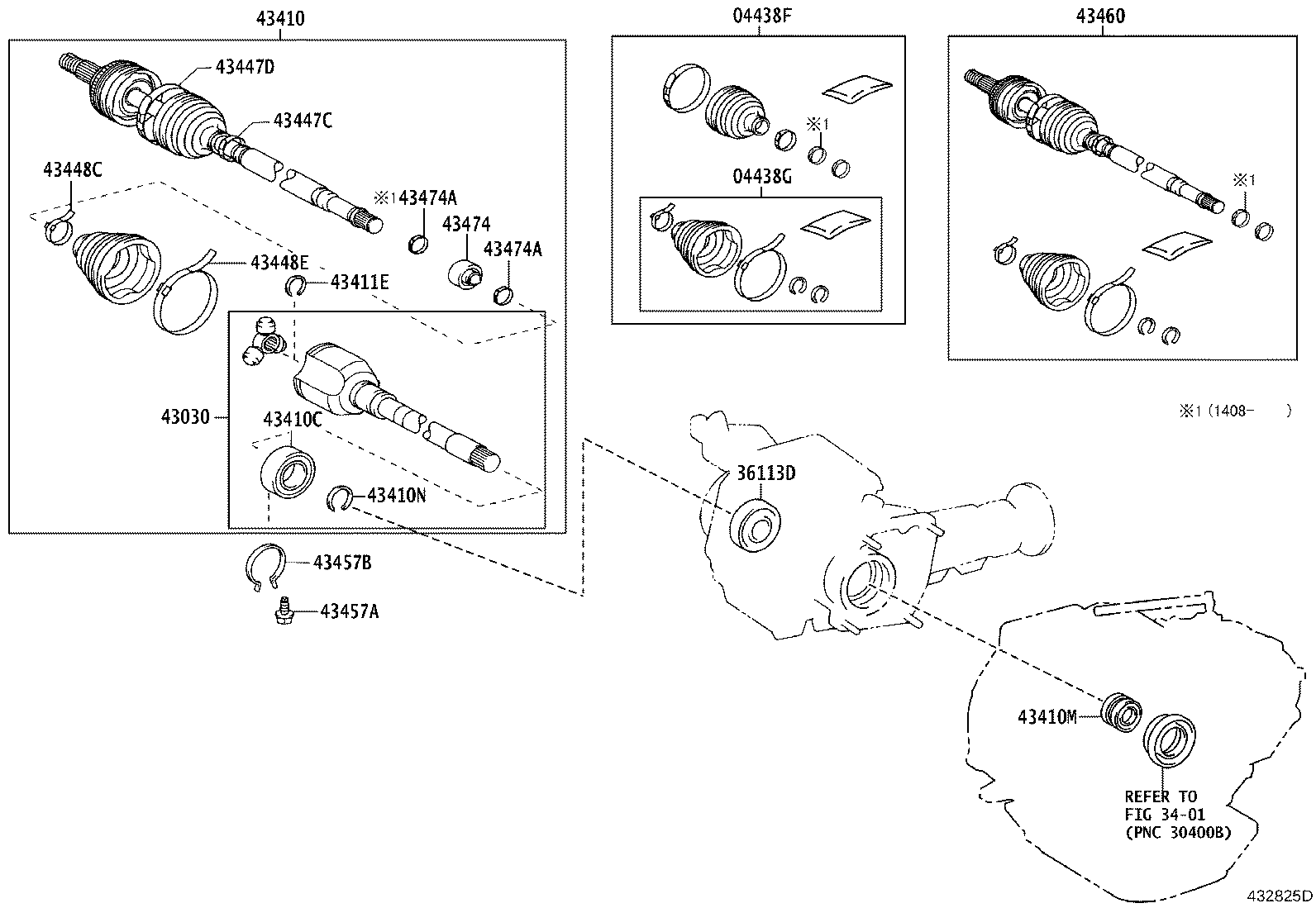

ILLUST NO. 1 OF 2(0705- )ZRT265

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 3401 36113D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457A 43457B 43460 43474 43474A 43474A
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-12540

ZRT260,265..CBU

 1
04427-12760

ZRT265..CBU

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12310

ZRT260,265..CBU

 1
04437-12410

ZRT265..CBU

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006

ZRT265..CBU

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-12140

ZRT265..CBU

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12810

ZRT265..CBU

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

ZRT265..CBU

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

ZRT265..CBU

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ZRT265..CBU

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

ZRT260,265..CBU

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230

ZRT260,265..CBU

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240

ZRT260,265..CBU

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

ZRT260,265..CBU

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

ZRT260,265..CBU

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10952

ZRT265..CBU

*10−1.25PX29―14.8

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

ZRT265..CBU

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-80083

ZRT265..CBU

 1
43460-80149

ZRT265..CBU

 1
43474 - DAMPER, DRIVE SHAFT
43474-12160

ZRT265..CBU

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

NZT260,ZRT26#..CBU

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

NZT260,ZRT26#..CBU

 1
