ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

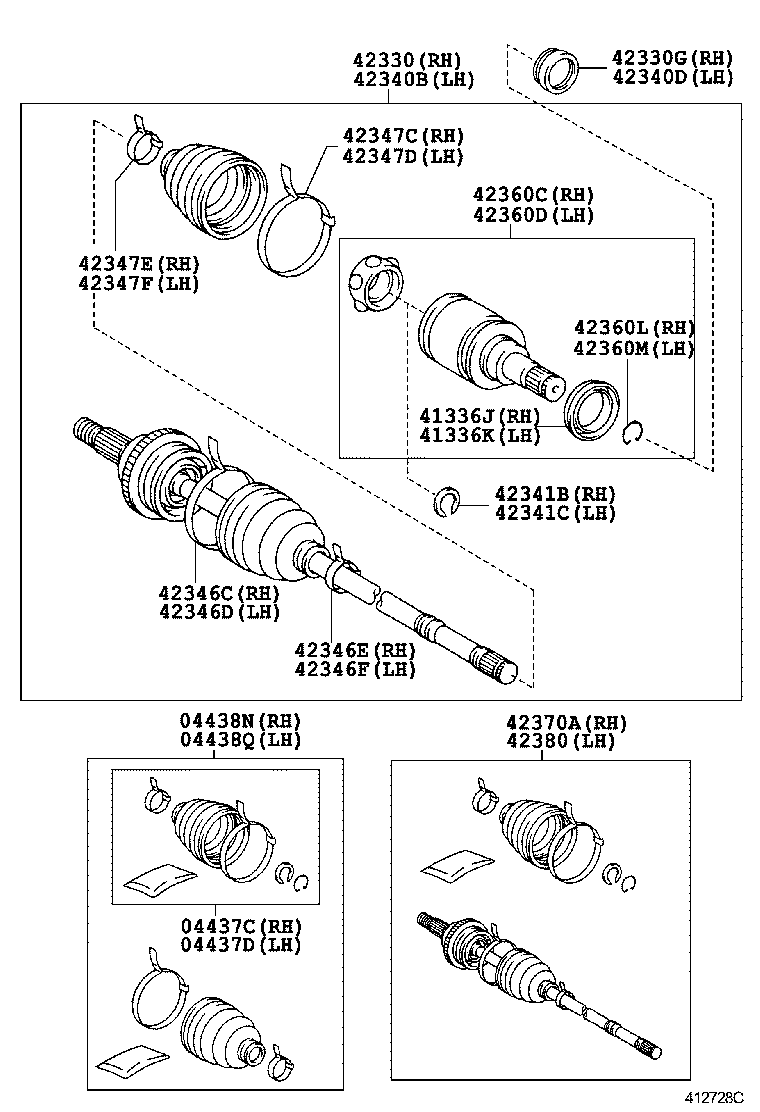

ILLUST NO. 2 OF 2(0705- )ZRT265

Click highlighted areas on diagram

diagram 04437C 04437D 04438N 04438Q 41336J 41336K 42330 42330G 42340B 42340D 42341B 42341C 42346C 42346D 42346E 42346F 42347C 42347D 42347E 42347F 42360C 42360D 42360L 42360M 42370A 42380
Part # Description Qty Price
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04439-12010

ZRT265..CBU

 1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04439-12010

ZRT265..CBU

 1
04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH
04429-12020

ZRT265..CBU

 1
04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH
04429-12020

ZRT265..CBU

 1
41336J - COVER, REAR DRIVE SHAFT DUST, RH
41336-33010

ZRT265..CBU

 1
41336K - COVER, REAR DRIVE SHAFT DUST, LH
41336-33010

ZRT265..CBU

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42340-32110

ZRT265..CBU

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-42033

ZRT265..CBU

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-32110

ZRT265..CBU

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-42033

ZRT265..CBU

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
90520-21020

ZRT265..CBU

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
90520-21020

ZRT265..CBU

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12120

ZRT265..CBU

内径=74.3

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12120

ZRT265..CBU

内径=74.3

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-12130

ZRT265..CBU

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-12130

ZRT265..CBU

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120

ZRT265..CBU

内径=74.3

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120

ZRT265..CBU

内径=74.3

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-12130

ZRT265..CBU

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-12130

ZRT265..CBU

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-33010

ZRT265..CBU

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-33010

ZRT265..CBU

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90521-26004

ZRT265..CBU

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90521-26004

ZRT265..CBU

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-19155

ZRT265..CBU

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42370-19155

ZRT265..CBU

 1

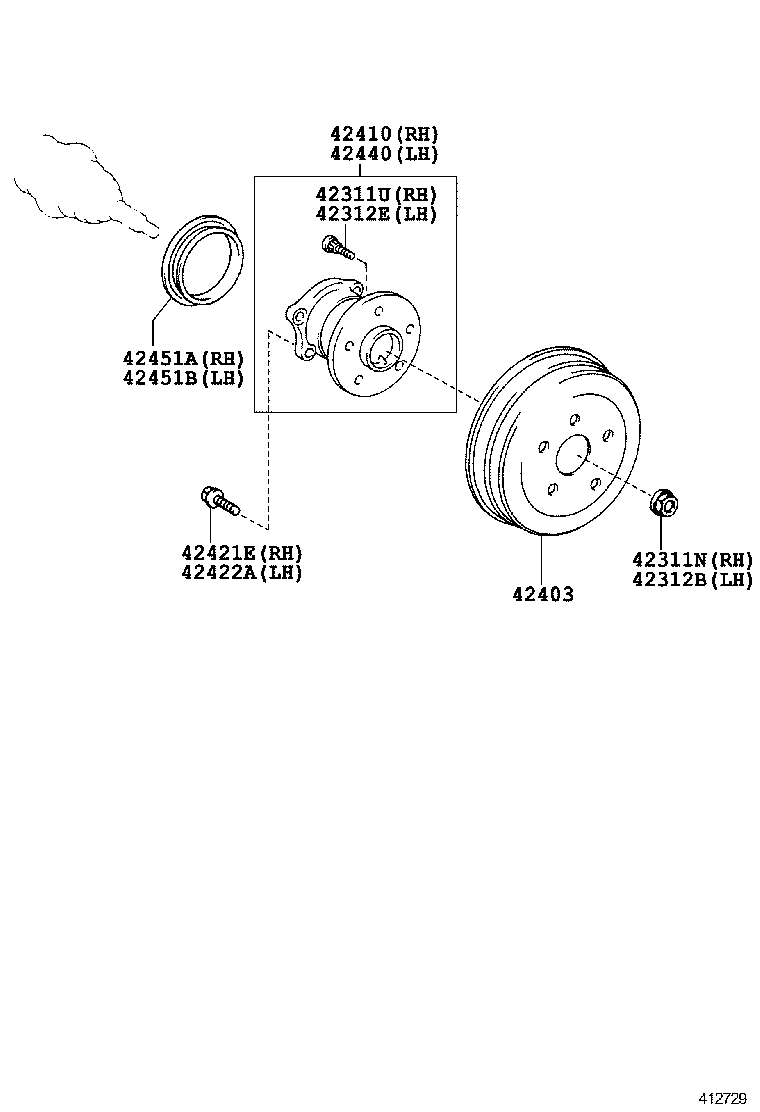

ILLUST NO. 1 OF 2(0705- )ZRT265

Click highlighted areas on diagram

diagram 42311N 42311U 42312B 42312E 42403 42410 42421E 42422A 42440 42451A 42451B
Part # Description Qty Price
42311N - NUT (FOR REAR AXLE SHAFT RH)
90177-22001

ZRT265..CBU

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

NZT260,ZRT26#..CBU

 5
42312B - NUT (FOR REAR AXLE SHAFT LH)
90177-22001

ZRT265..CBU

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

NZT260,ZRT26#..CBU

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-12300

ZRT261,265..CBU

 2
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-32100

ZRT265..CBU

 1
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10502

ZRT265..CBU

 4
90105-10449

ZRT265..CBU

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10449

ZRT265..CBU

 4
90105-10502

ZRT265..CBU

 4
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-32100

ZRT265..CBU

 1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451-32020

ZRT265..CBU

 1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42451-32020

ZRT265..CBU

 1
